Eagle
>>
1992
>>
Premier V6-182 3.0L SOHC
>>
Repair and Diagnosis
>>
Diagrams
>>
Connector Views
>>
Seat Belt Systems
>>
Seat Belt Control Module
Seat Belt Control Module

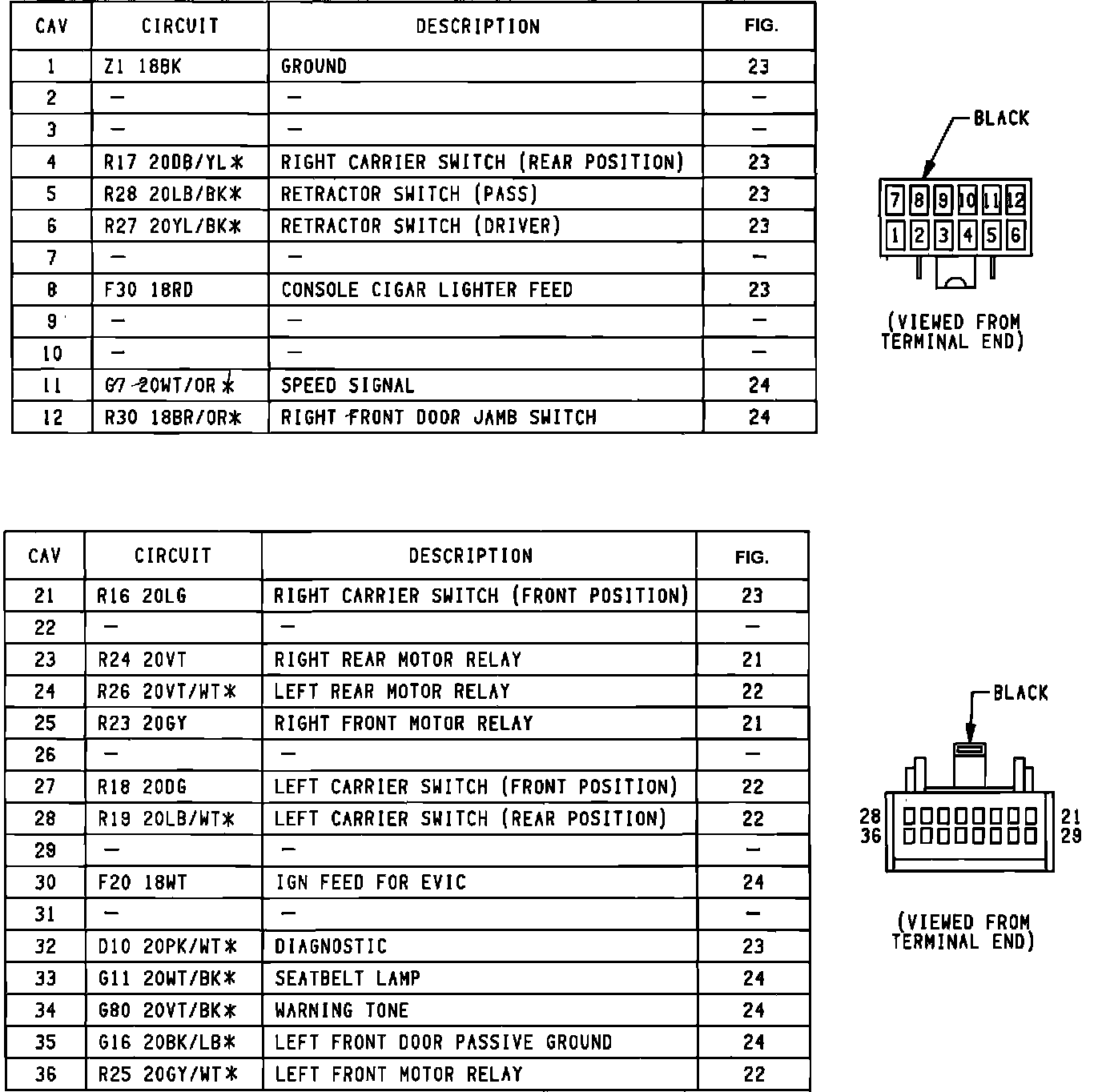

Fig. 75 Passive Restraint Module. Black 12 Way Connector:
Fig. 76 Passive Restraint Module. Black 16 Way Connector:
Passive Restrain Module Connectors:
