Home >> Eagle >> 1991 >> Talon AWD L4-1997cc 2.0L DOHC Turbo >> Repair and Diagnosis >> Transmission and Drivetrain >> Testing and Inspection >> Part 1 of 2

Part 1 of 2

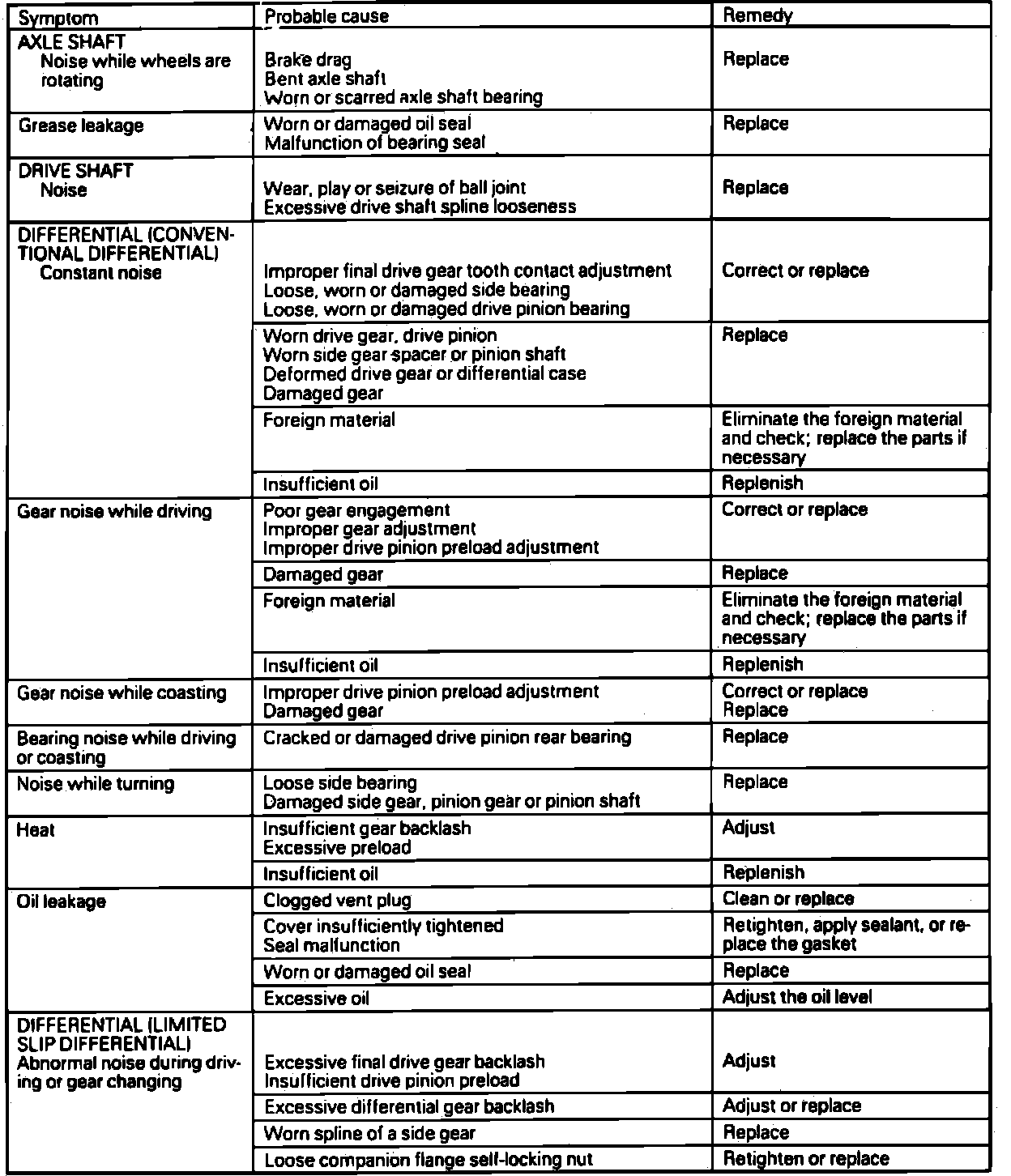

Fig. 1 All Wheel Drive (AWD) Troubleshooting Chart (Part 1 Of 2):
