Torque Convertor/Drive Plate - Bolt Installation
NO.: 21-05-93GROUP: Transmission
DATE: Mar. 5, 1993
SUBJECT:
Torque Convertor/Drive Plate Bolt Installation
MODELS:
1990-1993 (B2) Colt/Summit
1990-1991 (B3) Colt Vista
1990-1993 (B7) Stealth
1992-1993 (B8) Colt Vista/Summit Wagon
1990-1993 (BD) Laser/Talon
DISCUSSION:

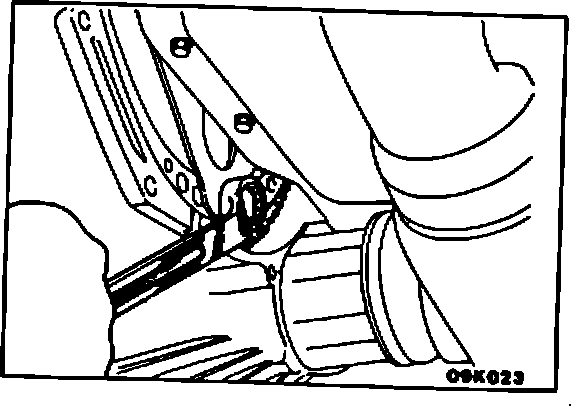

The procedure for installing the Drive Plate to Torque Convertor attaching bolts has been revised. During assembly, coat the bolts with a few drops of engine oil. This will assure that the listed torque in the Service Manual is achieved.
POLICY:
Information only
