Home >> Eagle >> 1991 >> Talon AWD L4-1997cc 2.0L DOHC Turbo >> Repair and Diagnosis >> Powertrain Management >> Computers and Control Systems >> Locations >> Non-Turbo

Non-Turbo

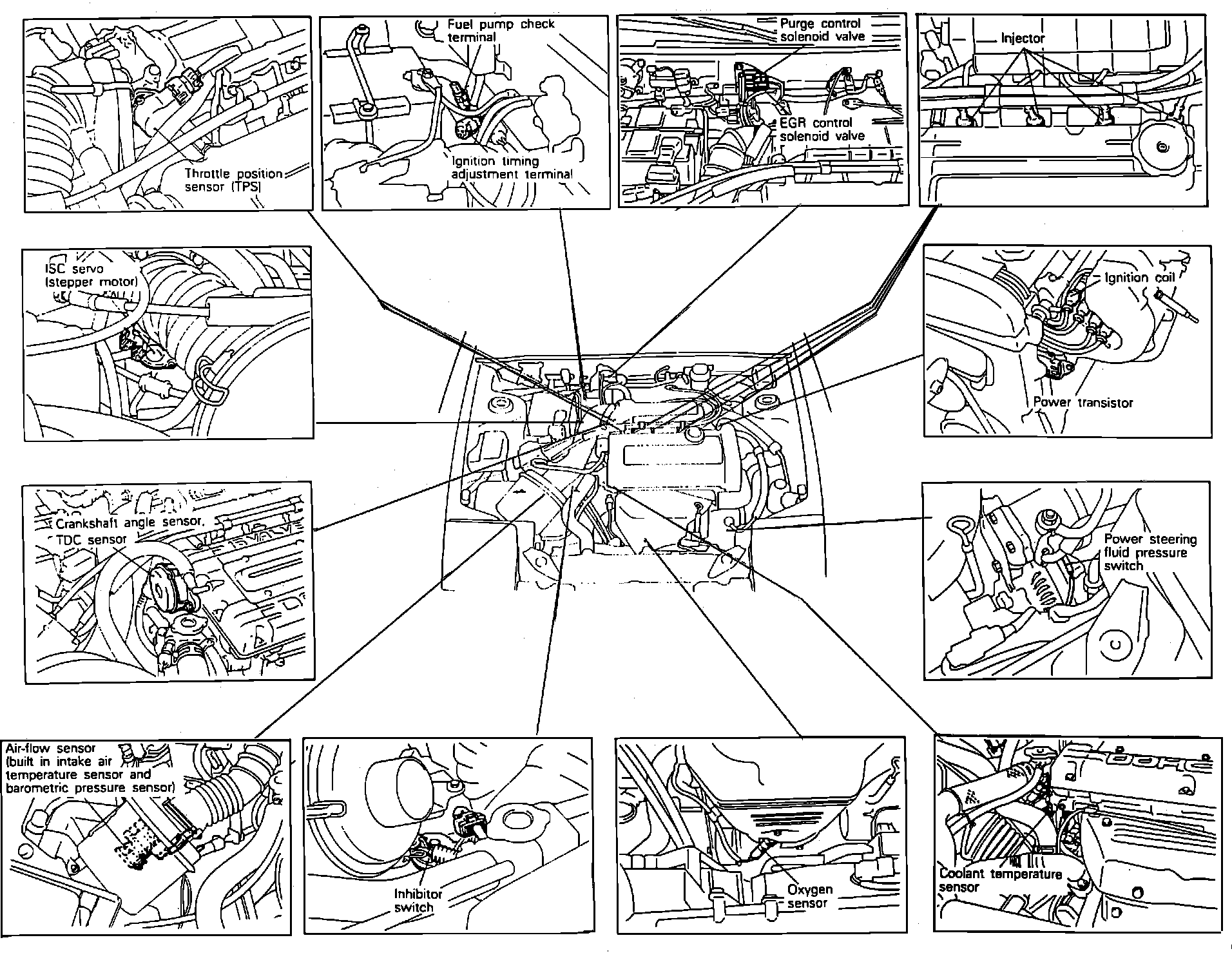

MPI System Components:



MPI Control System Components:
