Home >> Eagle >> 1991 >> Talon AWD L4-1997cc 2.0L DOHC Turbo >> Repair and Diagnosis >> Lighting and Horns >> Headlamp >> Diagrams >> Electrical Diagrams >> Without Theft Alarm & Daytime Running Lights

Without Theft Alarm & Daytime Running Lights

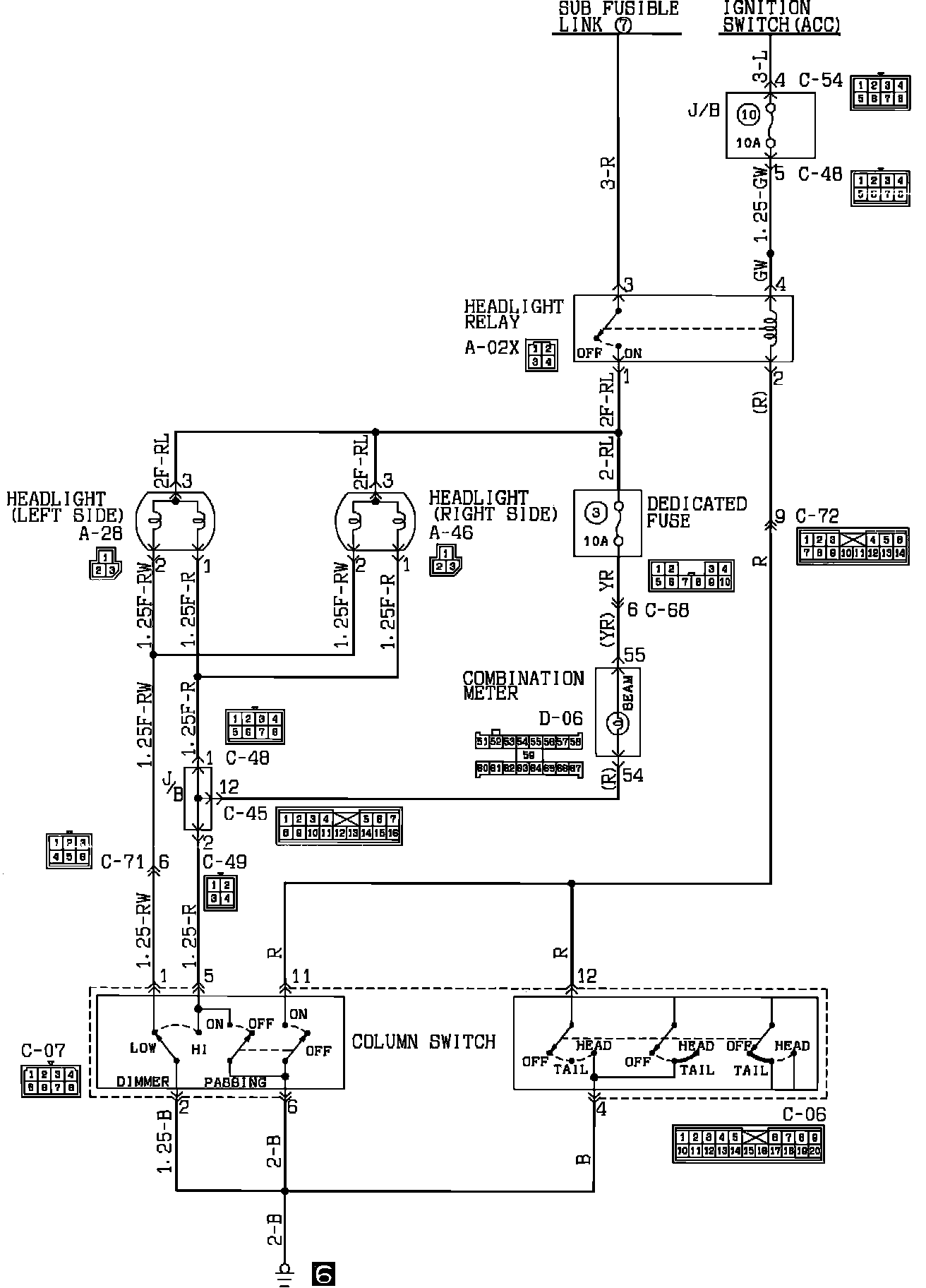

Headlamp (Less Theft-Alarm And Daytime Running Light):
