FREE REPAIR MANUALS & LABOR GUIDES 1982-2013 Vehicles
Courtesy of Operation CHARM
:
Car repair manuals for everyone.
Home
>>
Eagle
>>
1991
>>
Talon AWD L4-1997cc 2.0L DOHC Turbo
>>
Repair and Diagnosis
>>
Lighting and Horns
>>
Headlamp
>>
Diagrams
>>
Electrical Diagrams
>>
With Theft Alarm & Daytime Running Lights
With Theft Alarm & Daytime Running Lights

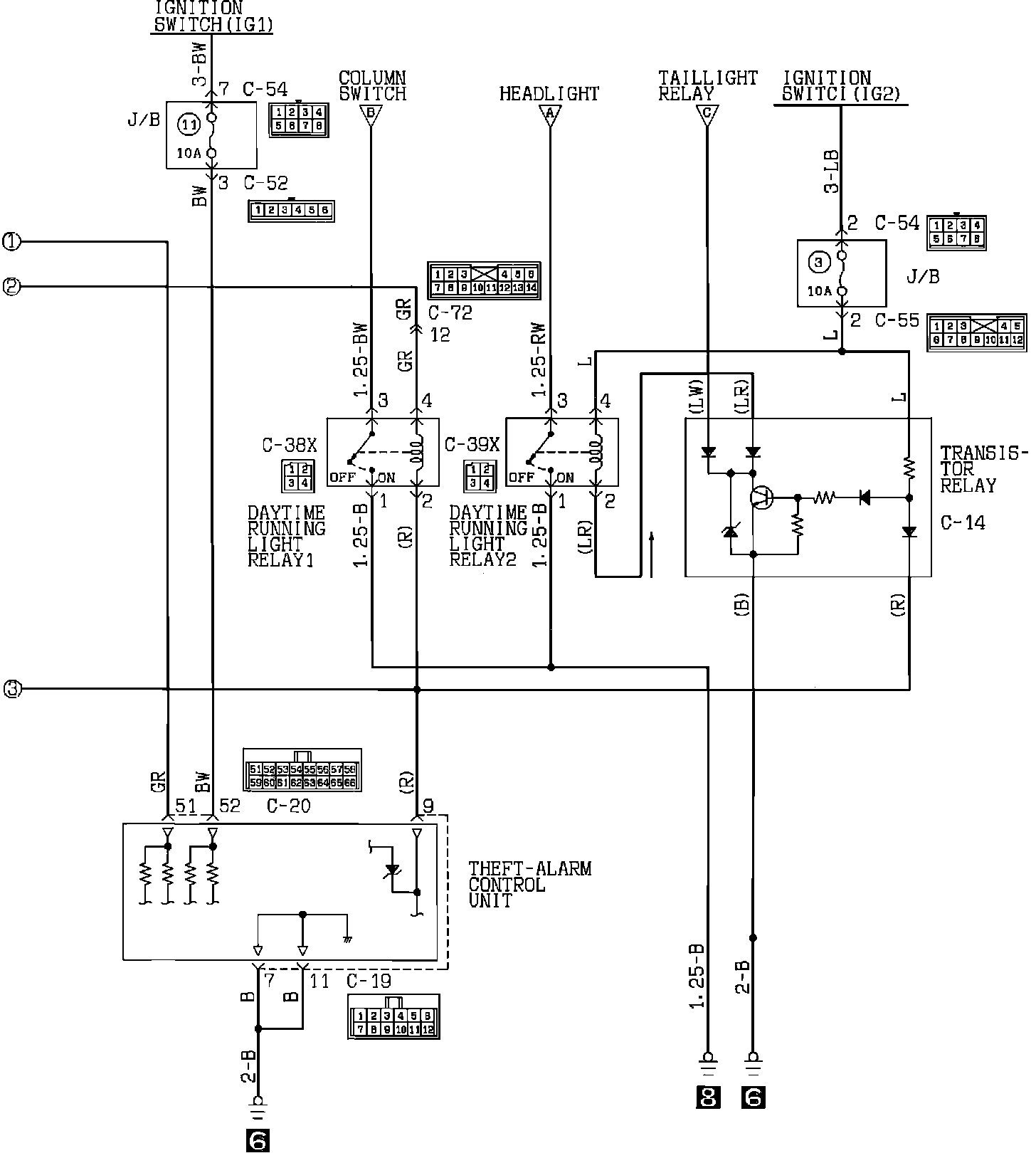

Headlamp (With Theft-Alarm And Daytime Running Light):

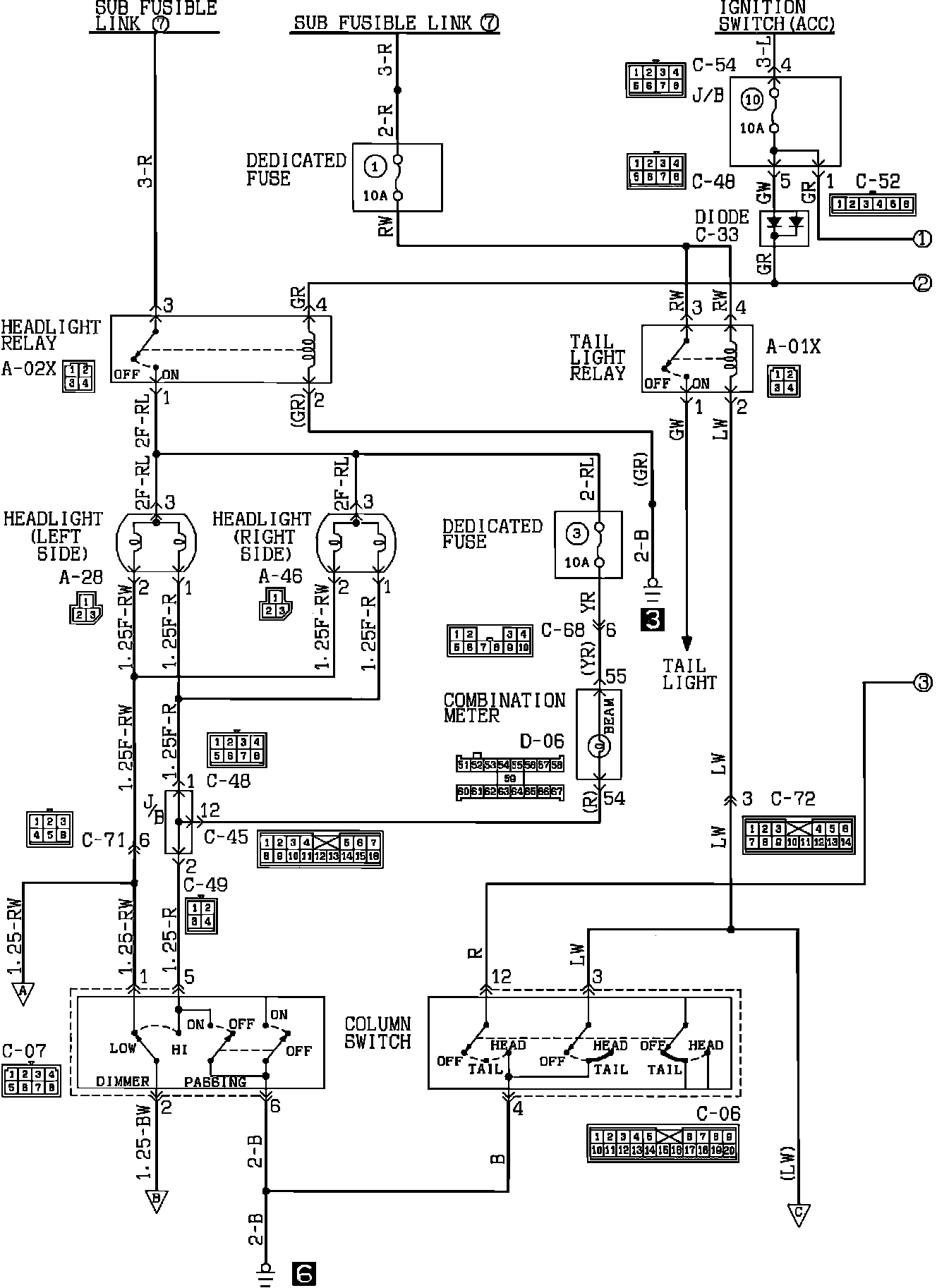

Headlamp (With Theft-Alarm And Daytime Running Light):
