Home >> Eagle >> 1991 >> Talon AWD L4-1997cc 2.0L DOHC Turbo >> Repair and Diagnosis >> Lighting and Horns >> Fog/Driving Lamp >> Diagrams >> Electrical Diagrams >> Without Daytime Running Lamps

Without Daytime Running Lamps

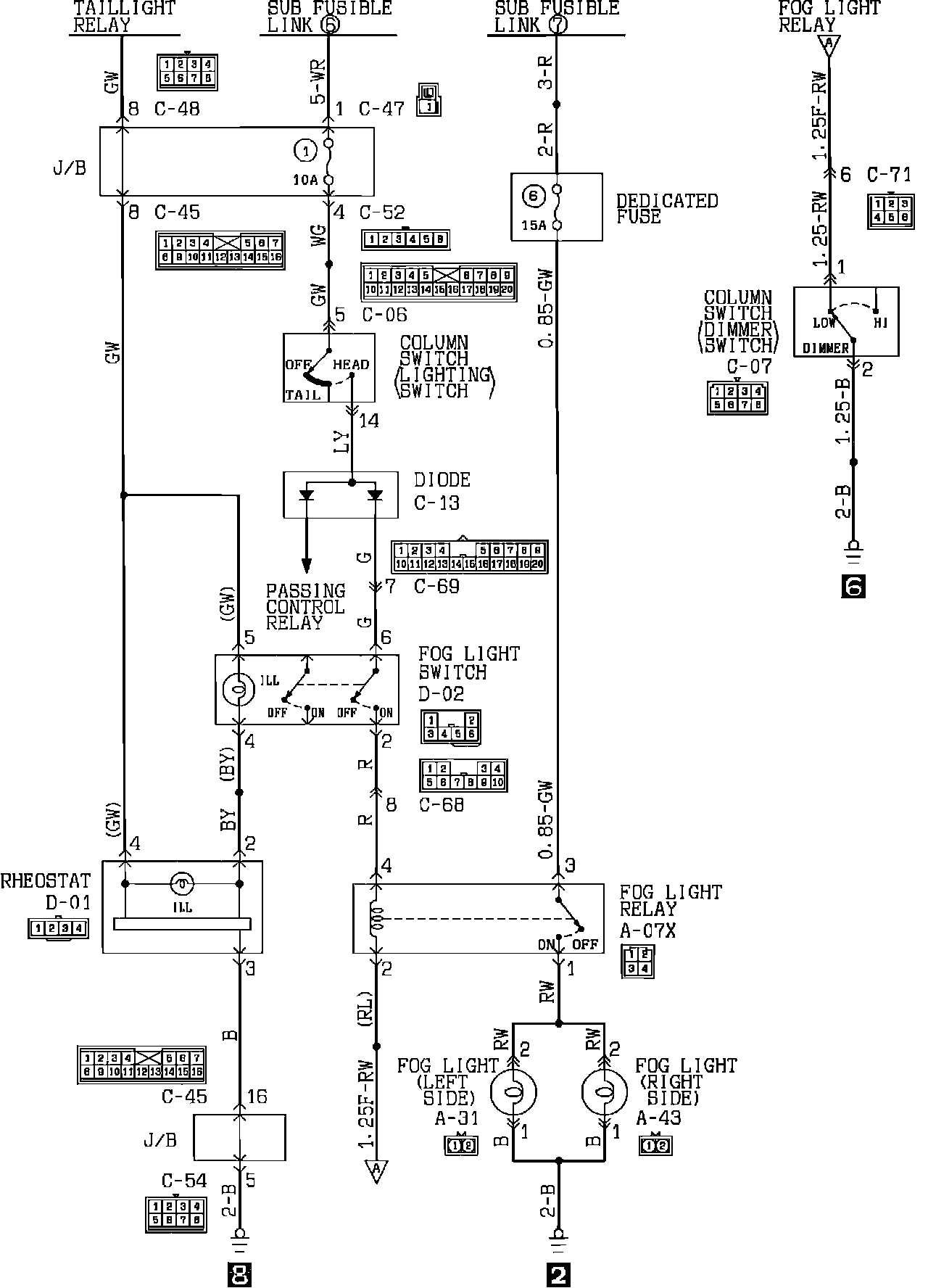

Fog Lamp (Less-Daytime Running Light):



Fog Lamp (All):
