Home >> Eagle >> 1991 >> Talon AWD L4-1997cc 2.0L DOHC Turbo >> Repair and Diagnosis >> Diagrams >> Electrical Diagrams >> Starting and Charging >> Starting System >> System Diagram >> With Theft Alarm

With Theft Alarm

Starting System (With Theft-Alarm)-A/T:

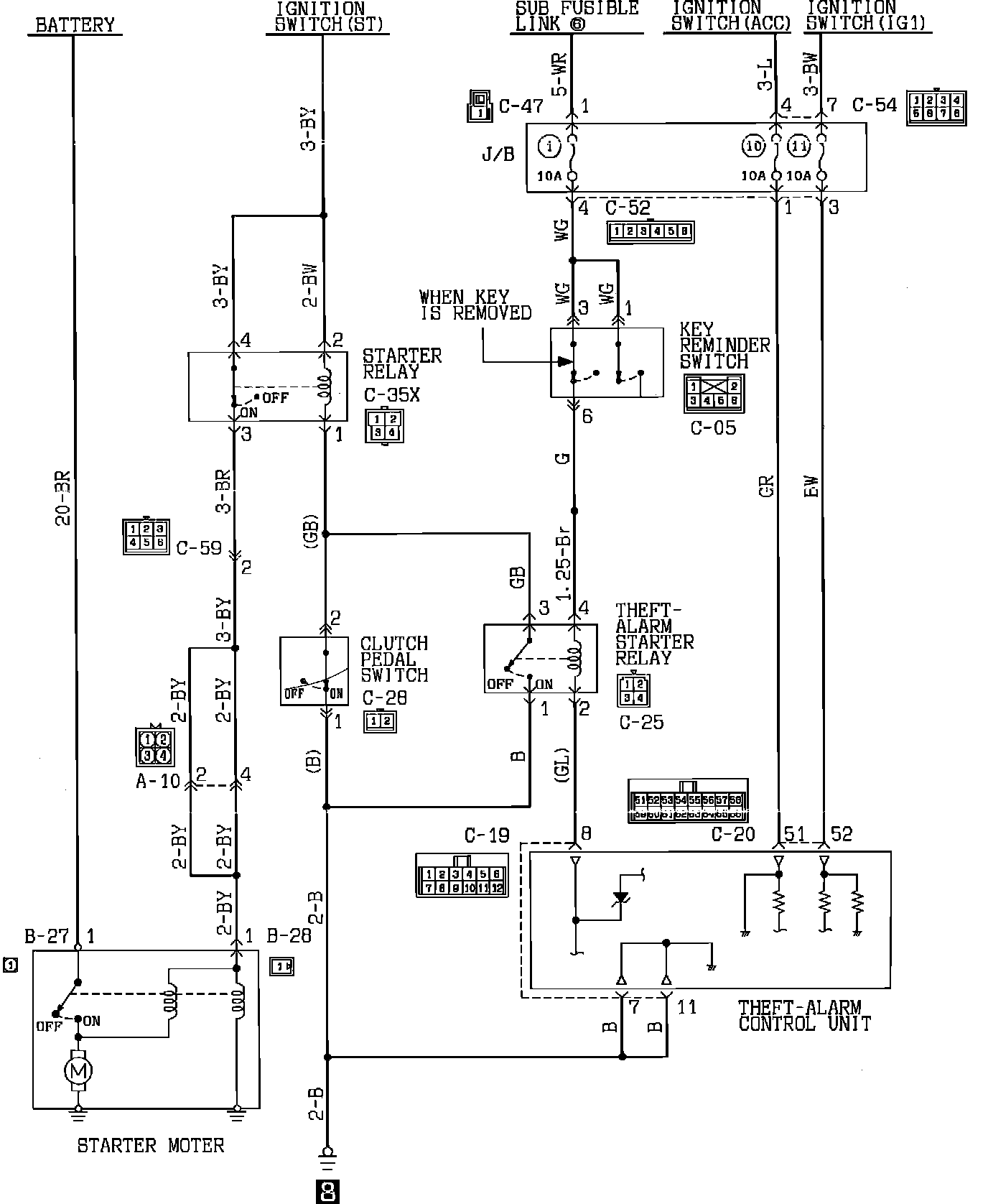

Starting System (With Theft-Alarm)-M/T:
