Home >> Eagle >> 1991 >> Talon AWD L4-1997cc 2.0L DOHC Turbo >> Repair and Diagnosis >> Diagrams >> Electrical Diagrams >> Courtesy Lamp >> System Diagram

System Diagram

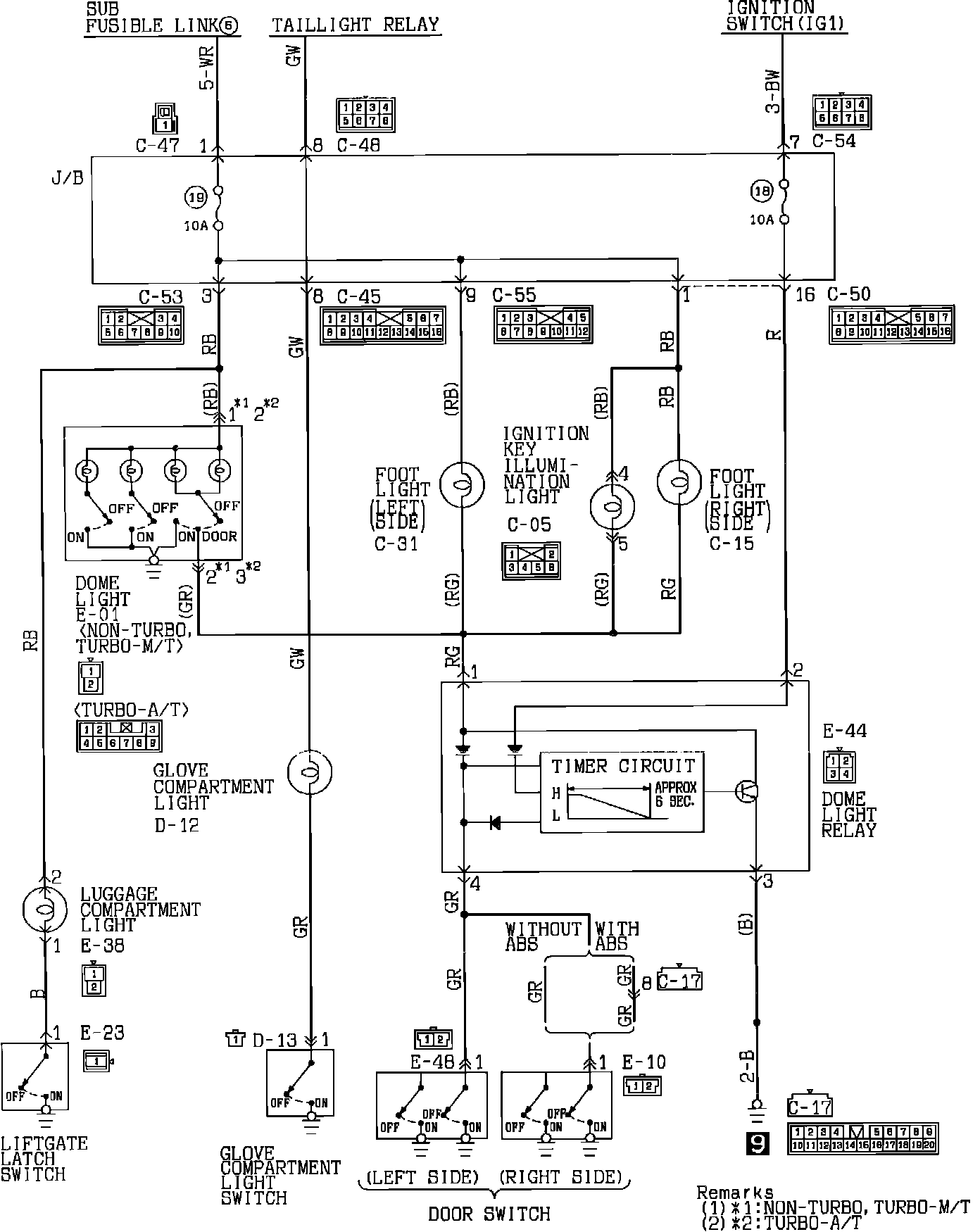

Dome Light, Ignition Key Illumination Light, Foot Light, Glove Compartment Light And Luggage Compartment Light:
