Without Daytime Running Light

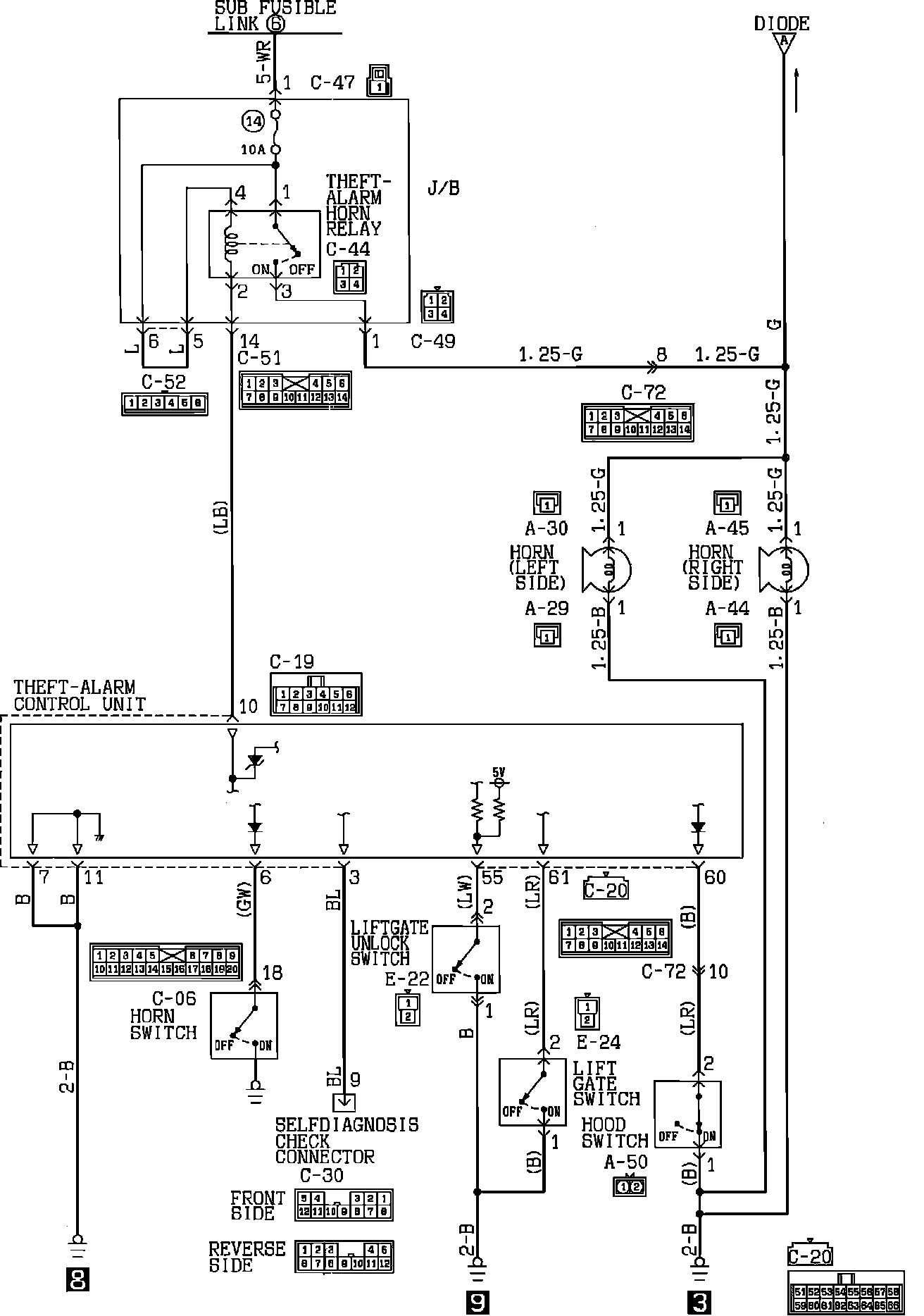

Anti-Theft System (Less-Daytime Running Light):



Anti-Lock System (Less-Daytime Running Light):



Anti-lock System (Less-Daytime Running Light):



Anti-lock System (Less-Daytime Running Light):
