Home >> Eagle >> 1991 >> Talon AWD L4-1997cc 2.0L DOHC Turbo >> Repair and Diagnosis >> Accessories and Optional Equipment >> Antitheft and Alarm Systems >> Antitheft Relay >> Locations >> Theft-Alarm Starter Relay >> Auto Transmission

Auto Transmission

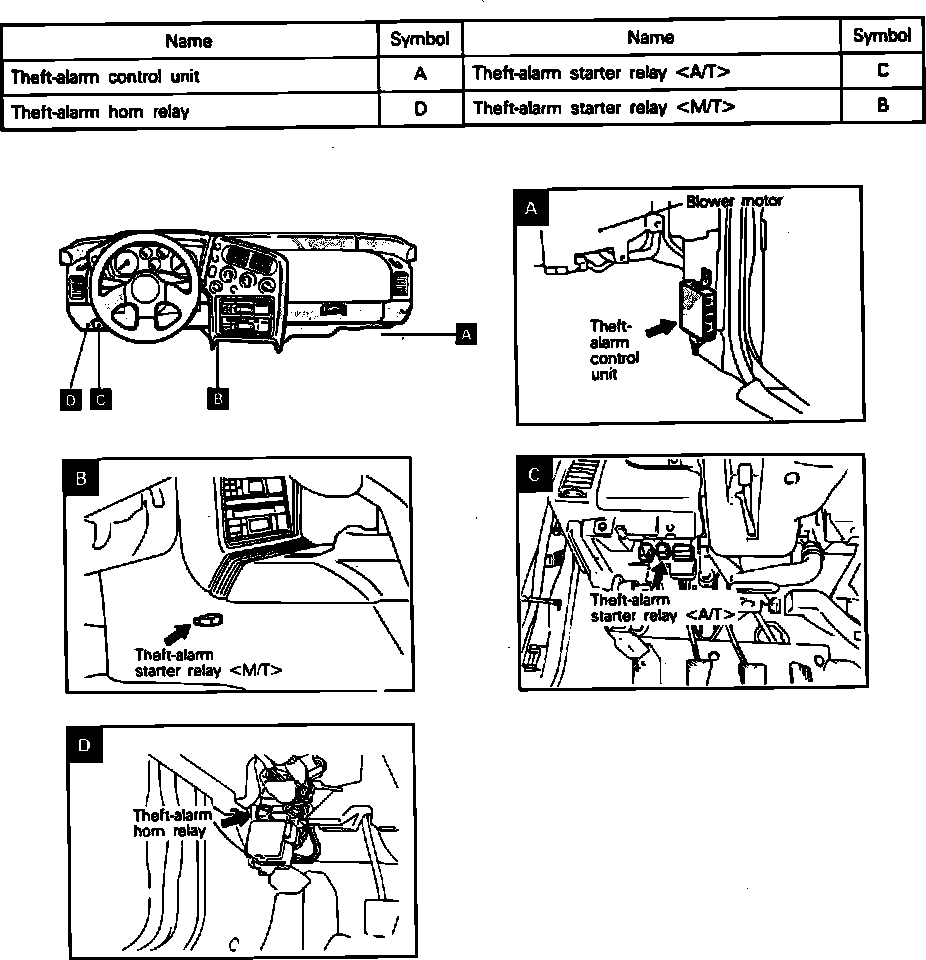

Theft Alarm Component Locations.:




Behind LH Side Of I/P

Applicable to: 1991 Models
