Home >> Eagle >> 1991 >> Talon AWD L4-1997cc 2.0L DOHC Turbo >> Repair and Diagnosis >> A L L Diagnostic Trouble Codes ( DTC ) >> Testing and Inspection >> Manufacturer Code Charts >> Driveability (DR) Tests >> DR-1A CODE to DR TEST Chart (Checking for Fault Codes)

DR-1A CODE to DR TEST Chart (Checking for Fault Codes)

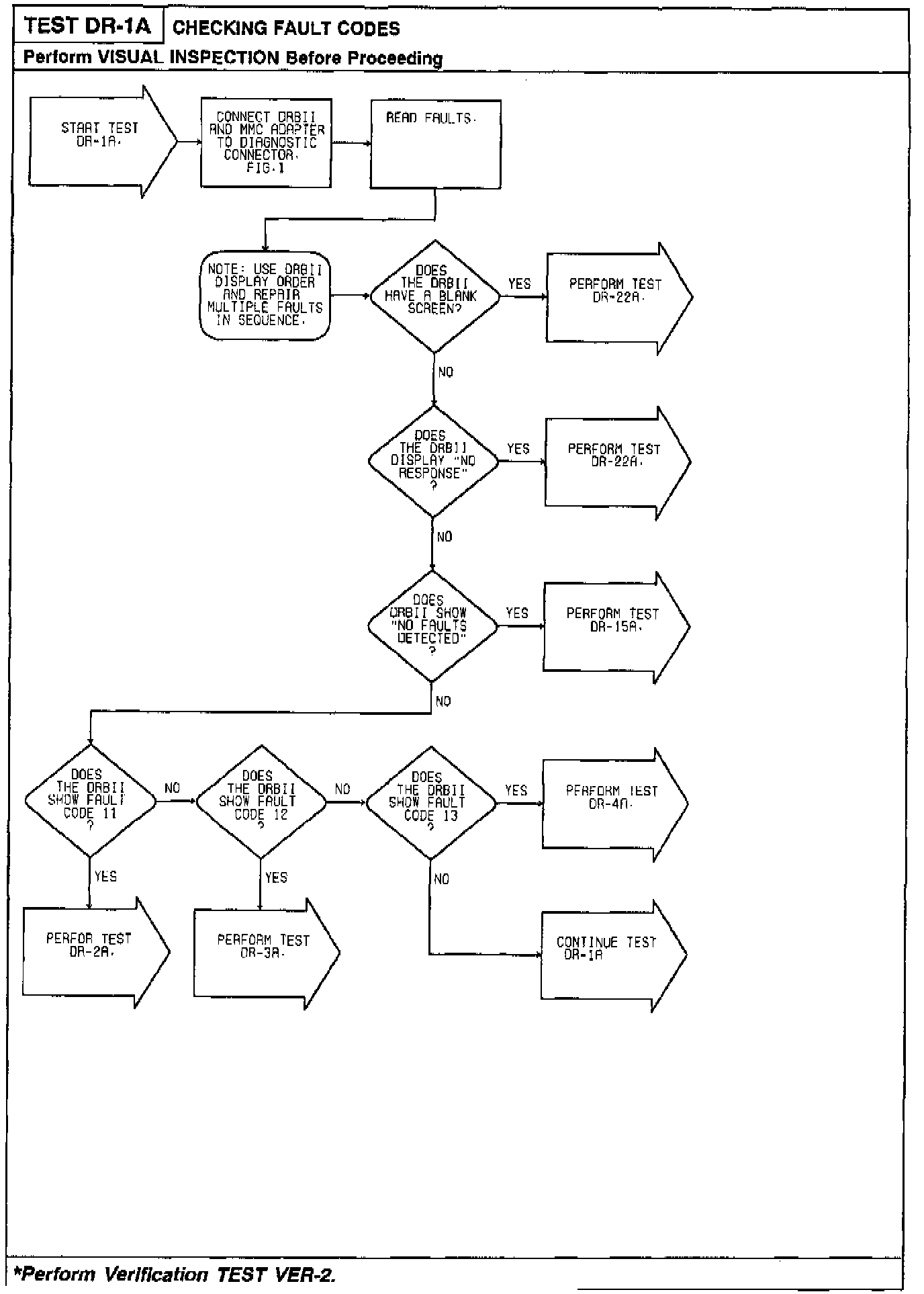

Part 1 Of 2:

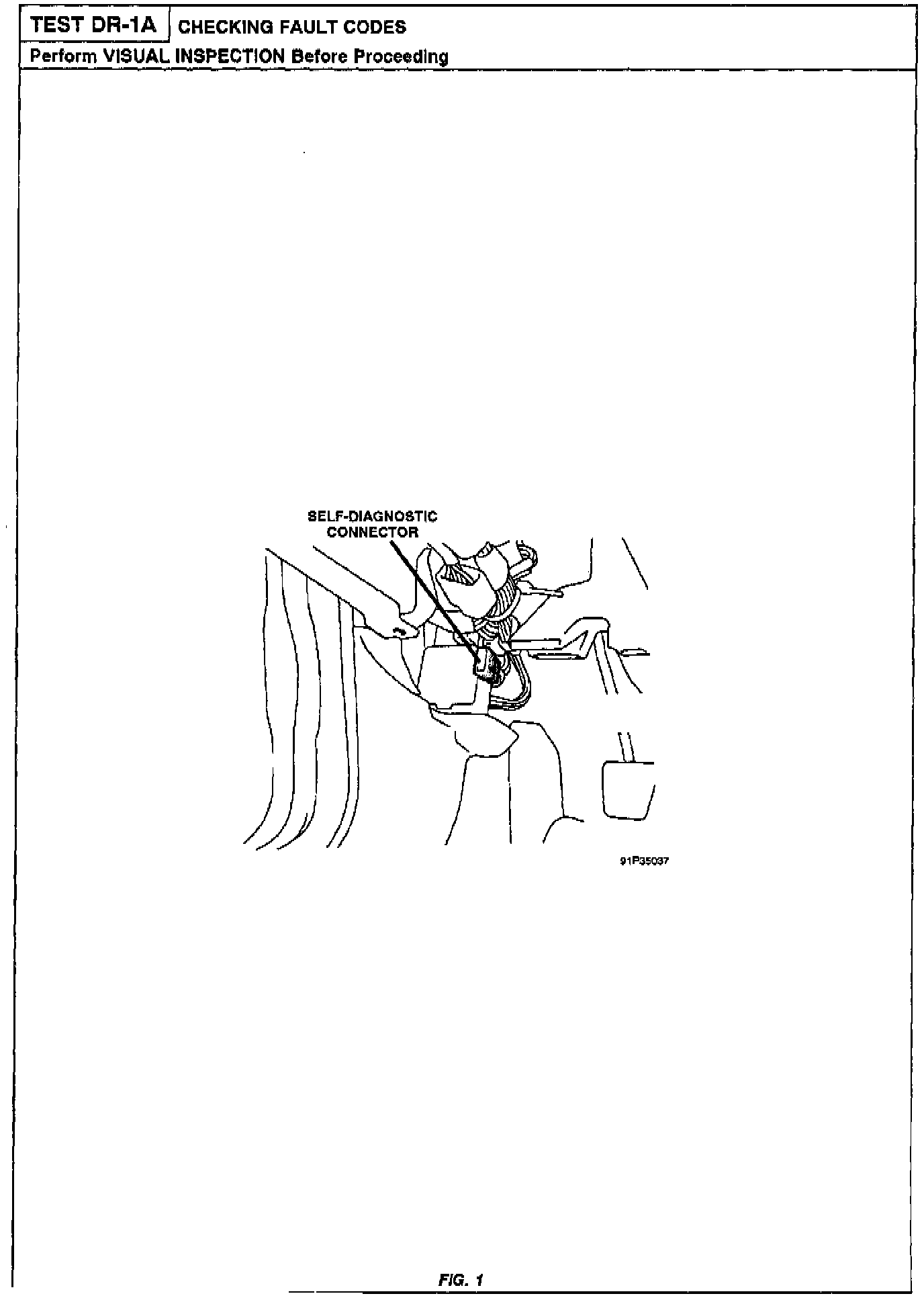

Part 1 Image:

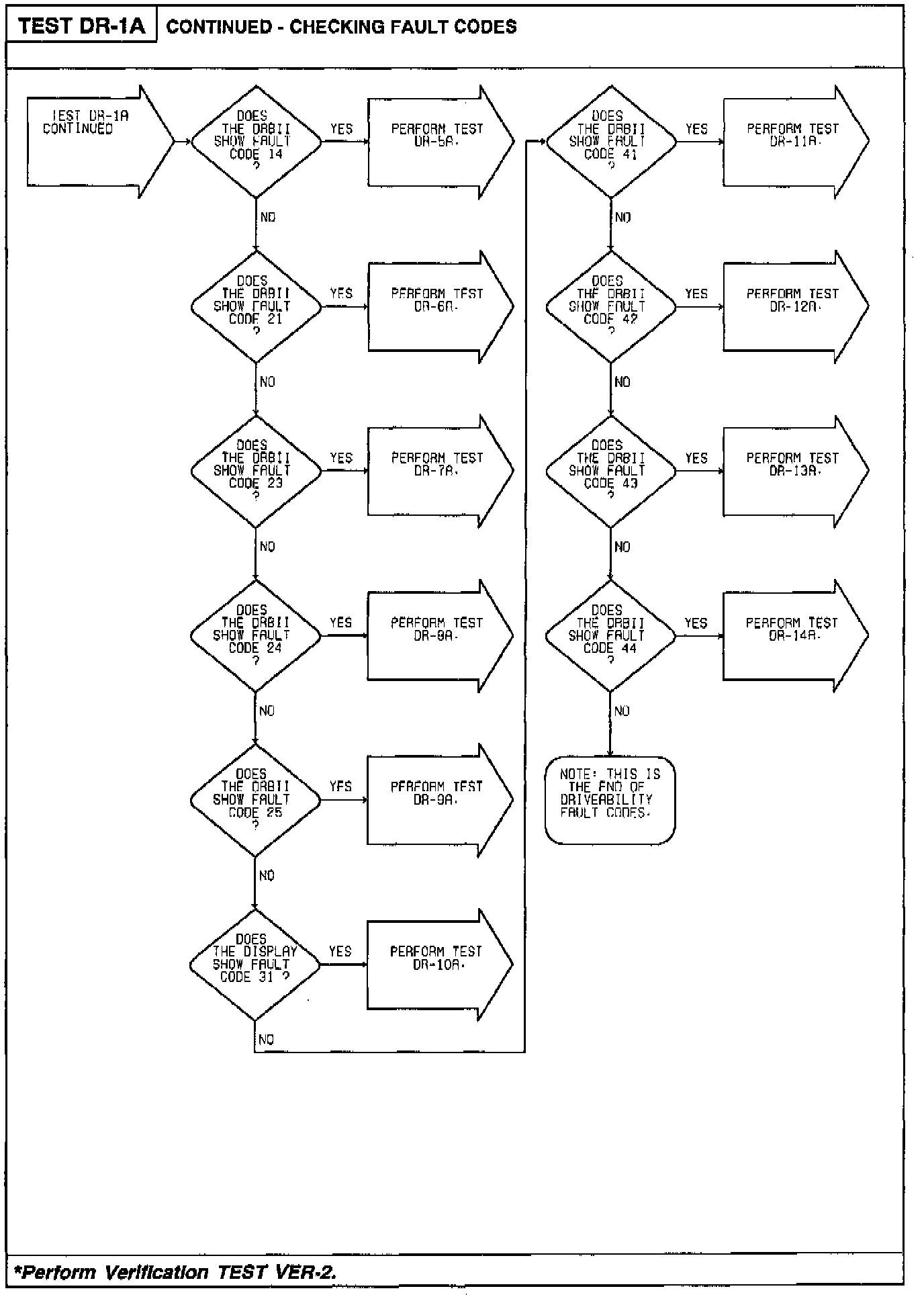

Part 2 Of 2:
