Talon AWD L4-1997cc 2.0L DOHC Turbo
>>
Repair and Diagnosis
>>
A L L Diagnostic Trouble Codes ( DTC )
>>
Testing and Inspection
>>
Diagnostic Trouble Code Descriptions
>>
Detailed Descriptions
>>
Transmission Control System
Transmission Control System

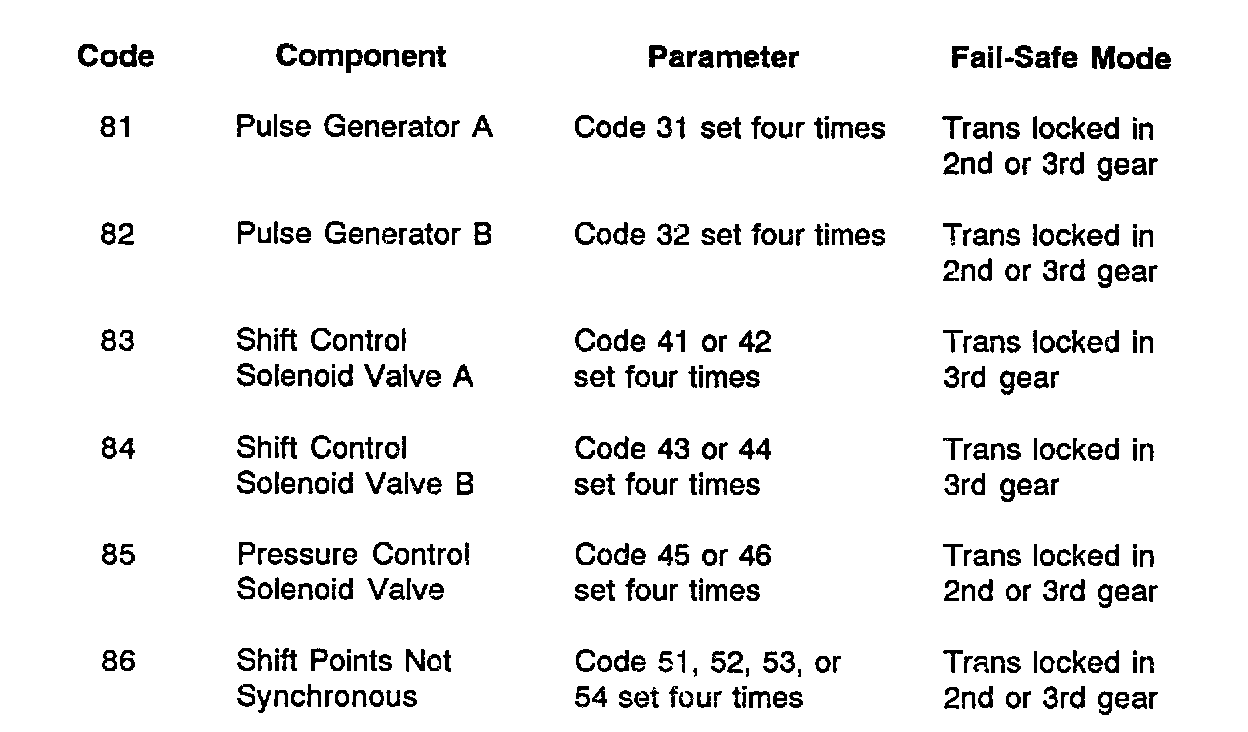

81-86 ELC-4A/T (Fail-Safe Codes):
11-16 ELC-4A/T:

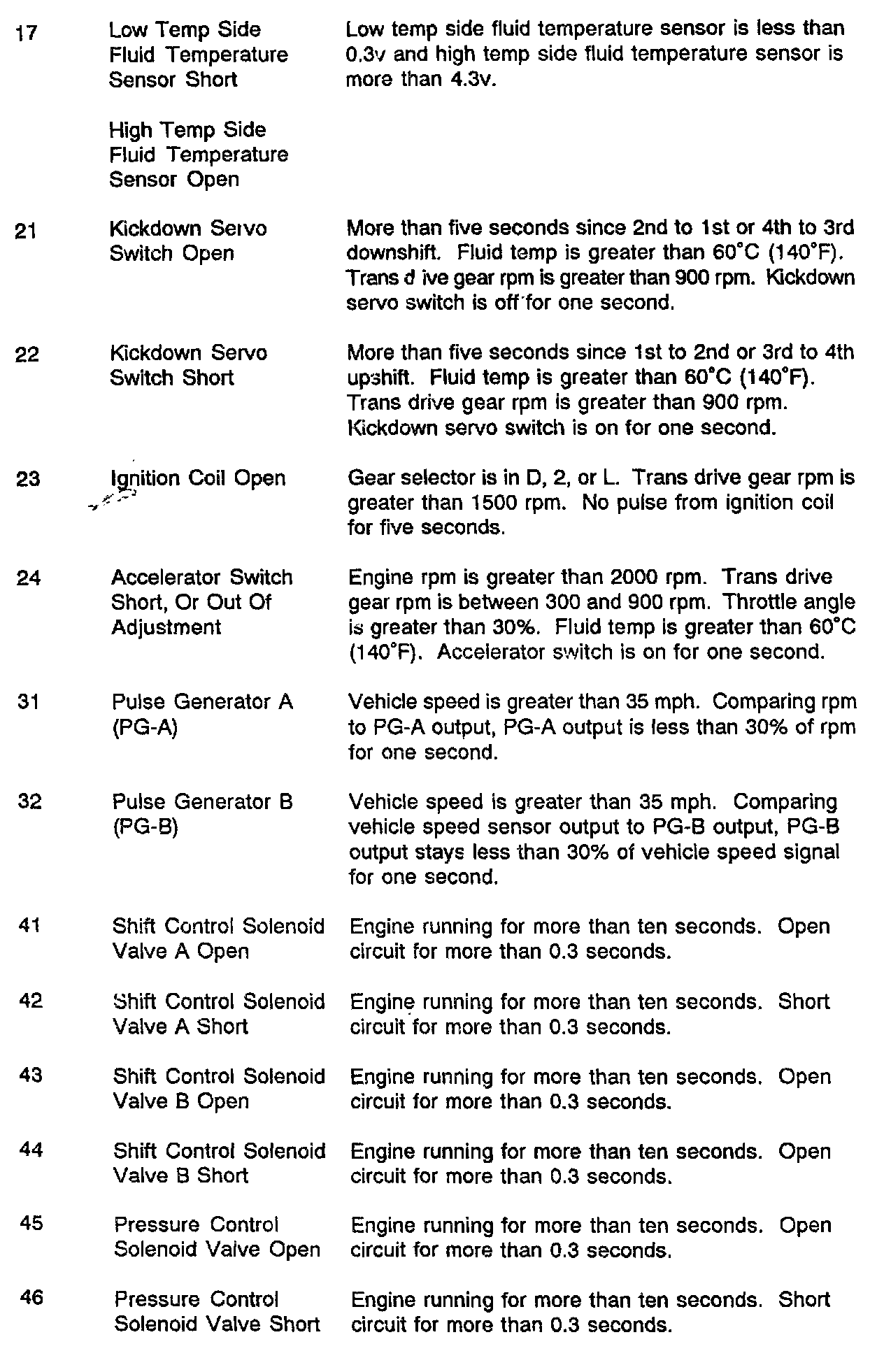

17-46 ELC-4A/T:

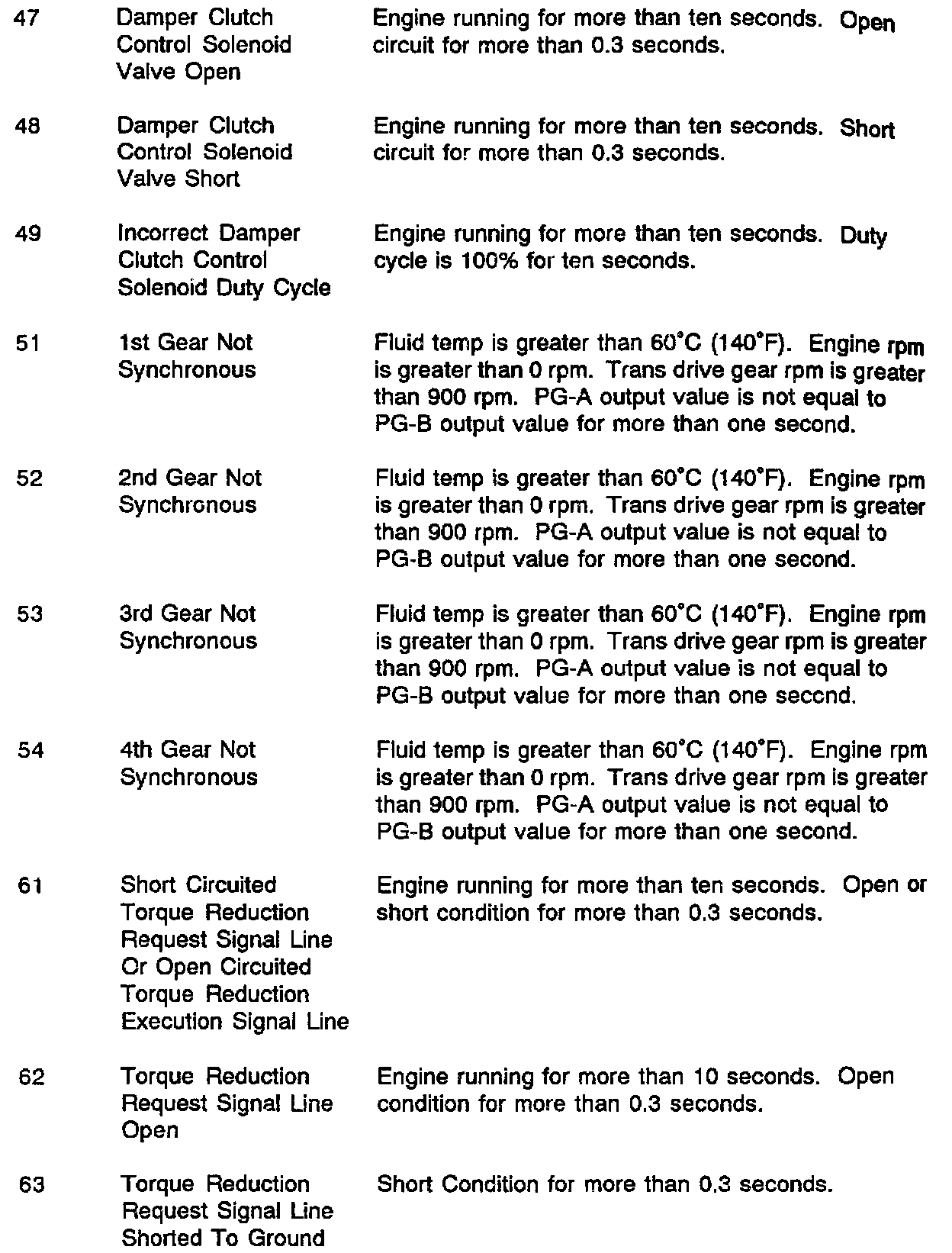

47-63 ELC-4A/T:
