Removal and Installation

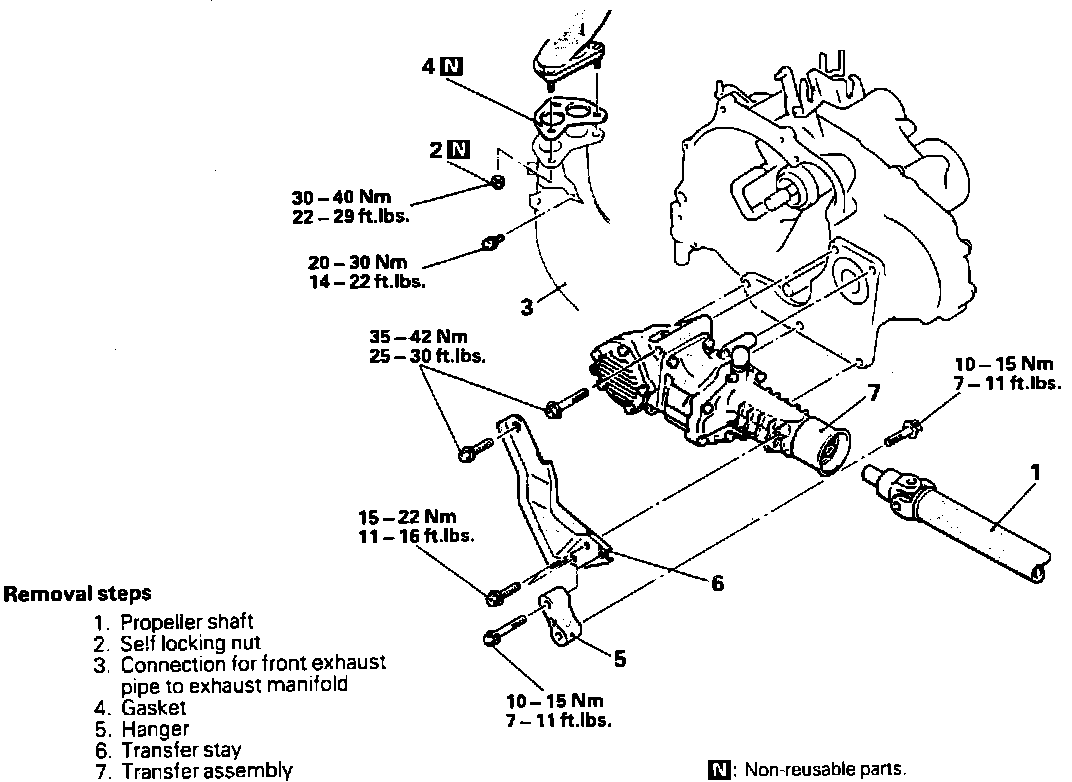

Fig. 16 Transfer Assembly Removal:

1. Raise and support vehicle.
2. Remove propeller shaft assembly.
3. Disconnect front exhaust pipe from manifold.
4. Remove transfer hanger and stay When removing, move transfer assembly toward left, then lower from vehicle.
5. Remove transfer assembly.
6. Reverse procedure to install, torquing transfer assembly bolts to 25-30 lb-ft.
