Home >> Eagle >> 1990 >> Talon AWD L4-1997cc 2.0L DOHC Turbo >> Repair and Diagnosis >> Transmission and Drivetrain >> Testing and Inspection >> Part 2 of 2

Part 2 of 2

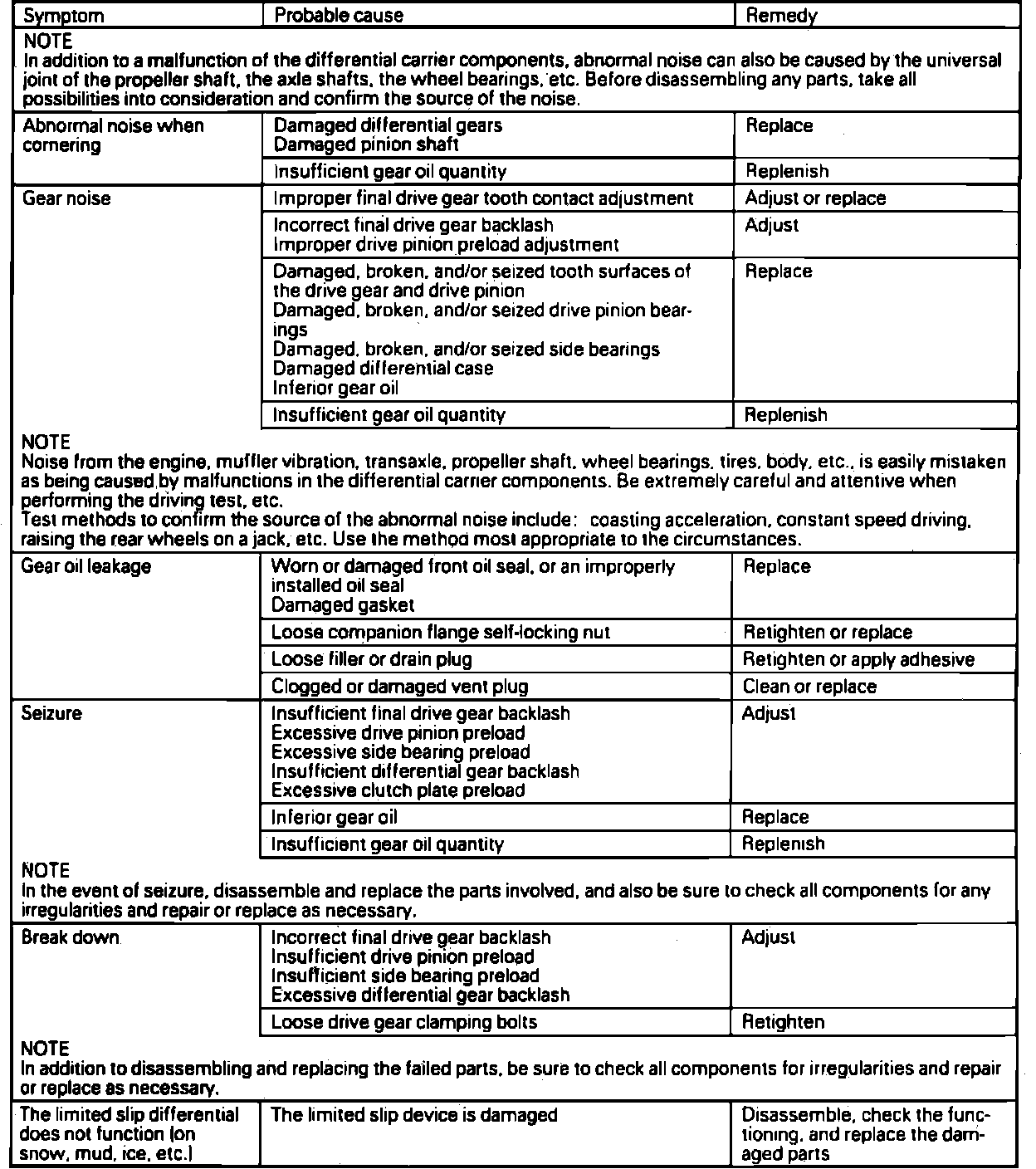

Fig. 1 All Wheel Drive (AWD) Troubleshooting Chart (Part 2 Of 2):
