Troubleshooting Cross Reference Chart

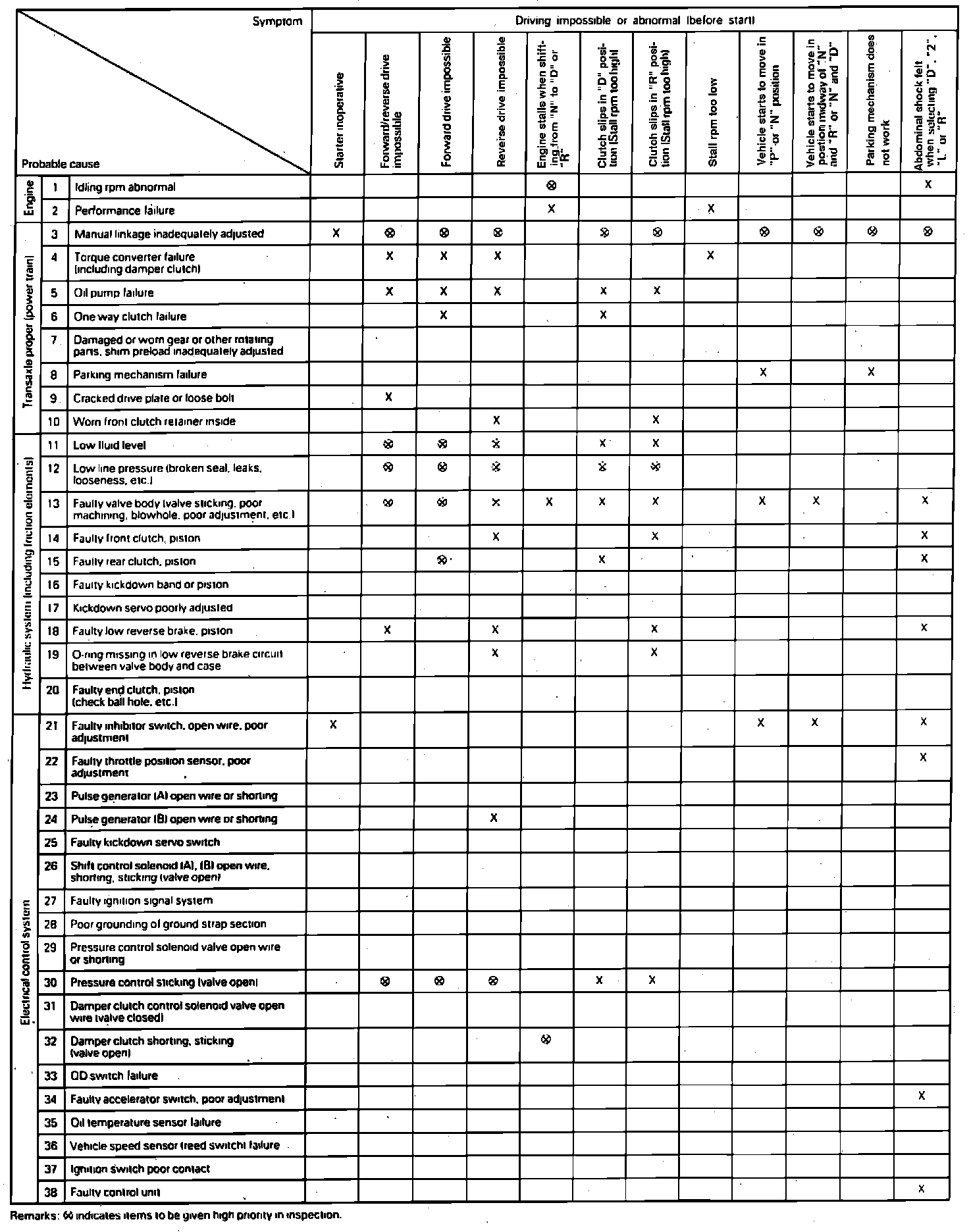

Fig. 2 Troubleshooting Chart (Part 1 Of 2):

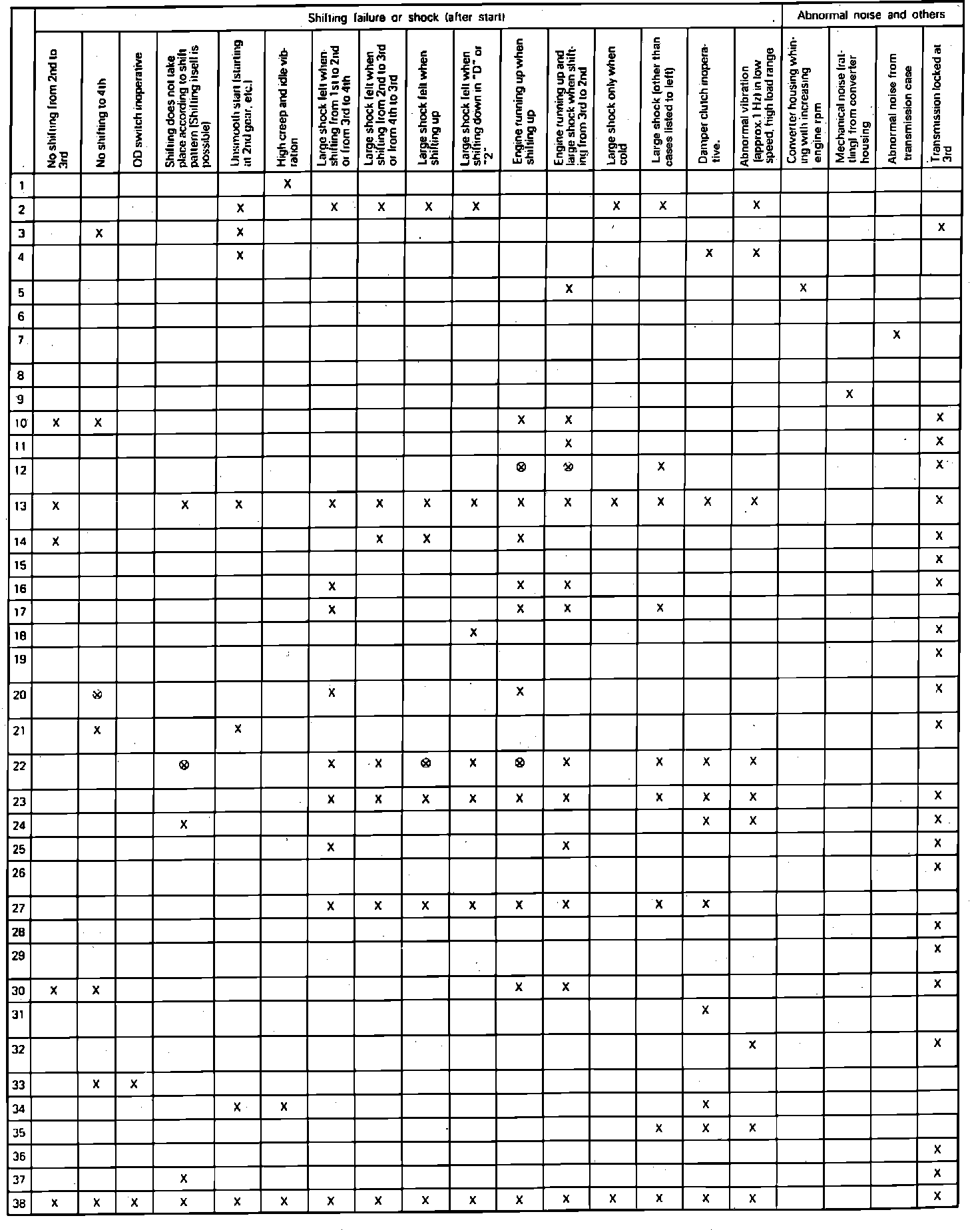

Fig. 2 Troubleshooting Chart (Part 2 Of 2):
