Clearance and Design Specifications

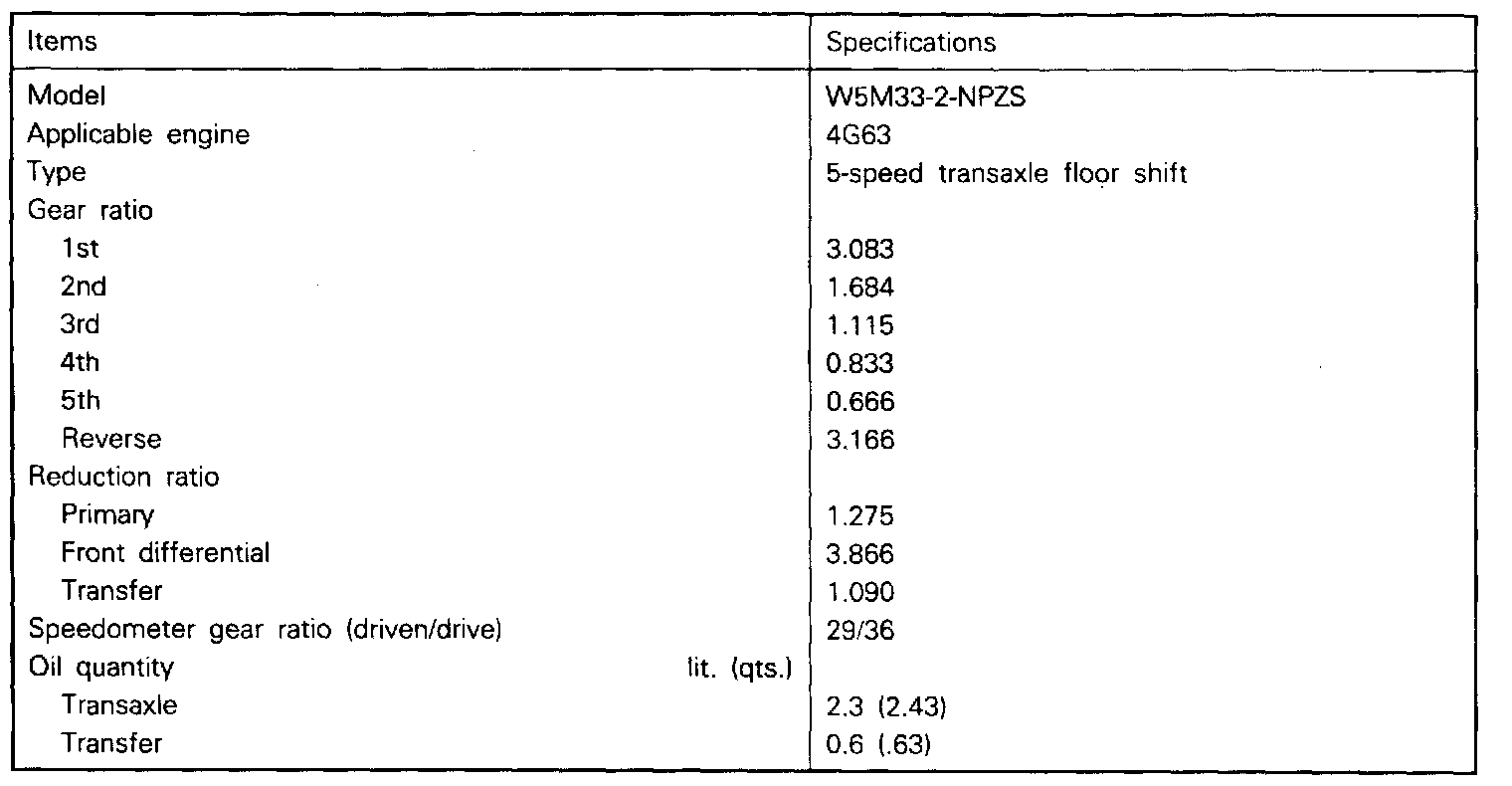

General Specifications:





Service Specifications:

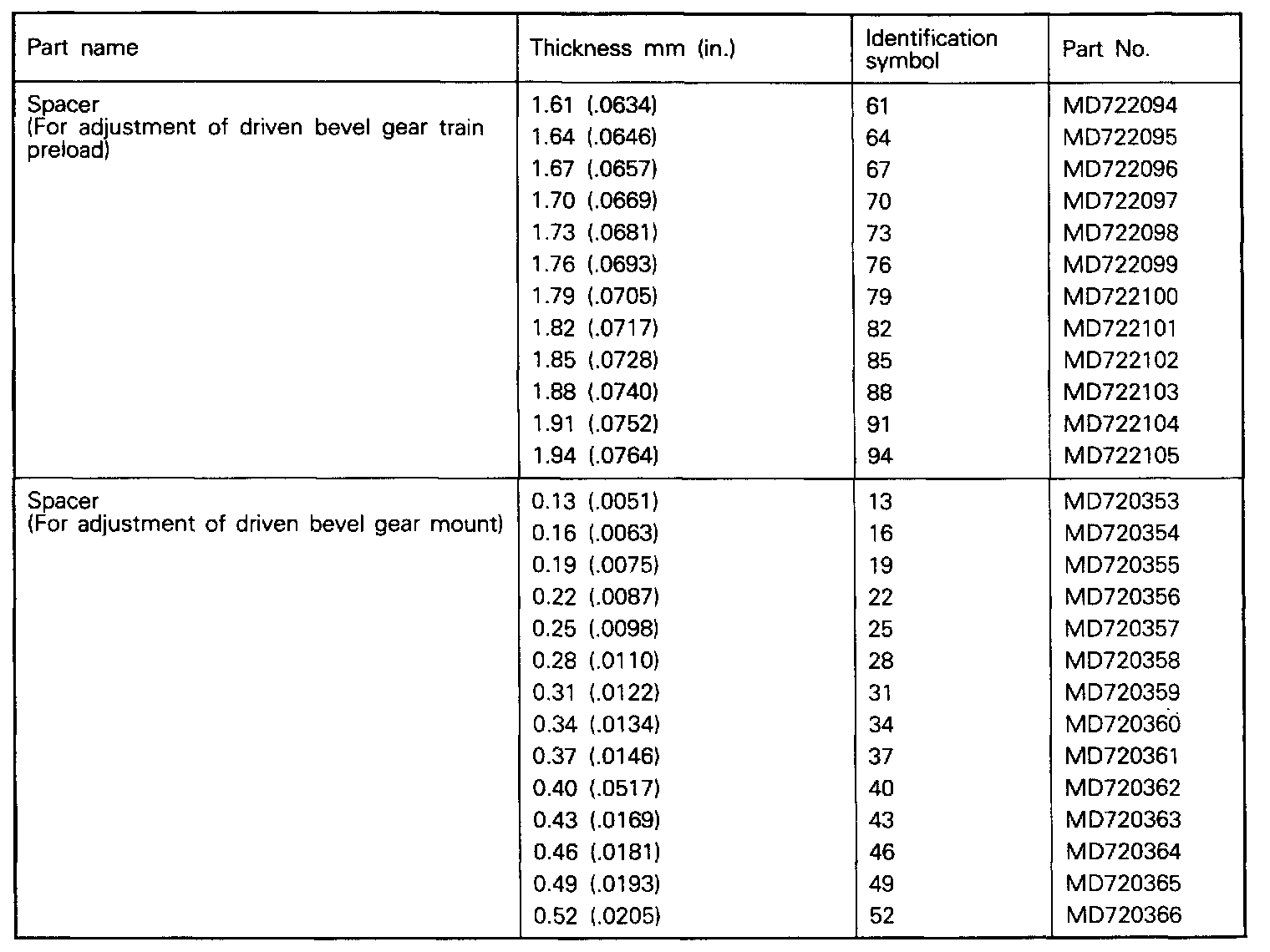

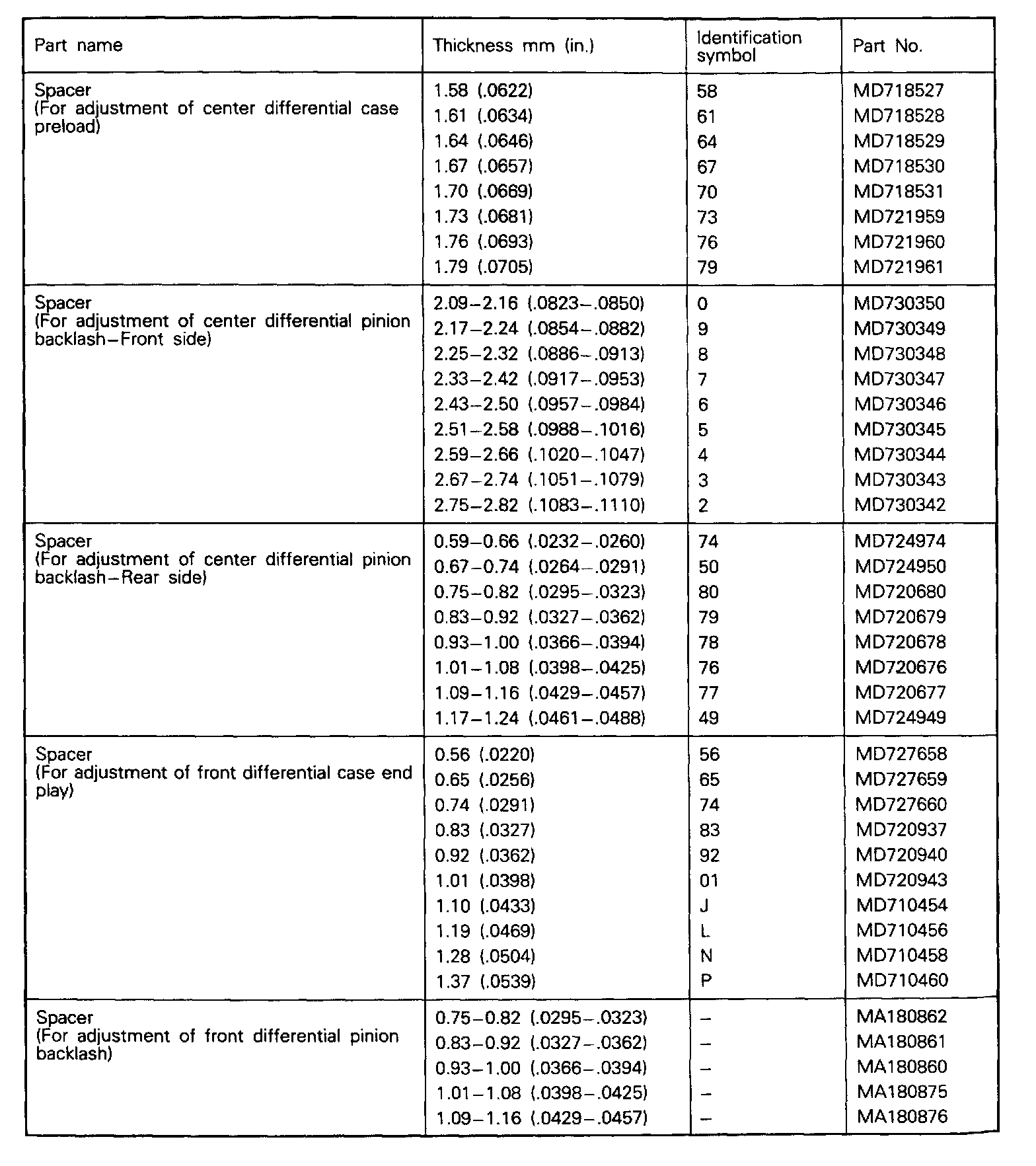

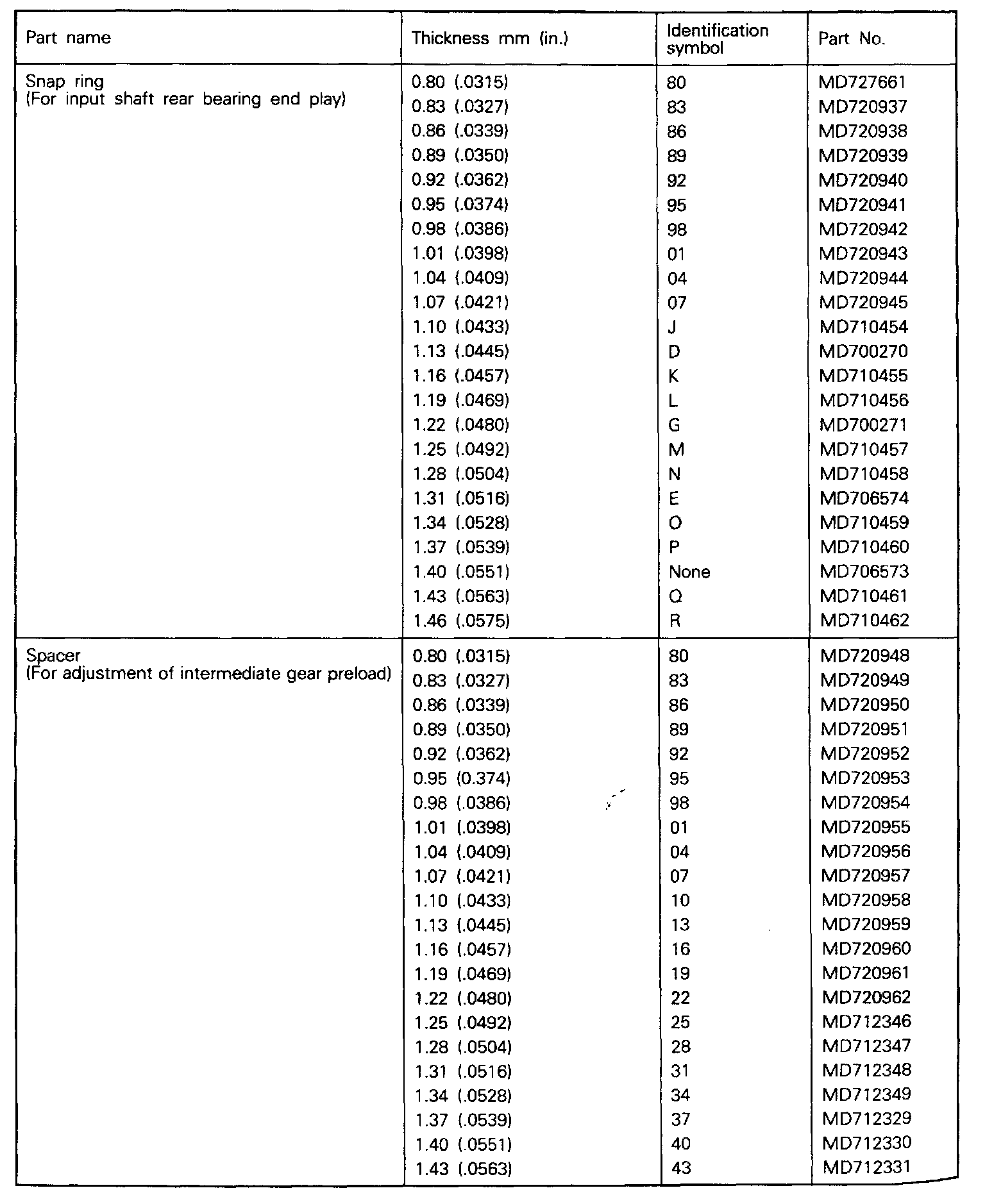

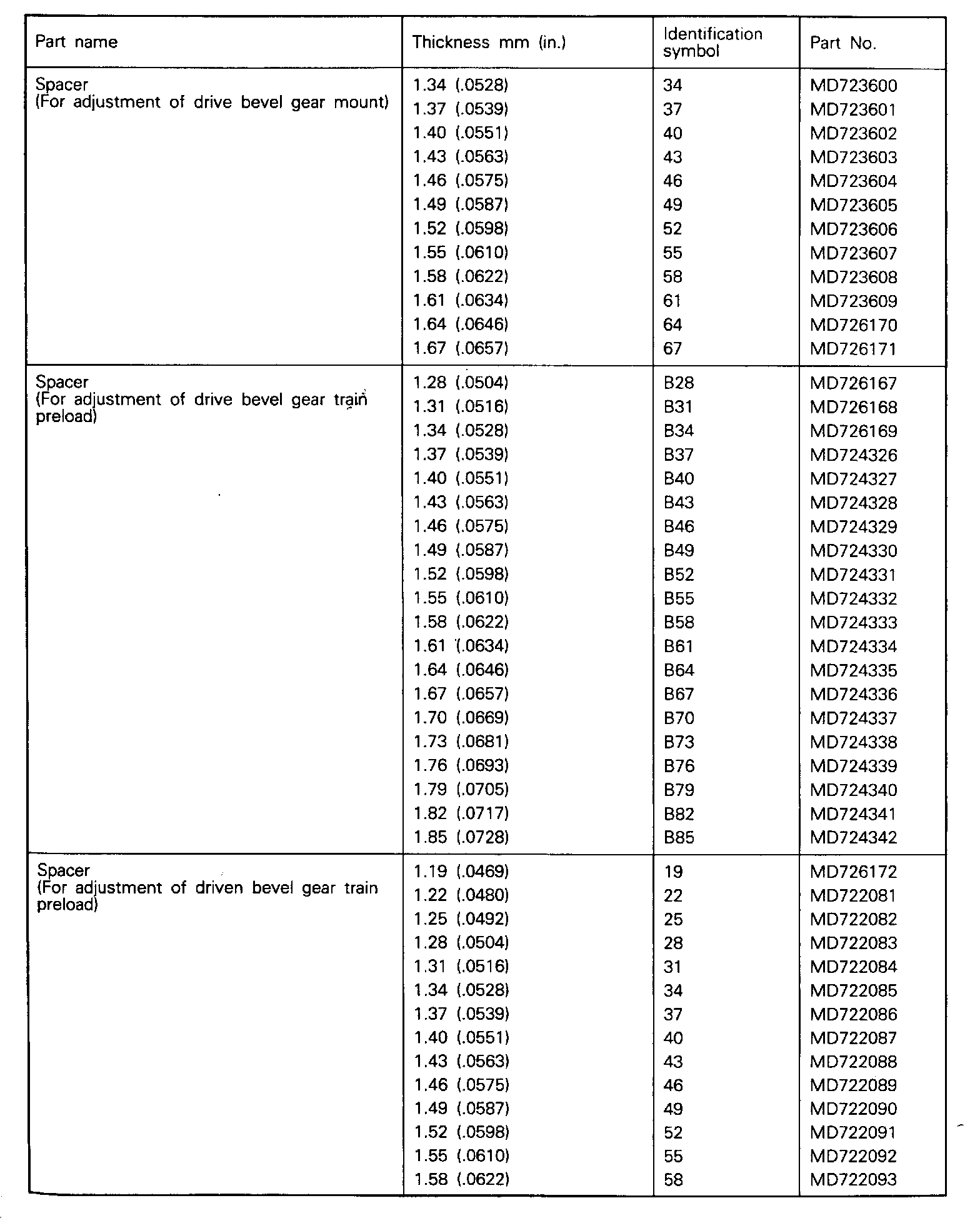

Snap Ring (For Adjustment) And Spacer:




Continued:




Continued:




Continued:




Continued:

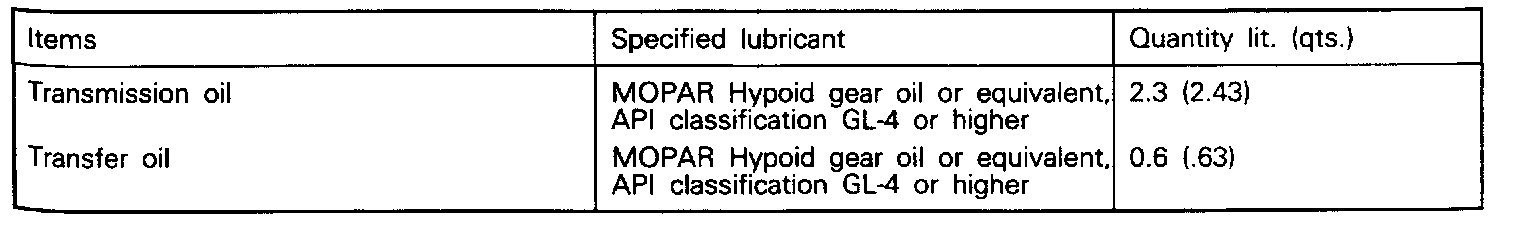

Lubricants:
