Home >> Eagle >> 1990 >> Talon AWD L4-1997cc 2.0L DOHC Turbo >> Repair and Diagnosis >> Specifications >> Mechanical Specifications >> Alignment >> Front Alignment Specifications

Front Alignment Specifications

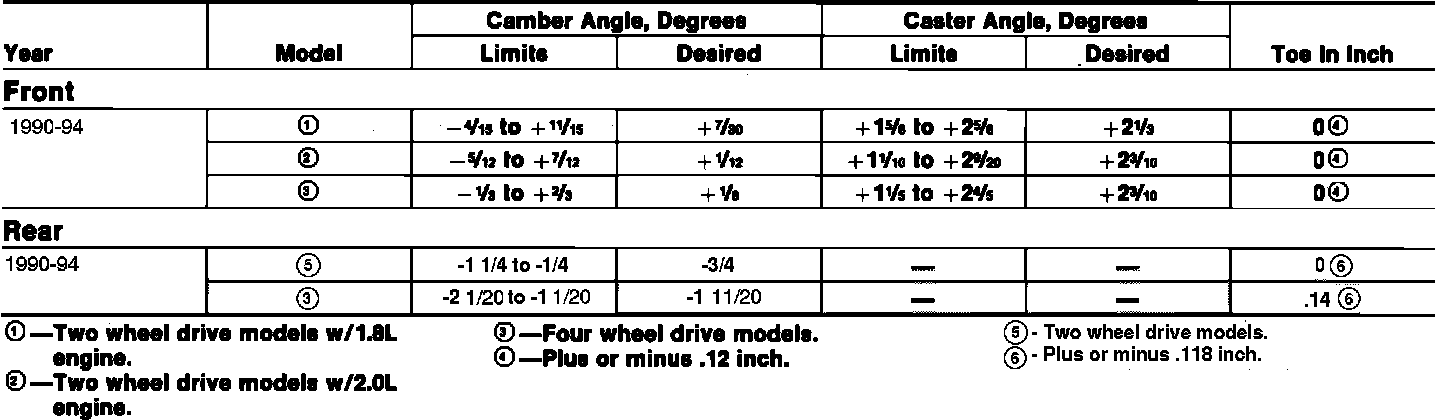

Wheel Alignment Specifications:
