Home >> Eagle >> 1990 >> Talon AWD L4-1997cc 2.0L DOHC Turbo >> Repair and Diagnosis >> Sensors and Switches >> Sensors and Switches - Wiper and Washer Systems >> Wiper Switch >> Testing and Inspection >> Wiper Switch Test >> Standard

Standard

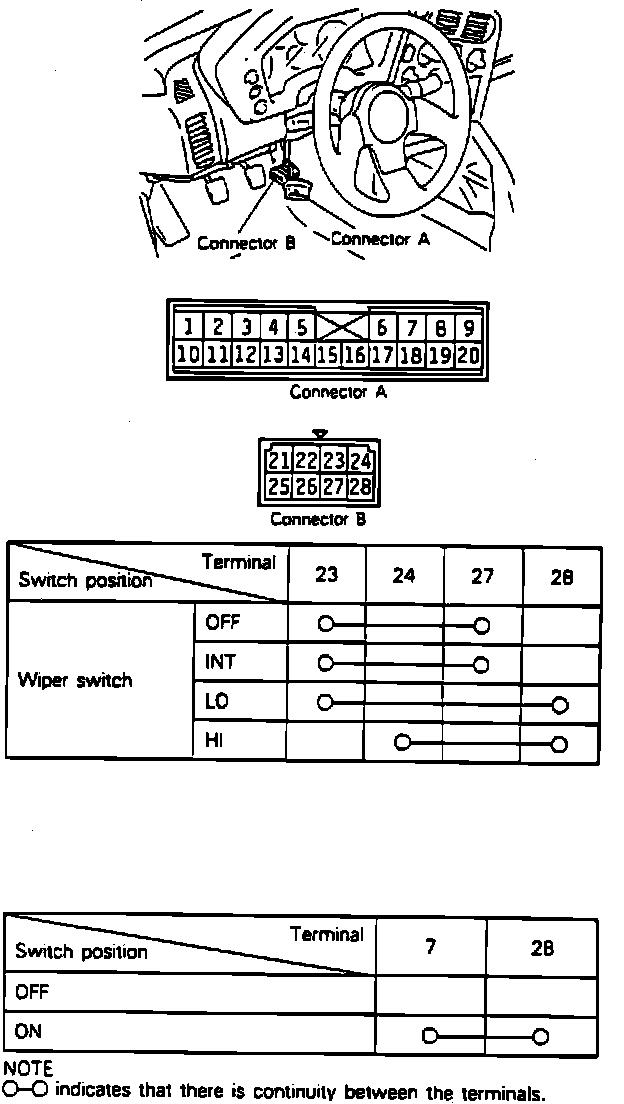

Fig. 69 Front Wiper/Washer Switch Inspection:





Disconnect wiper switch connector and check for continuity as shown.
