Rear Wiper/Washer Switch Continuity Test

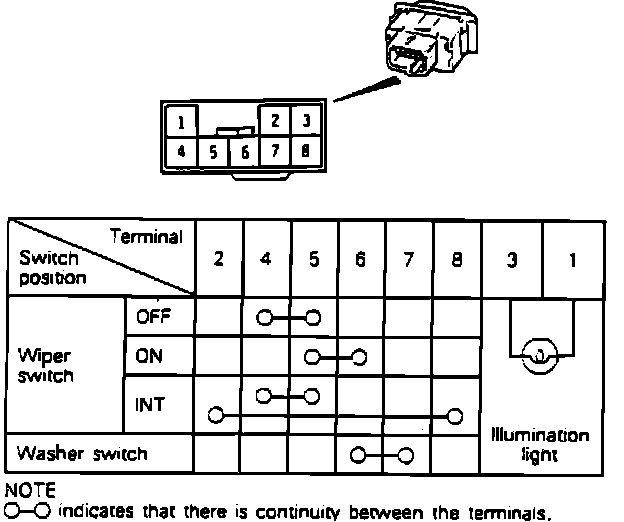

Fig. 71 Rear Wiper/Washer Switch Inspection:





Disconnect wiper switch connector and check for continuity as shown.
