With Cruise Control

Cruise Control Actuator Cover:

1. Remove the cruise control actuator cover.

Accelerator Cable Adjustment:

2. Loosen the adjusting bolts.

Accelerator Cable And Pedal Assembly:

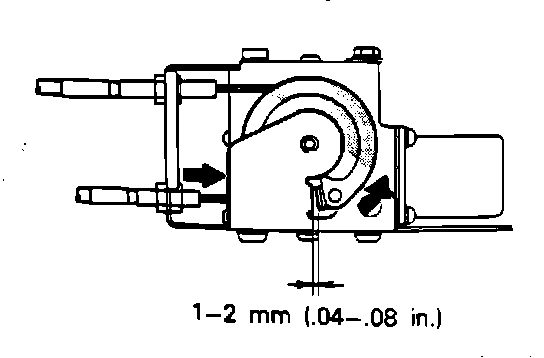

3. First, adjust accelerator cable B in and out movement (throttle valve side), using the adjustment bolts.

Clearance:
0.04-0.08 in. (1-2 mm)

4. Tighten the adjusting bolts.




5. Confirm that the throttle lever stopper touches the idle position switch.

Cable "A" Adjustment Point:

6. Next, adjust accelerator cable A (accelerator pedal side) at the adjustment point indicated. With the intermediate link A of the actuator held against the stopper, adjust the A cable to the standard clearance and tighten the locking nut.

M/T:
0.-0.04 in. (0-1 mm)
A/T:
0.08-0.12 in. (2-3 mm)





7. After adjustment recheck to ensure that the engine side cable has the specified clearance.
8. Confirm that the throttle valve fully opens and closes by operating the accelerator pedal.
