Home >> Eagle >> 1990 >> Talon AWD L4-1997cc 2.0L DOHC Turbo >> Repair and Diagnosis >> Powertrain Management >> Computers and Control Systems >> Testing and Inspection >> Symptom Related Diagnostic Procedures >> NS-VER No Start Verification Test

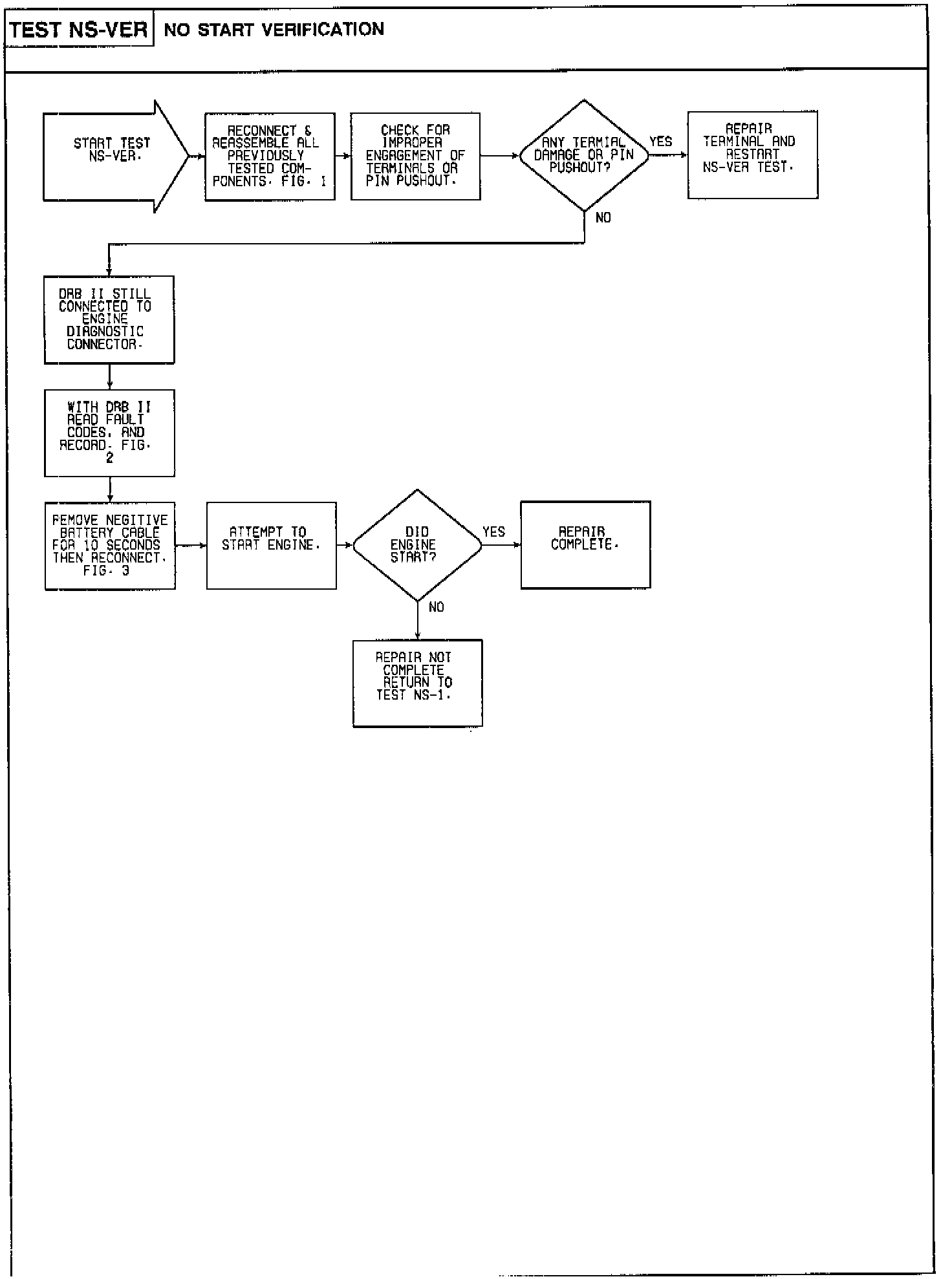

NS-VER No Start Verification Test

Part 1 Of 1:

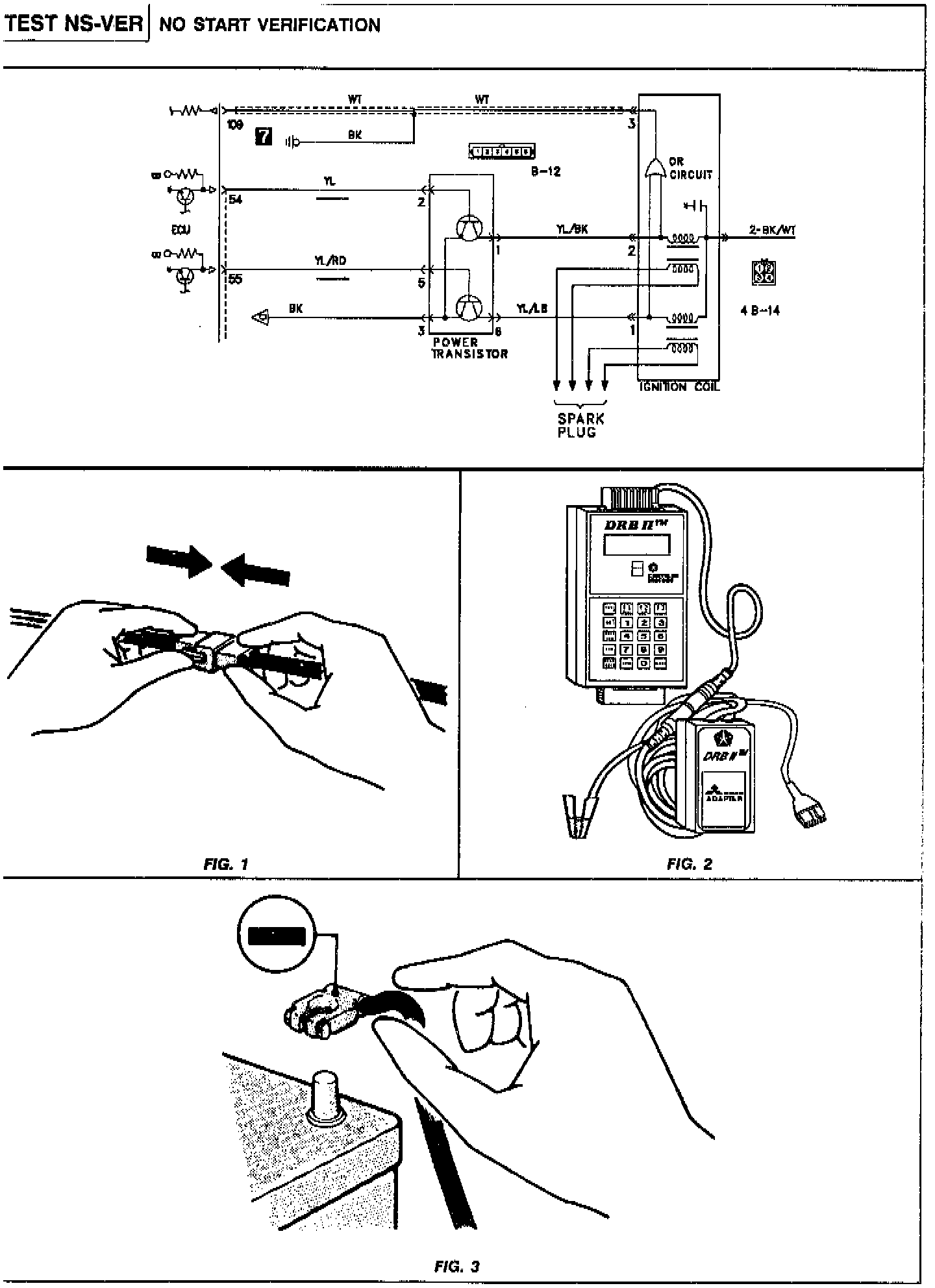

Part 1 Figures:
