Without Theft Alarm & Daytime Running Lights

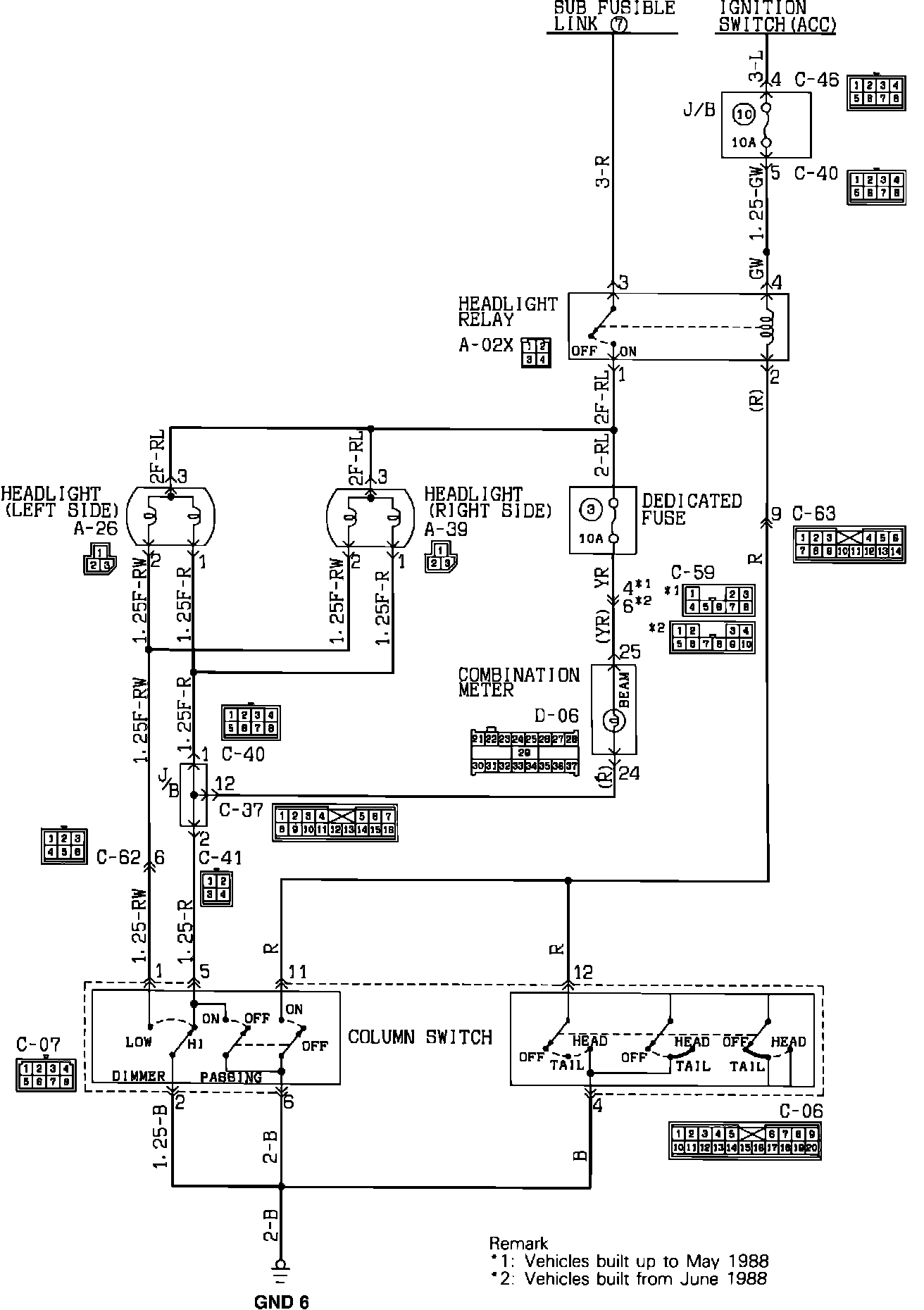

Headlamp Less Anti-Theft Alarm & Daytime Running Lights:
