Timing Component Alignment Marks: Locations

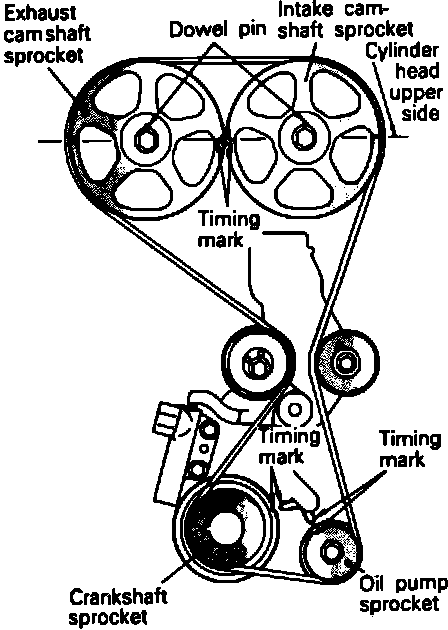

Fig. 2 Aligning Timing Marks. 2.0L/4-122:

CAUTION: Incorrect removal or installation of the timing belt can result in damage to internal engine components.

For complete Timing Belt Removal and Installation information:Service and Repair
