Oil Pump - Clearance, Manual Revision

89AMCjeep10

Models

1989 B2 Body 1990 BD Body


Subject


Checking Oil Pump Clearance


Index


ENGINE


Date

October 16, 1989

No.


09-56-89

P-3677 (C09-16-9)
BODY CODE LEGEND

B2 - SUMMIT (4-DOOR) BD - TALON



SERVICE MANUAL REVISION

The recommended positions to be used when measuring oil pump rotor clearances have been revised.

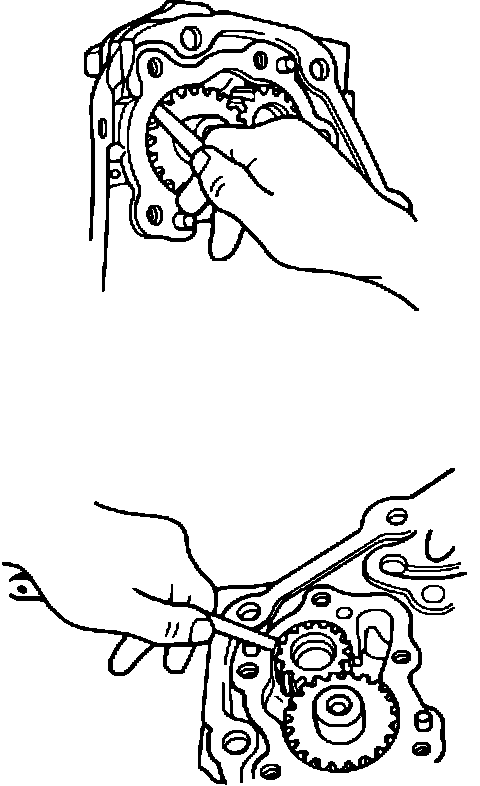

Attached are two identical illustrations showing the proper position to be used when measuring oil pump rotor drive gear clearances. Also attached are two identical illustrations showing the proper position to be used when measuring oil pump driven gear clearance.

These corrected illustrations should be inserted into the appropriate service manuals as follows:


SERVICE MANUAL PUB. NO. APPLICABLE PAGE

1989 SUMMIT 81-270-9011 9-133

1990 TALON 81-270-0175 9-118


POLICY: For information only.
