With Theft Alarm & Daytime Running Lights

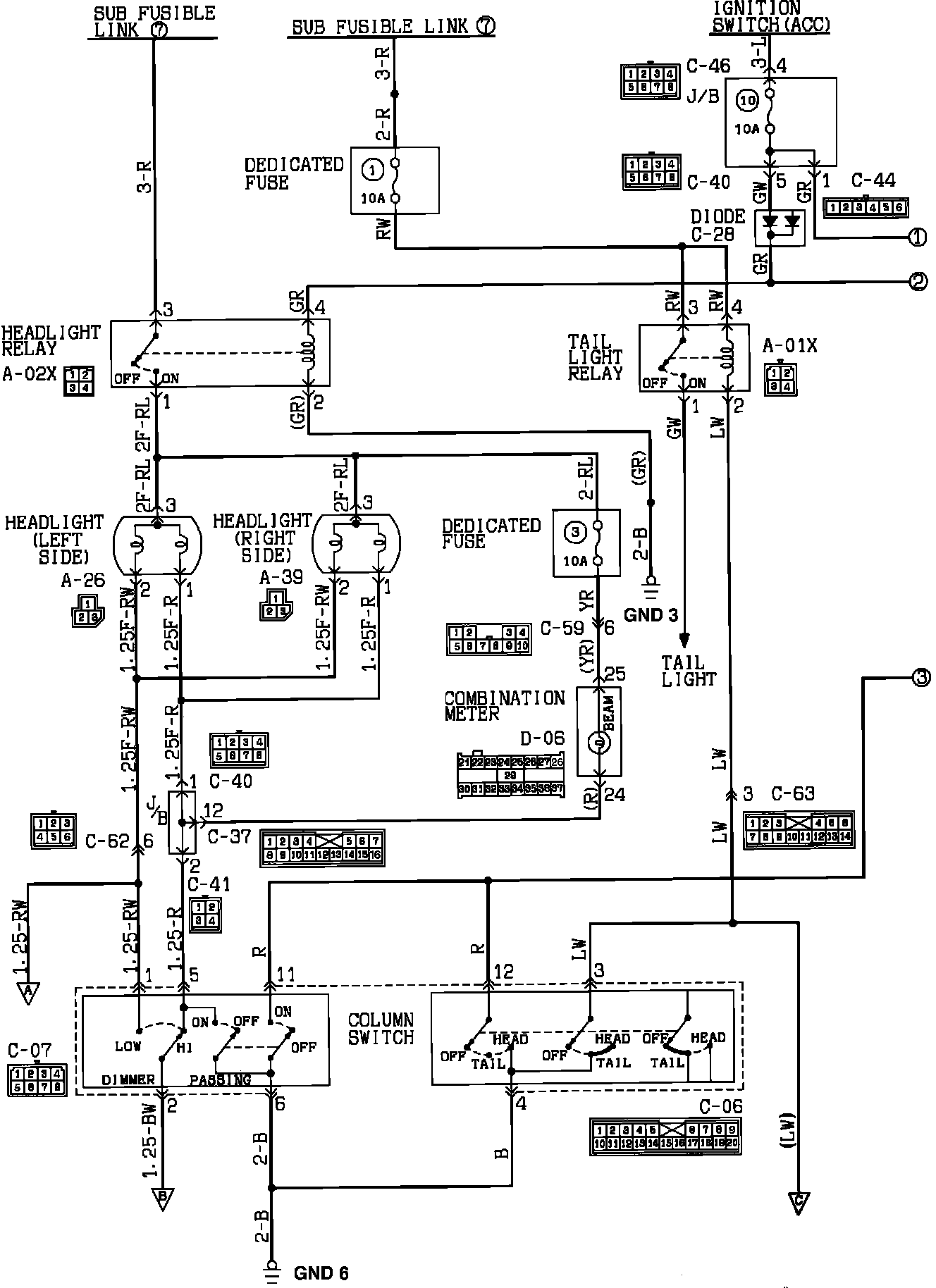

Headlamp W/Anti-Theft Alarm & Daytime Running Lights:

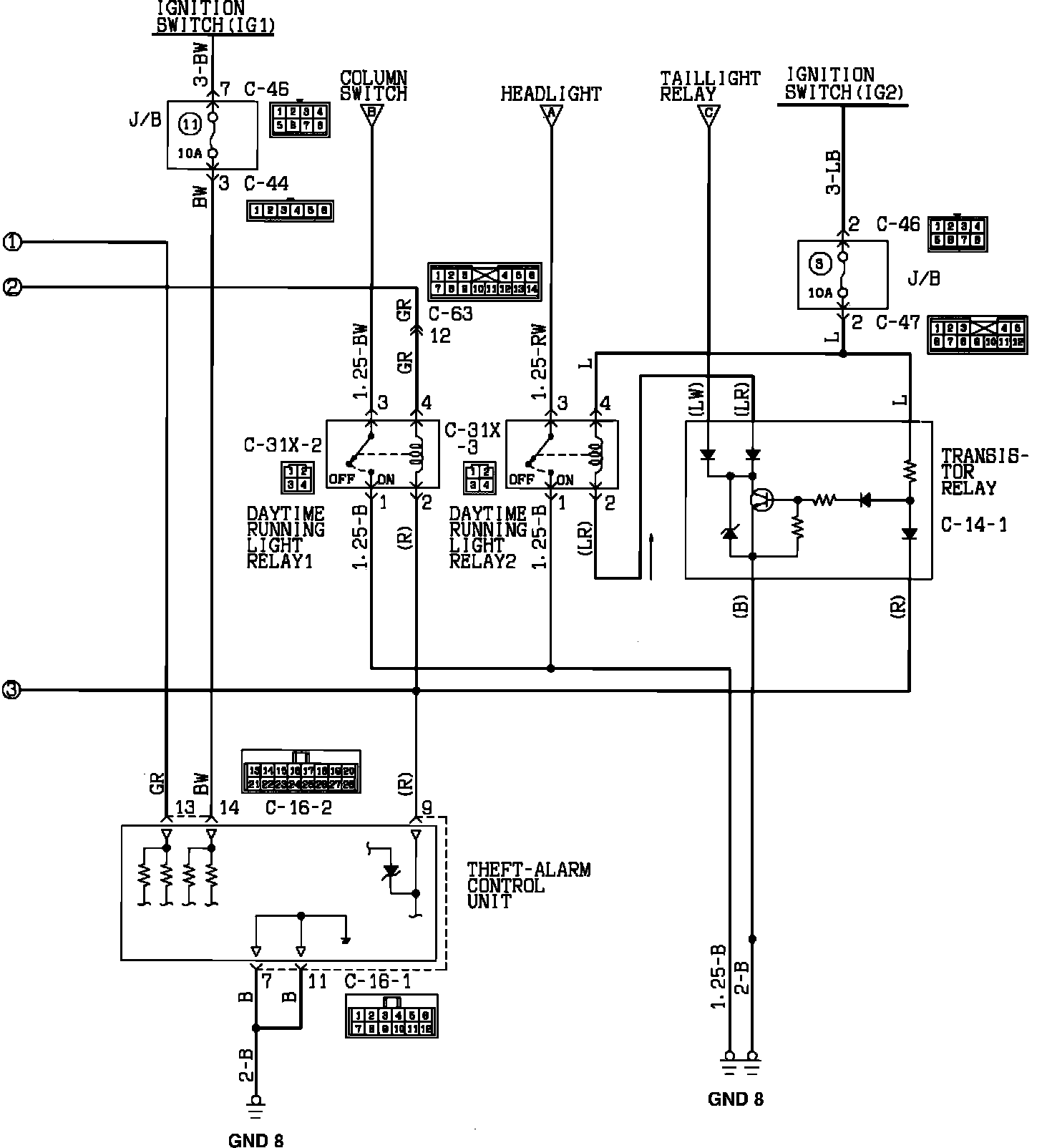

Headlamp W/Anti-Theft Alarm & Daytime Running Lights:
