Home >> Eagle >> 1990 >> Talon AWD L4-1997cc 2.0L DOHC Turbo >> Repair and Diagnosis >> Diagrams >> Electrical Diagrams >> Antitheft and Alarm Systems >> With Daytime Running Light >> Part 2 of 2

Part 2 of 2

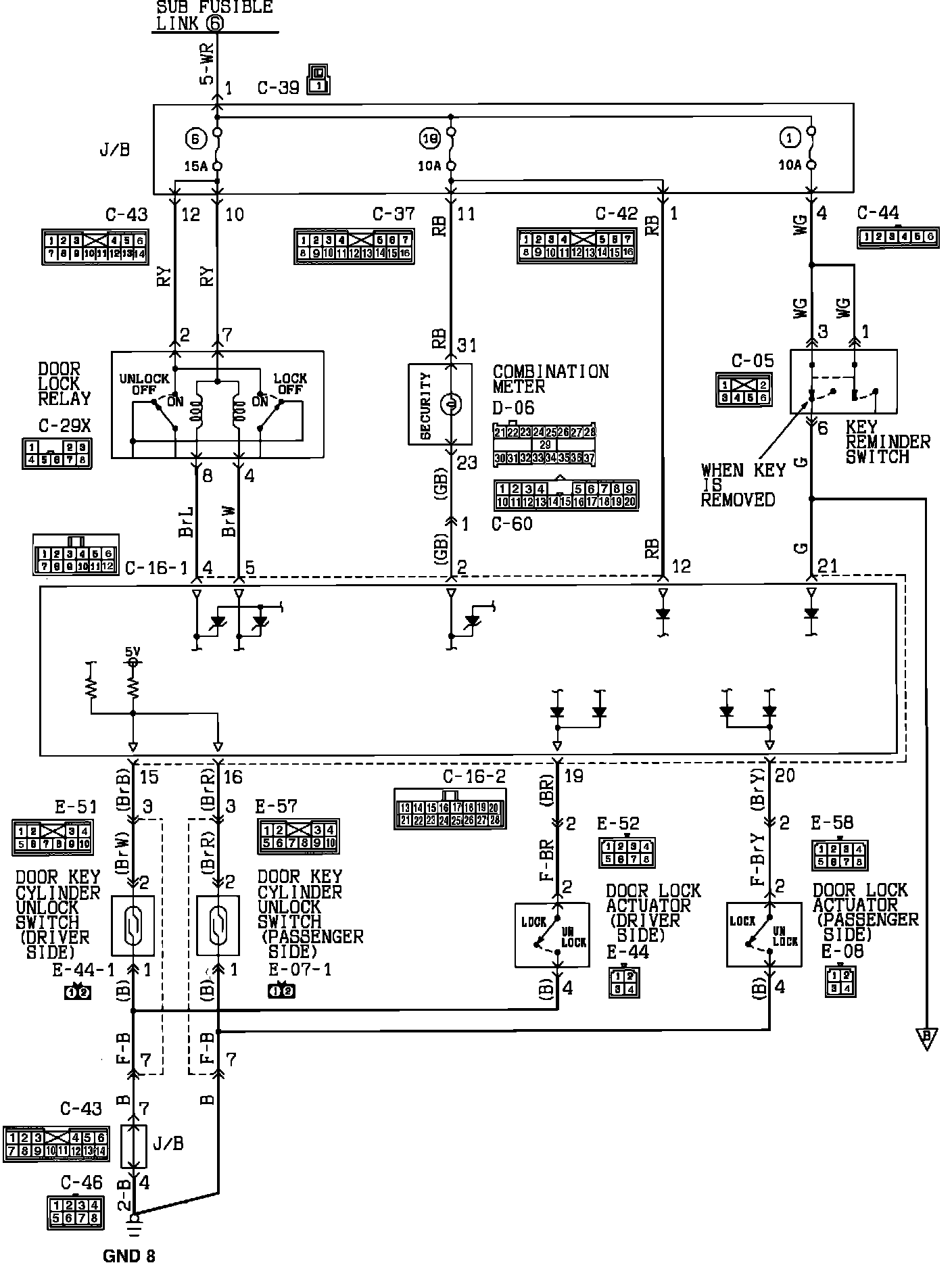

Anti-Theft Alarm W/Daytime Running Lights:

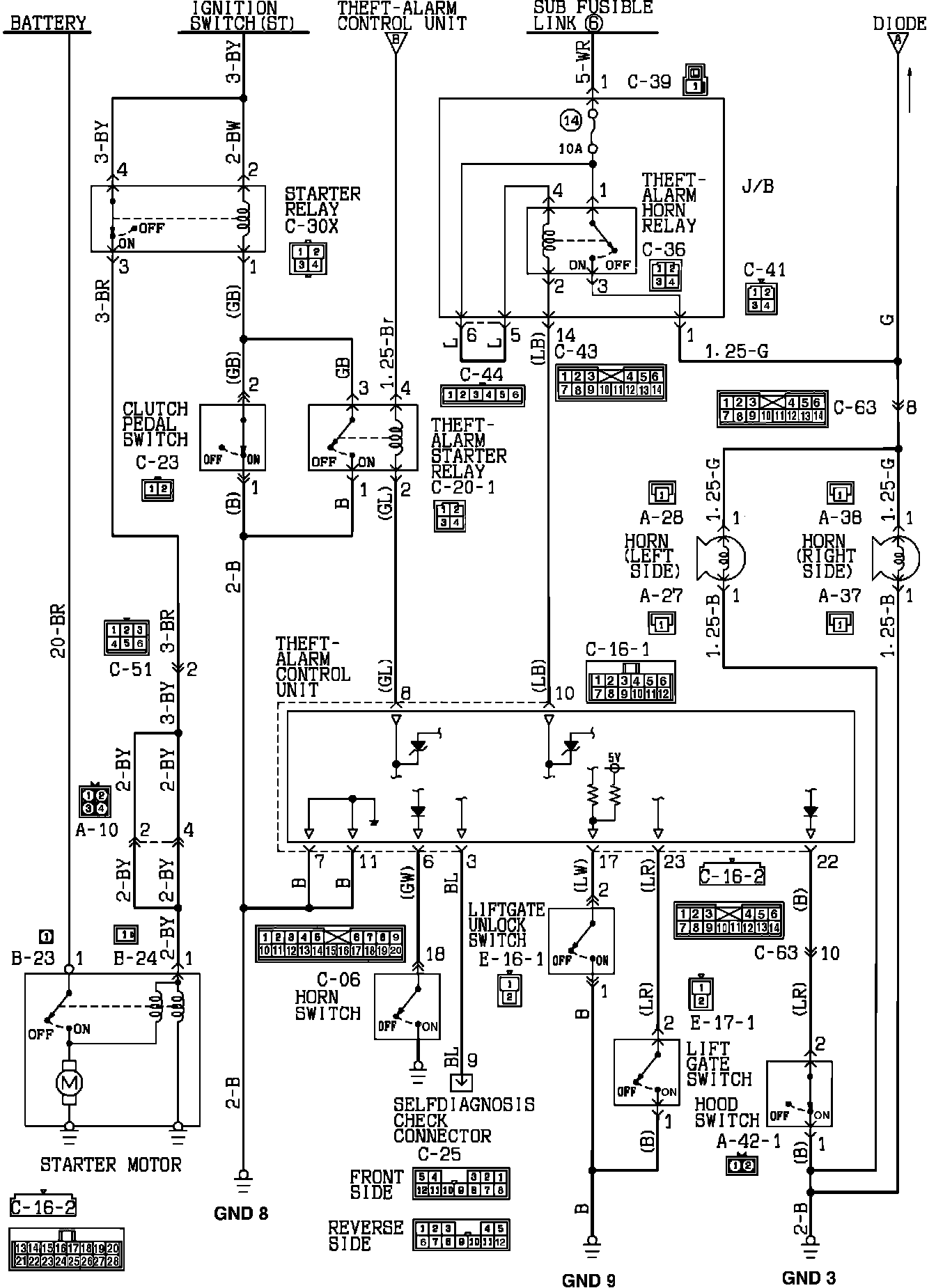

Anti-Theft Alarm W/Daytime Running Lights:
