Engine Compartment Connector Locations

Transaxle Harness Connections:

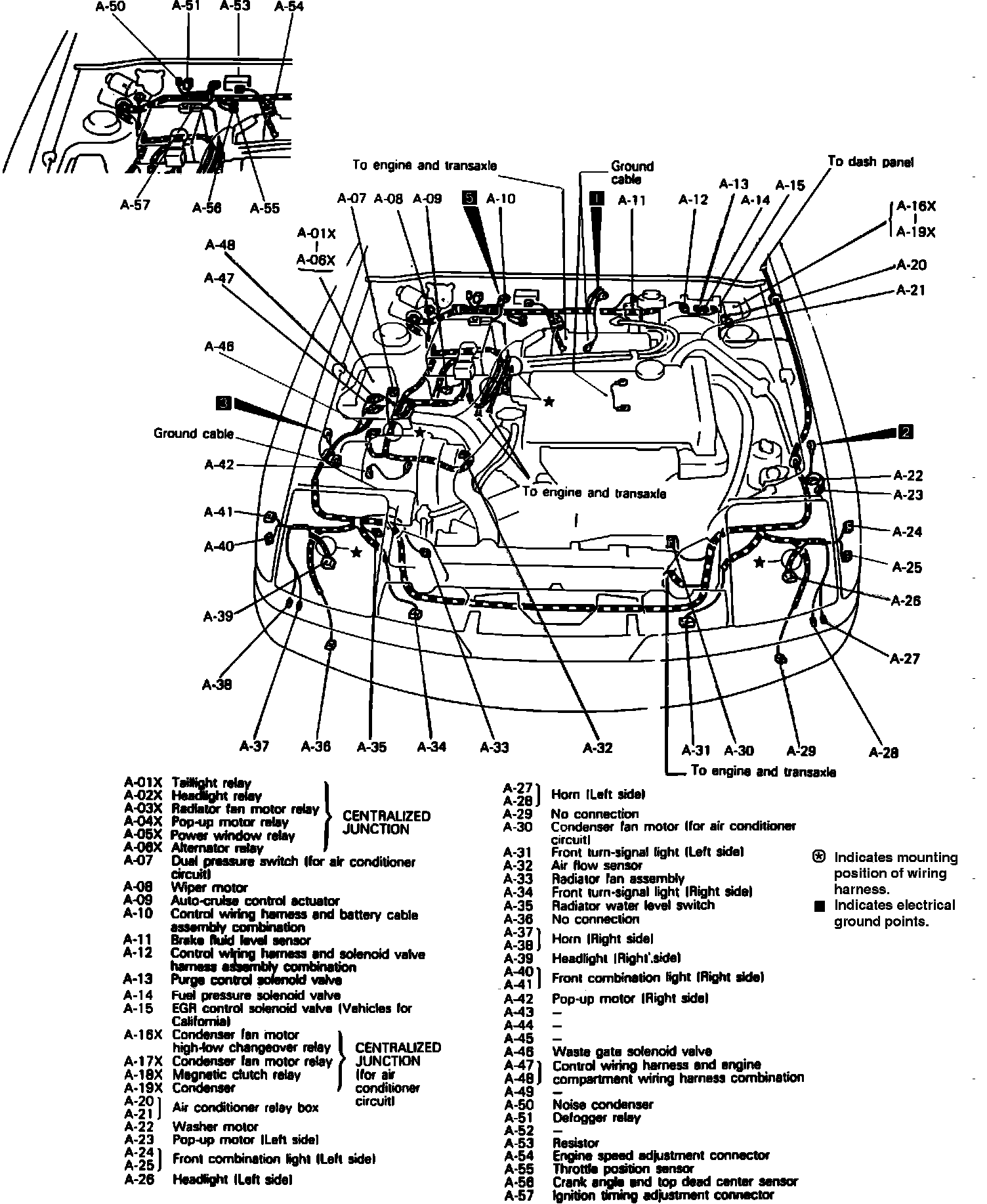

Engine Compartment Harness Connections For Turbo Models:
