Symptom Related Diagnostic Procedures

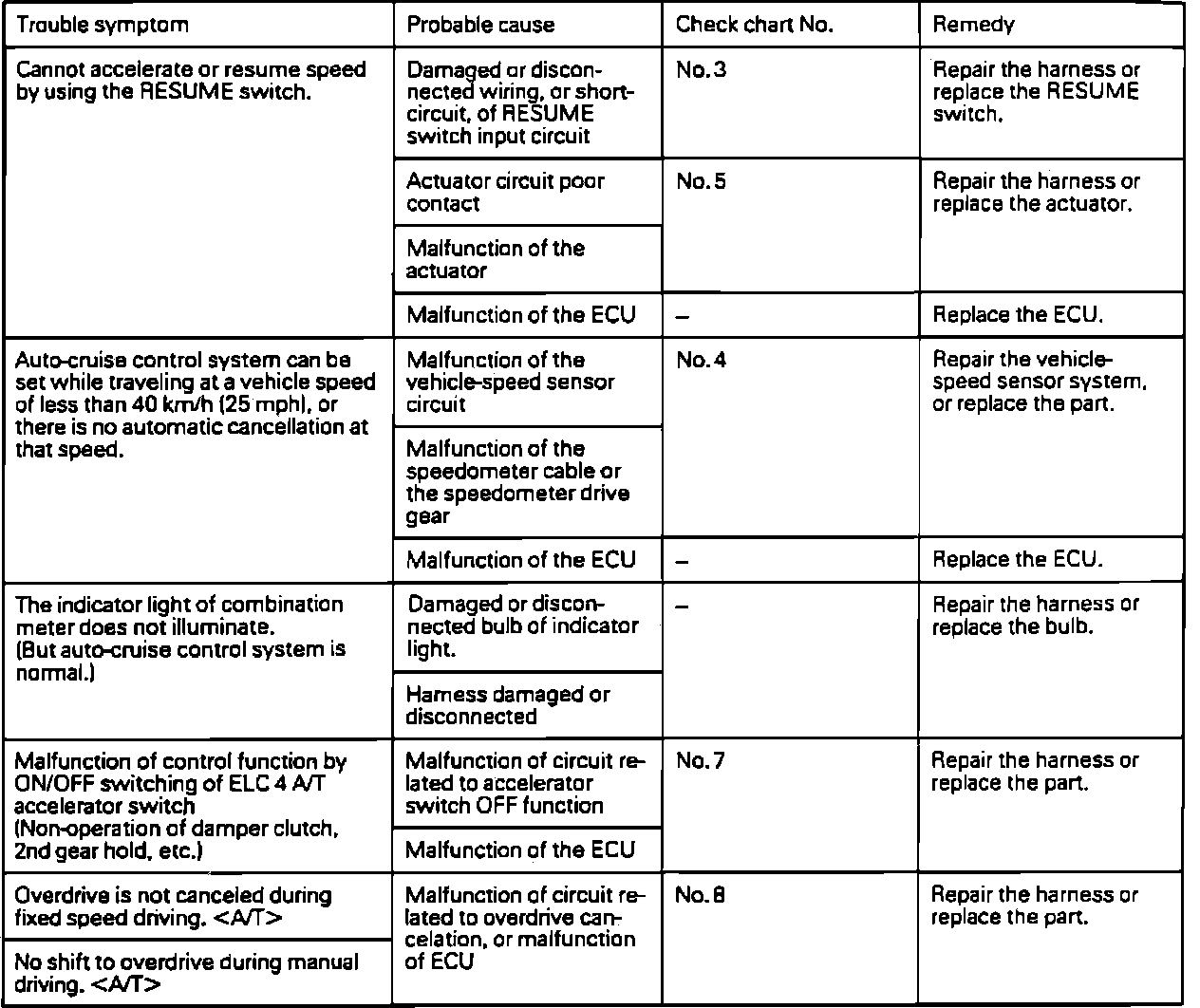

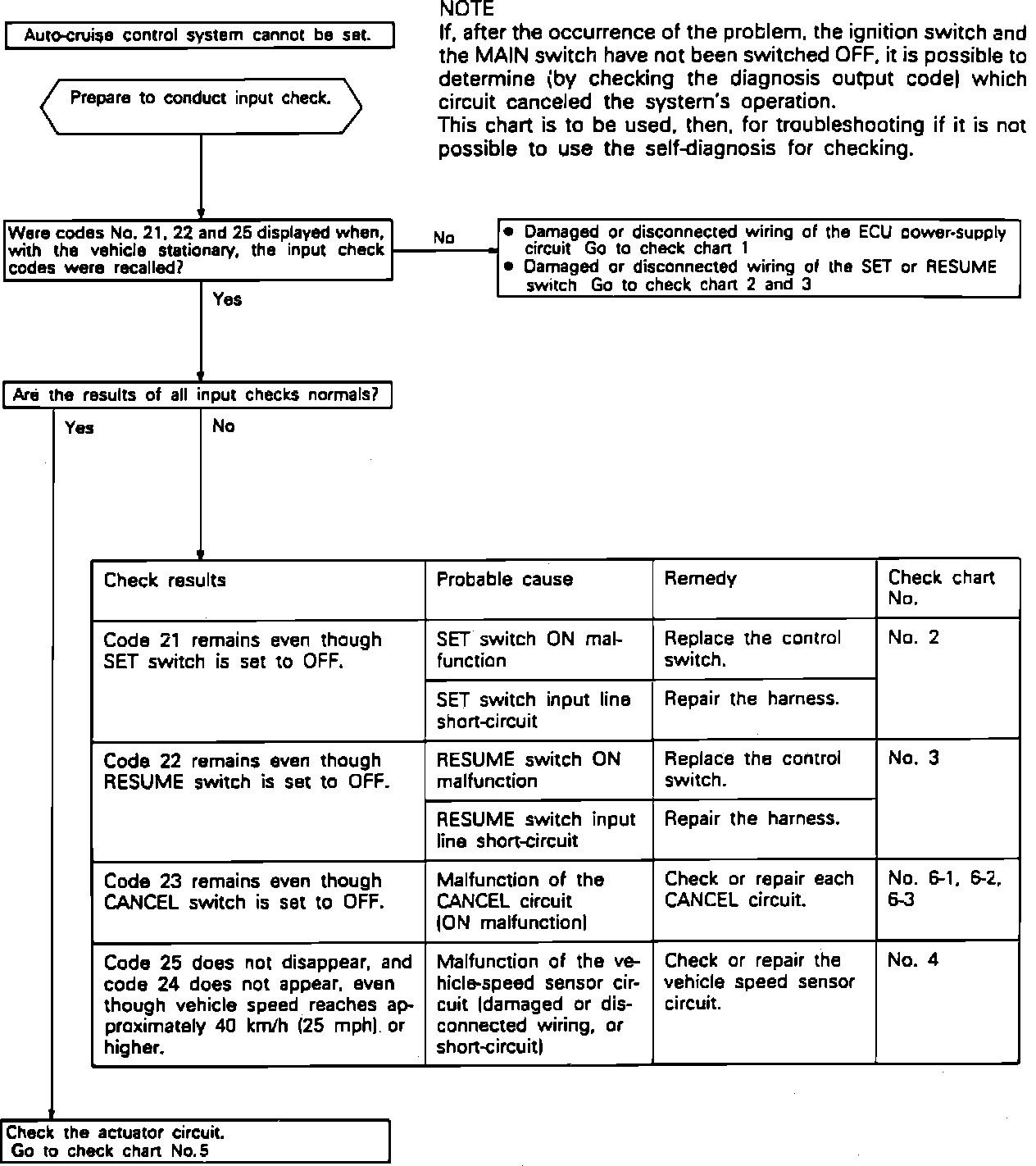

Fig. 71 Symptom Diagnosis Chart (Part 1 Of 4):

Fig. 71 Symptom Diagnosis Chart (Part 2 Of 4):

Fig. 71 Symptom Diagnosis Chart (Part 3 Of 4):

Fig. 71 Symptom Diagnosis Chart (Part 4 Of 4):

Refer to the appropriate circuit check chart indicated. Refer to Cruise Control/Testing and Inspection/Procedures/Diagnostic Charts.
