Home >> Eagle >> 1990 >> Talon AWD L4-1997cc 2.0L DOHC Turbo >> Repair and Diagnosis >> Cruise Control >> Diagrams >> Electrical Diagrams >> With Manual Transmission >> Vehicles Built Up to April 1989

Vehicles Built Up to April 1989

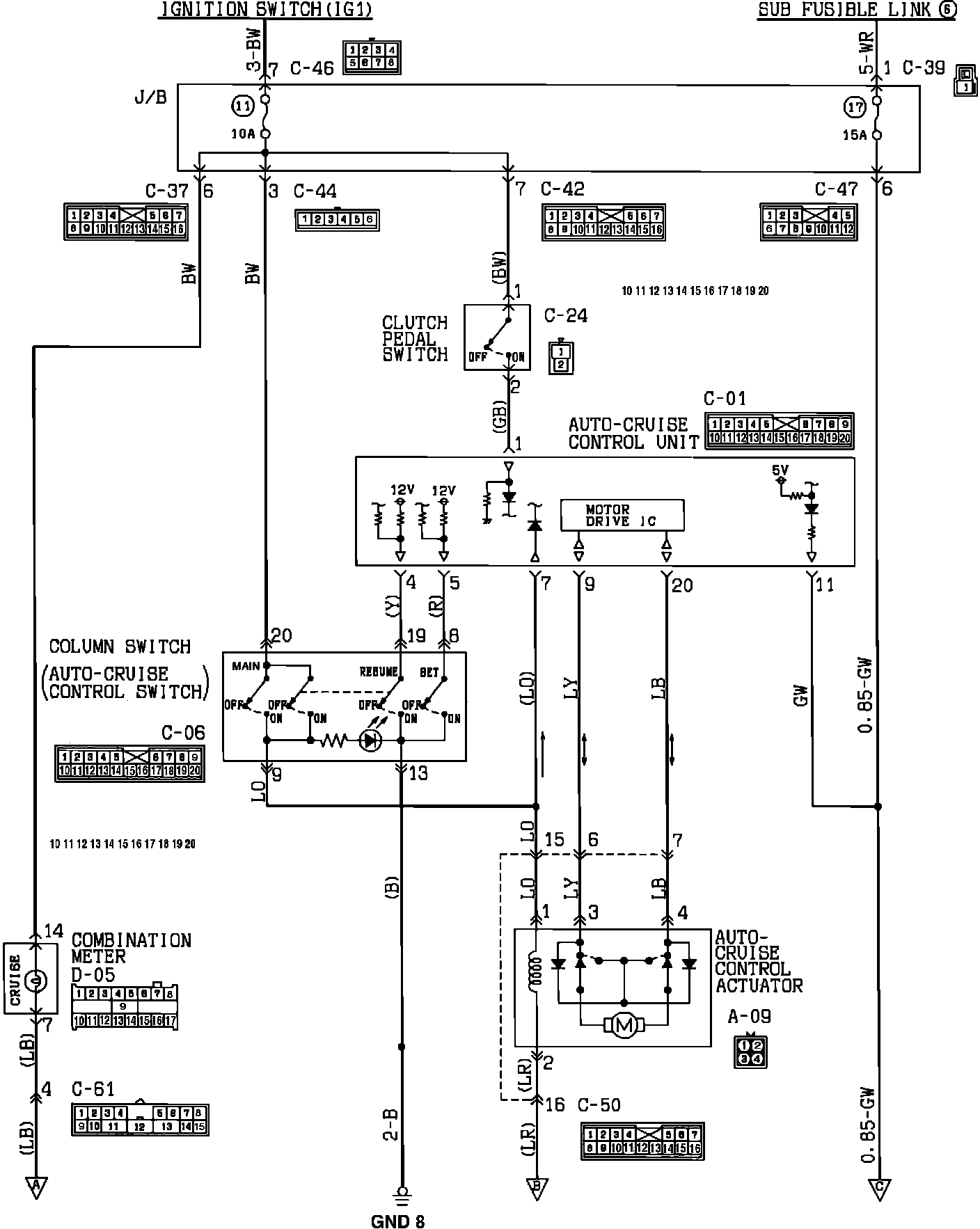

Cruise Control - Manual Transaxle:

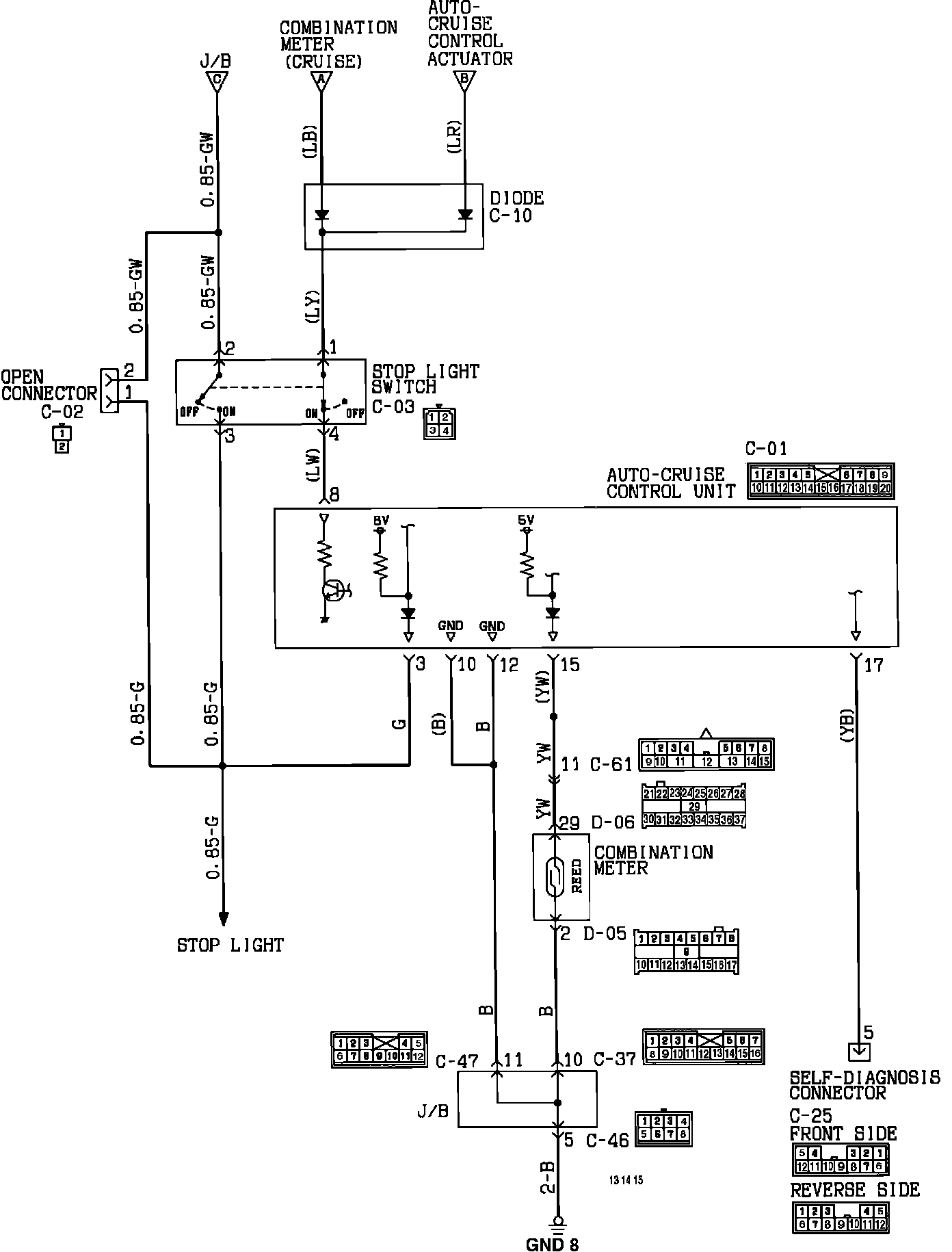

Cruise Control - Manual Transaxle:
