Sunroof / Moonroof: Service and Repair

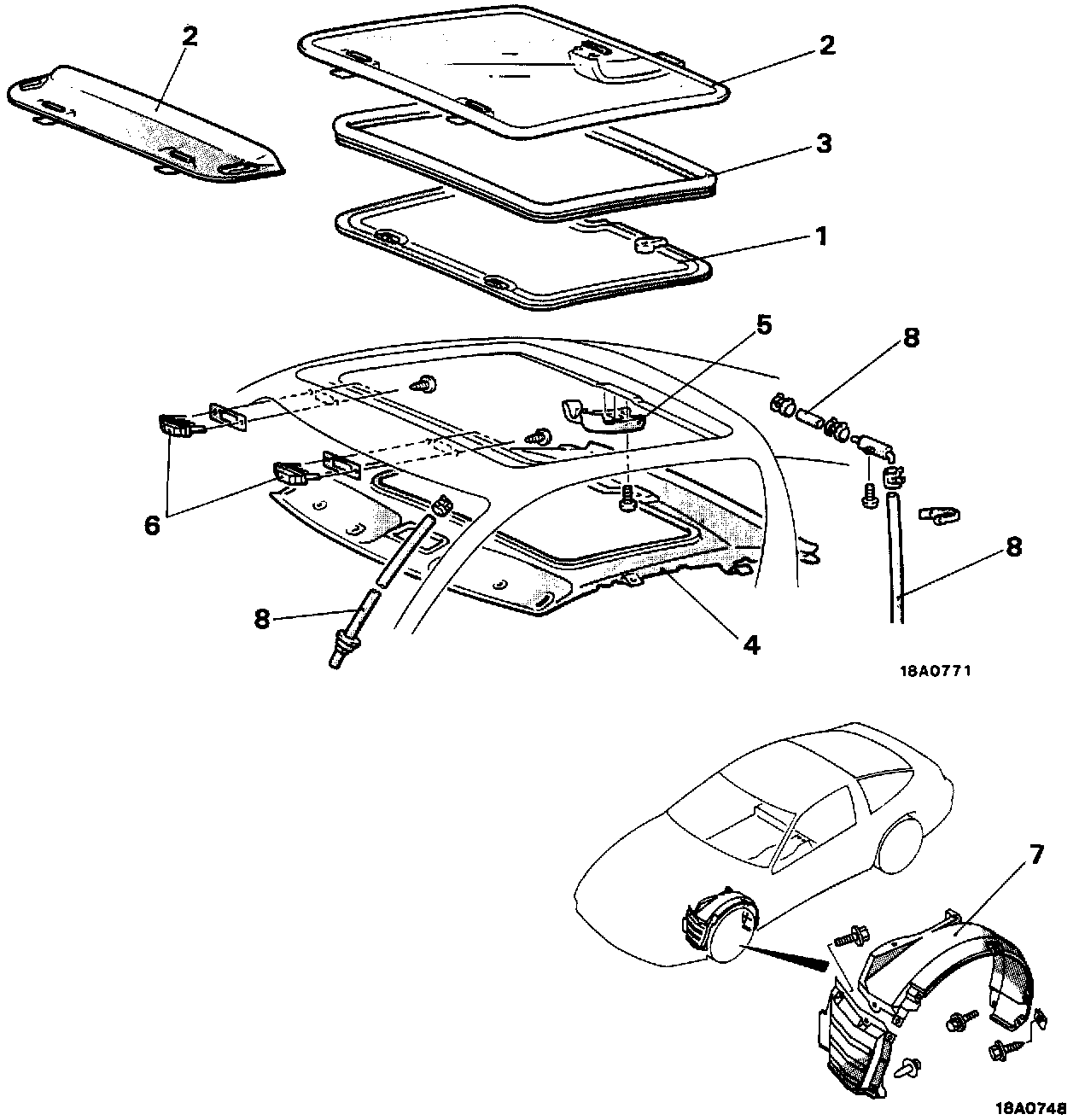

REMOVAL STEPS
1. Sunshade
2. Roof lid glass or deflector
3. Weatherstrip
4. Headlining
5. Base plate assembly
6. Hinge female assembly
7. Splash shield, Quarter trim, Center pillar trim
8. Drain hose

NOTES:
1. Reverse the removal procedures to reinstall.
2. N indicates non-reusable parts.





SERVICE POINTS OF REMOVAL
8. Removal Of Drain Hose
Tie a cord at the end of the drain hose and pull out the drain hose toward the vehicle interior.

SERVICE POINTS OF INSTALLATION
8. Installation Of Drain Hose





1. Tie the cord (passed through at the time of removal) to the end of the drain hose.
2. Pull the cord and pass the drain hose through.





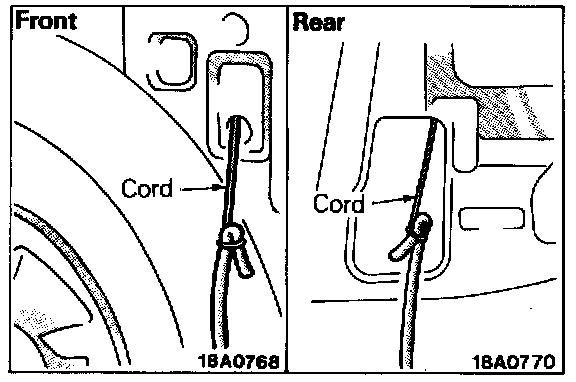

3. Install the grommet at the front side, and install so that the amount of projection of the drain hose is as shown in the figure.
