FREE REPAIR MANUALS & LABOR GUIDES 1982-2013 Vehicles
Courtesy of Operation CHARM
:
Car repair manuals for everyone.
Home
>>
Eagle
>>
1990
>>
Talon AWD L4-1997cc 2.0L DOHC Turbo
>>
Repair and Diagnosis
>>
Body and Frame
>>
Locks
>>
Door Locks
>>
Diagrams
>>
Electrical Diagrams
>>
W/Anti-Theft Alarm
W/Anti-Theft Alarm

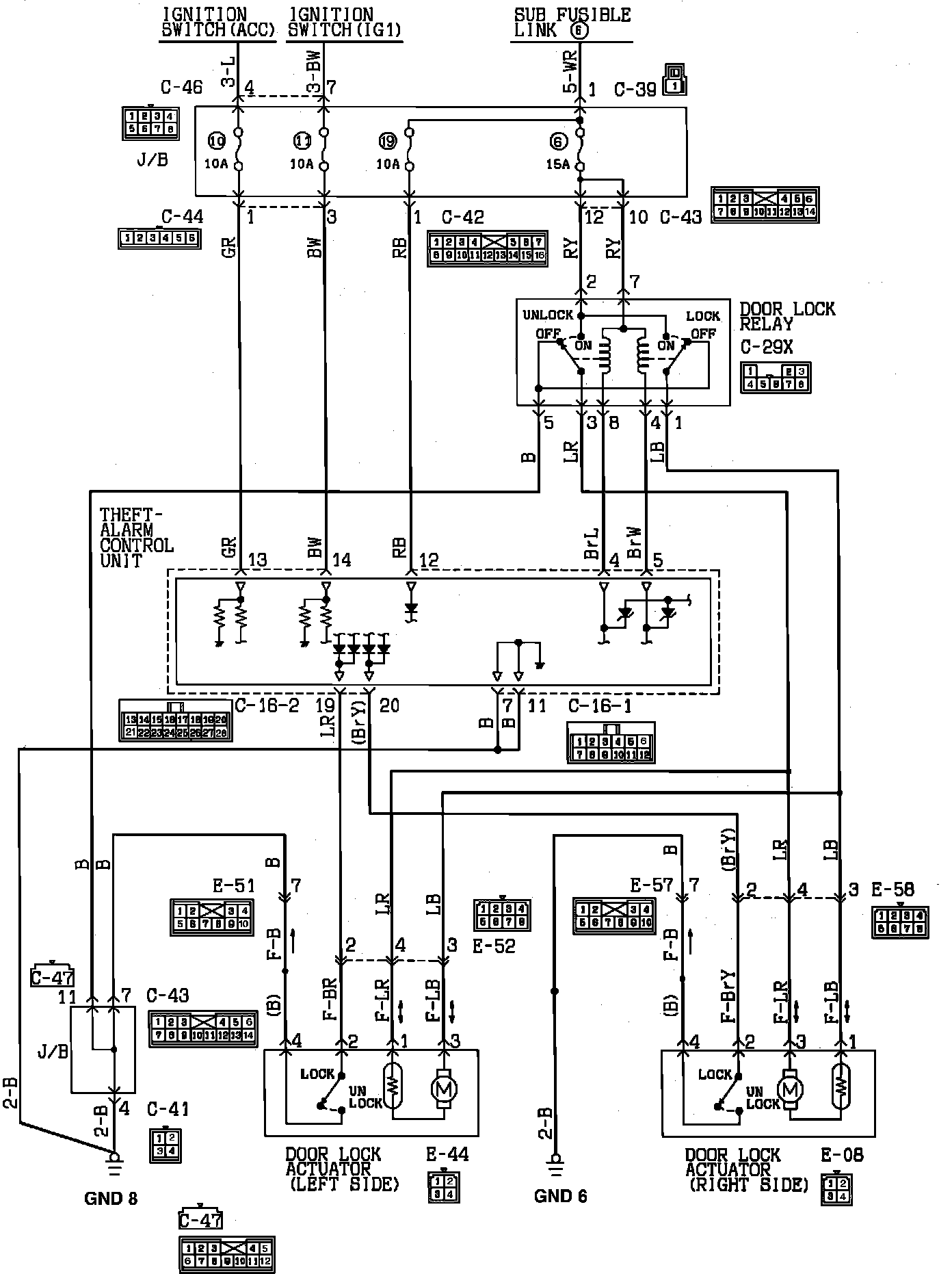

Power Door Lock W/Anti-Theft Alarm:
