Front Door Latch: Service and Repair

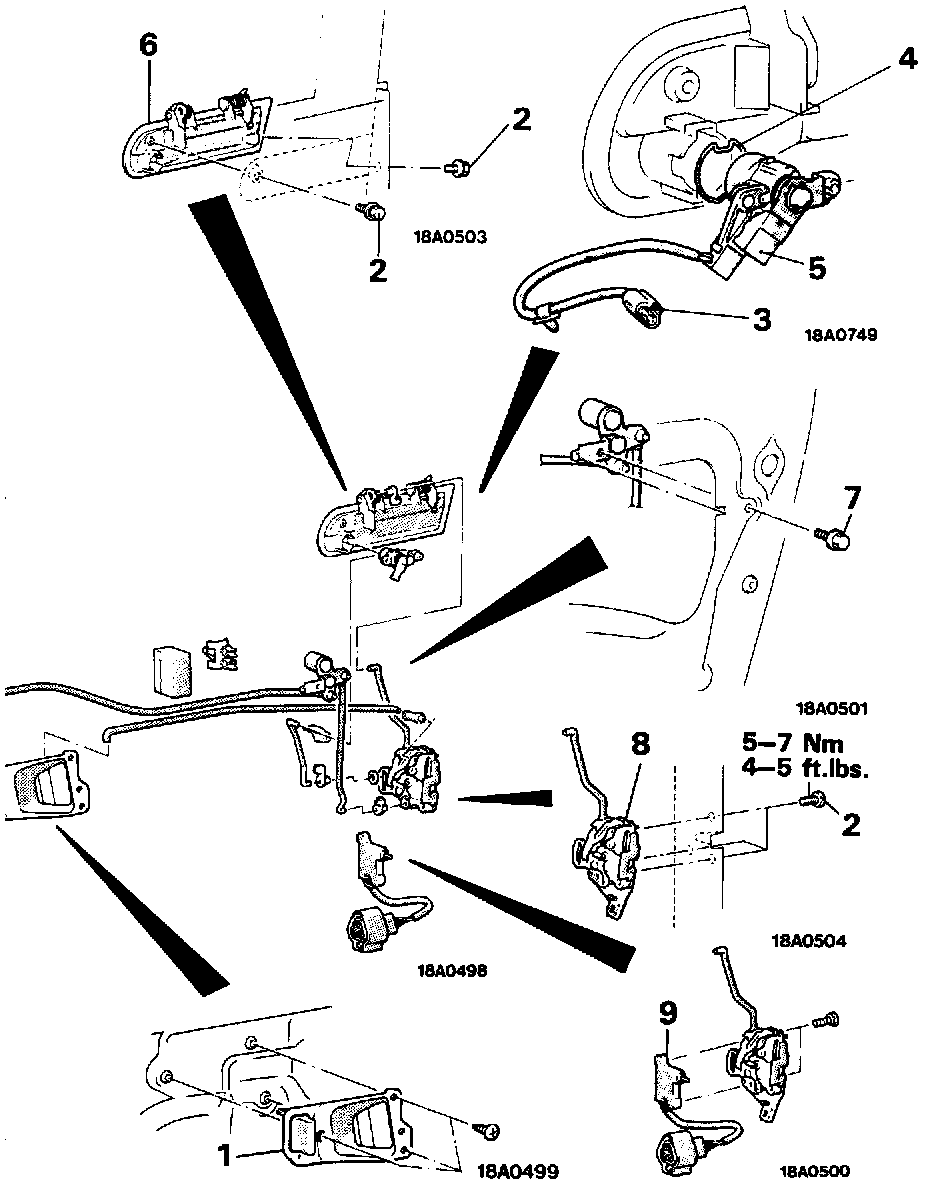

DOOR INSIDE HANDLE REMOVAL
- Door Inside Handle Play Check
1. Door inside handle

DOOR OUTSIDE HANDLE AND LATCH REMOVAL STEPS
- Door Outside Handle Play Check
2. Bolt
3. Door key cylinder unlock switch connector (Vehicles with theft-alarm system)
4. Ring
5. Door lock key cylinder
6. Door outside handle
7. Bellcrank holder mounting bolt
8. Door latch assembly
9. Door latch switch (Vehicles for U.S.)
