Gauge Pack Identification

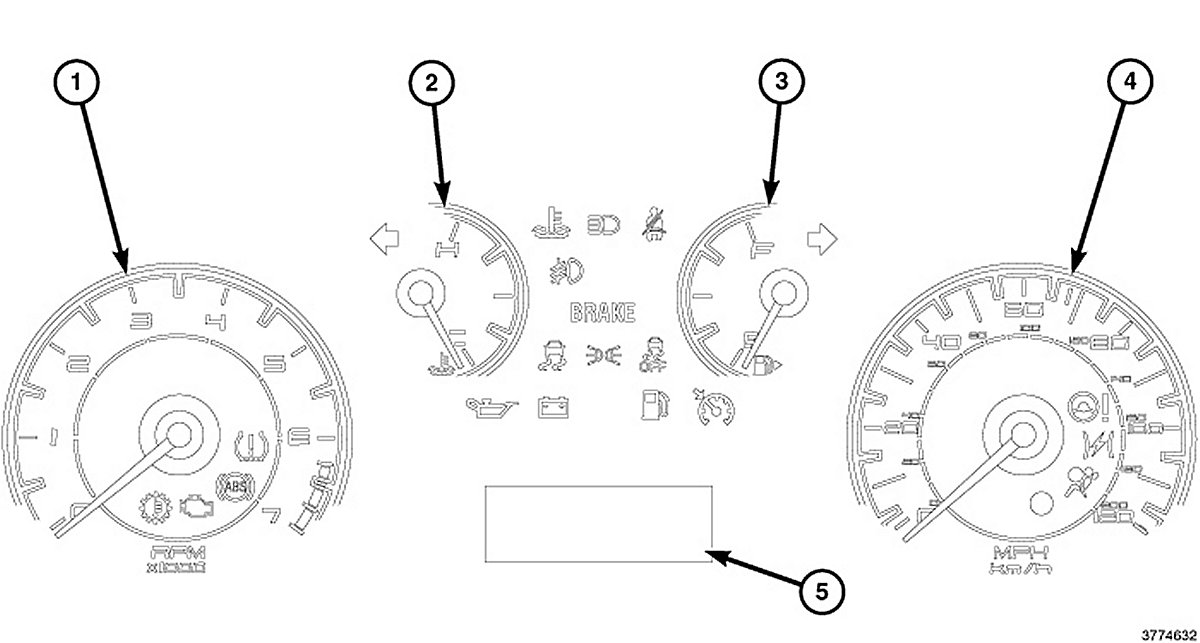

Base Instrument Cluster

Base Instrument Cluster:

Besides an electronic display unit (5), the BASE IC for this vehicle includes the following analog gauges:

- Engine Temperature Gauge (2)
- Fuel Gauge (3)
- Speedometer (4)
- Tachometer (1)

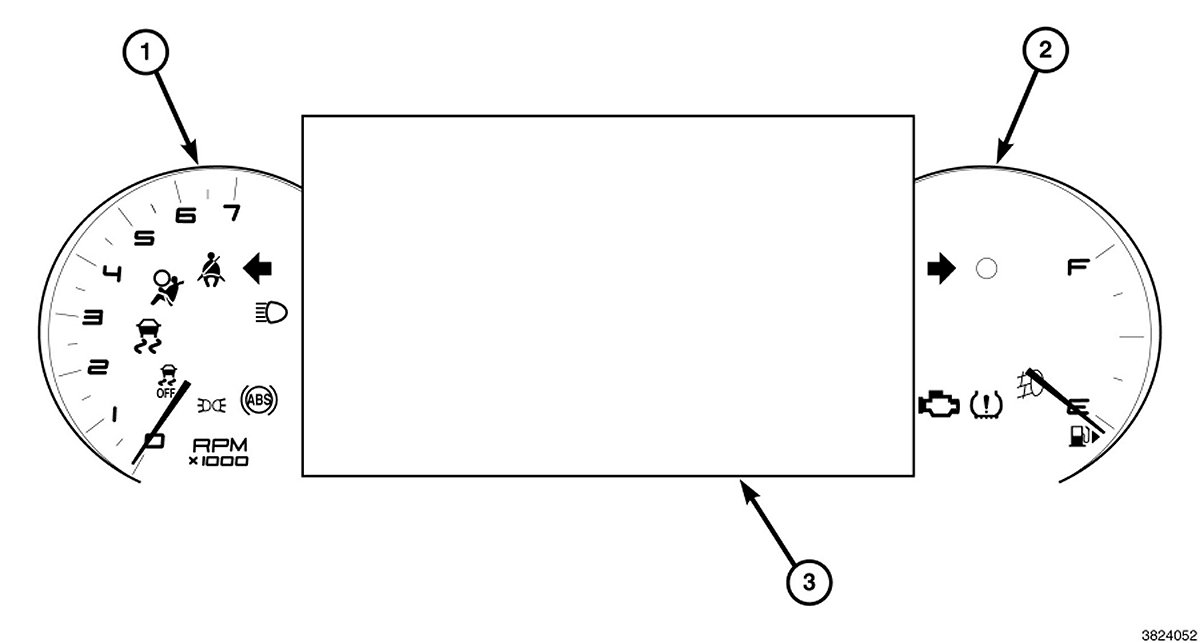

Premium Instrument Cluster

Premium Instrument Cluster:

Besides an electronic display unit (3), the Premium IC for this vehicle includes the following analog gauges:

- Fuel Gauge (2)
- Tachometer (1)
