Home >> Dodge >> 2013 >> Charger AWD V6-3.6L >> Repair and Diagnosis >> Starting and Charging >> Power and Ground Distribution >> Fuse >> Locations >> Rear

Rear

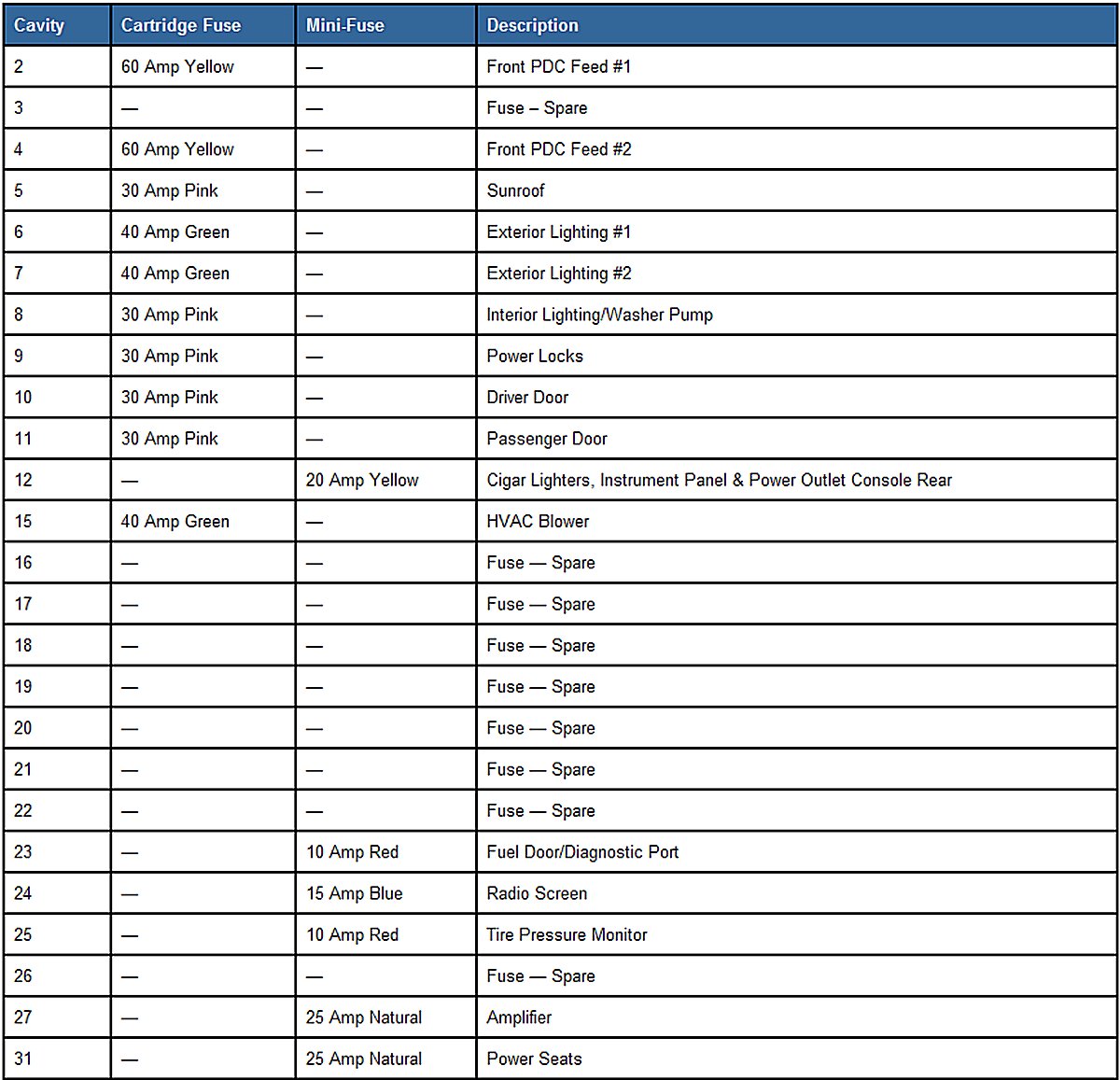

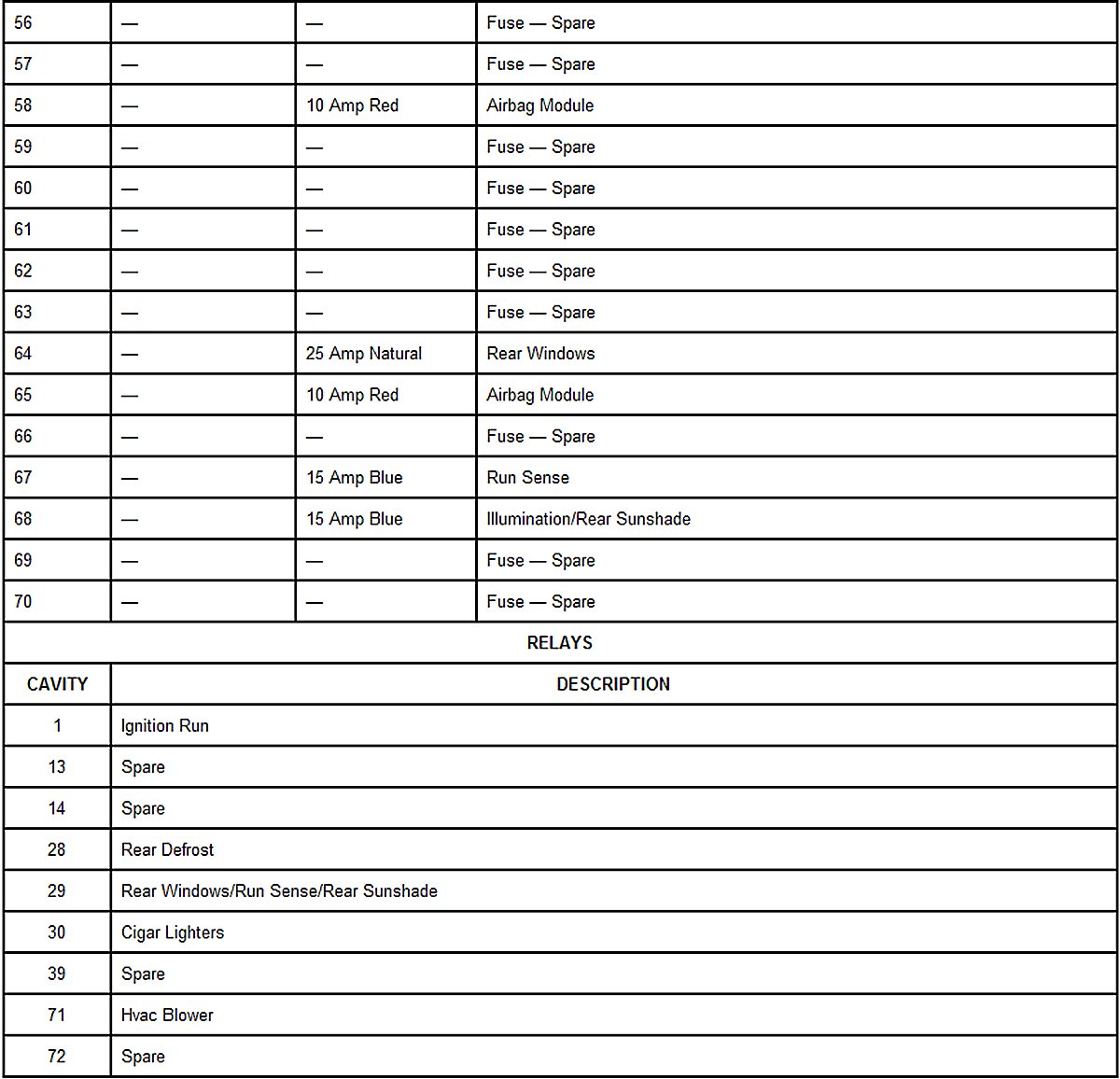

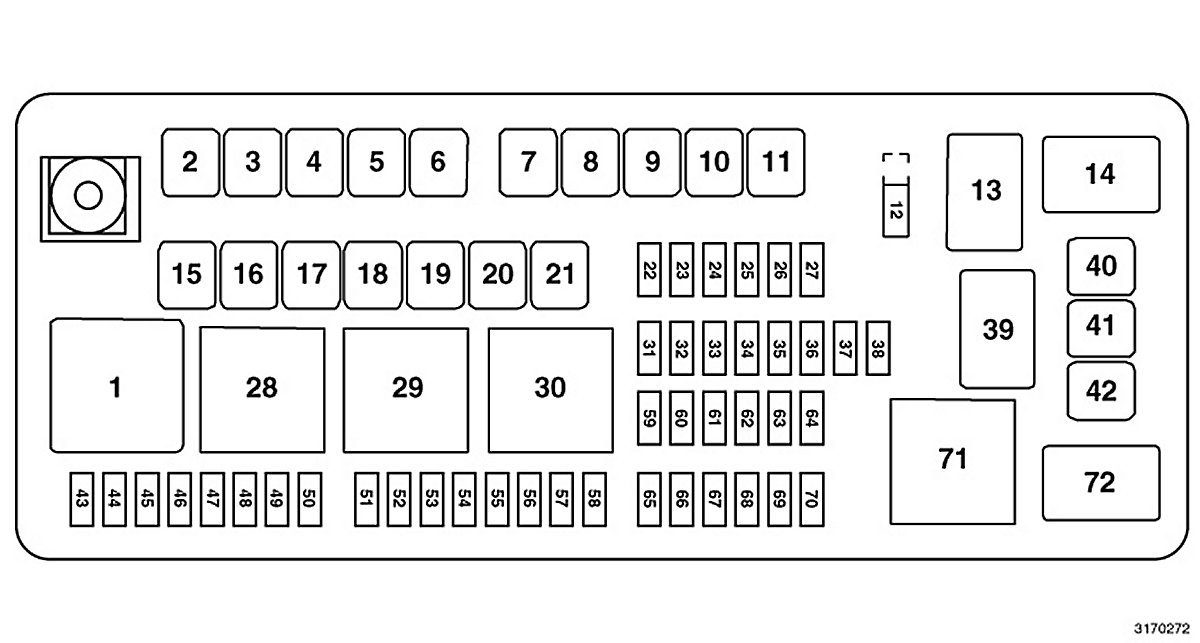

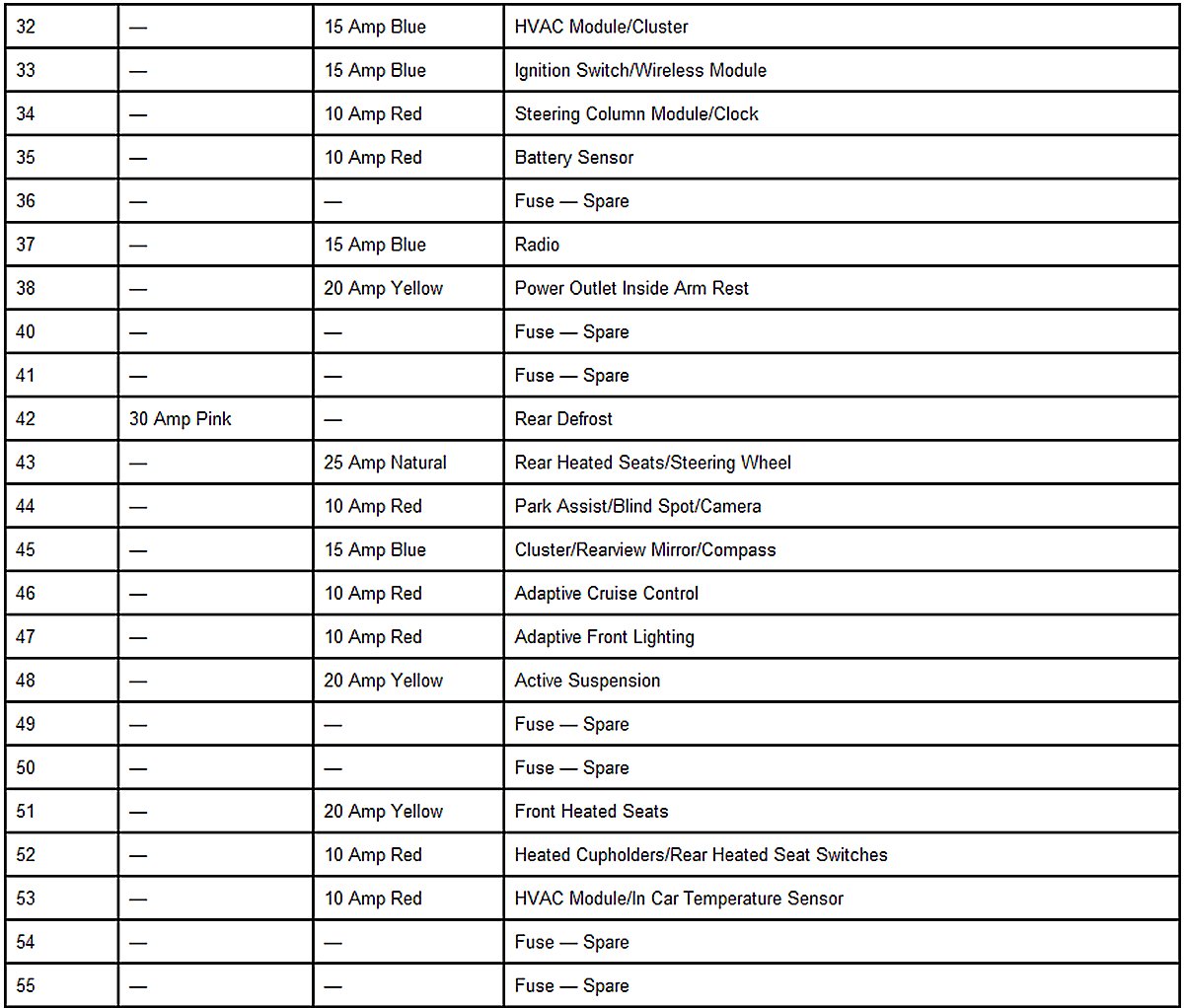

Rear Distribution Center

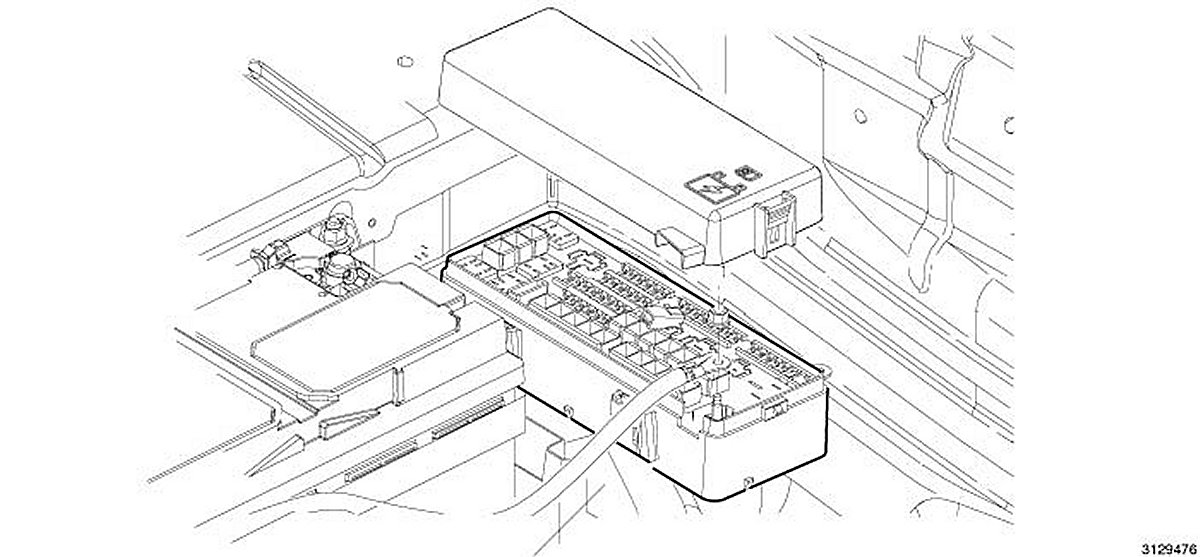

Rear PDC Location:






Rear PDC is located in the trunk next to the battery.
