Particulate Air Filter - Removal

REMOVAL

NOTE: LHD model shown in illustrations. RHD model similar.

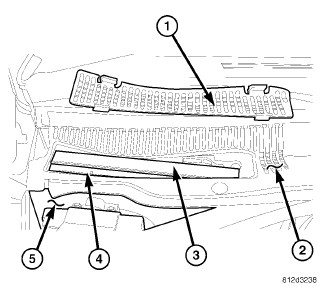

1. Remove the air inlet grille (1) from the wiper module screen (2) located near the dash panel in the engine compartment.
2. Open the filter door (3) on the top of the particulate air filter housing (4) located inside of the dash panel plenum (5).






NOTE: To aid in reinstallation, note the installed position of the particulate air filter prior to removal of the filter.

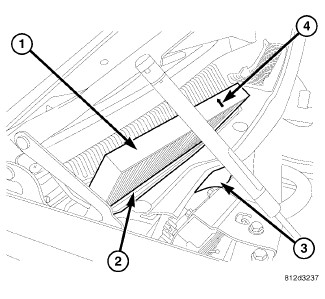

3. Remove the particulate air filter (1) from the particulate air filter housing (2) located inside of the dash panel plenum (3). Note the direction of air flow indicated by an arrow (4) on the filter.
