Engine Cooling Radiator - Removal

Radiator, Engine Cooling

REMOVAL

3.6L







1. Disconnect negative battery cable.

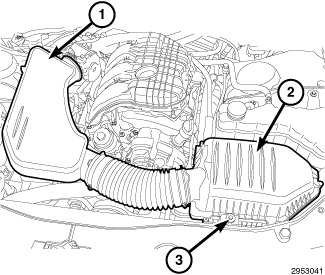

2. Remove the air intake assembly.
3. Drain cooling system.

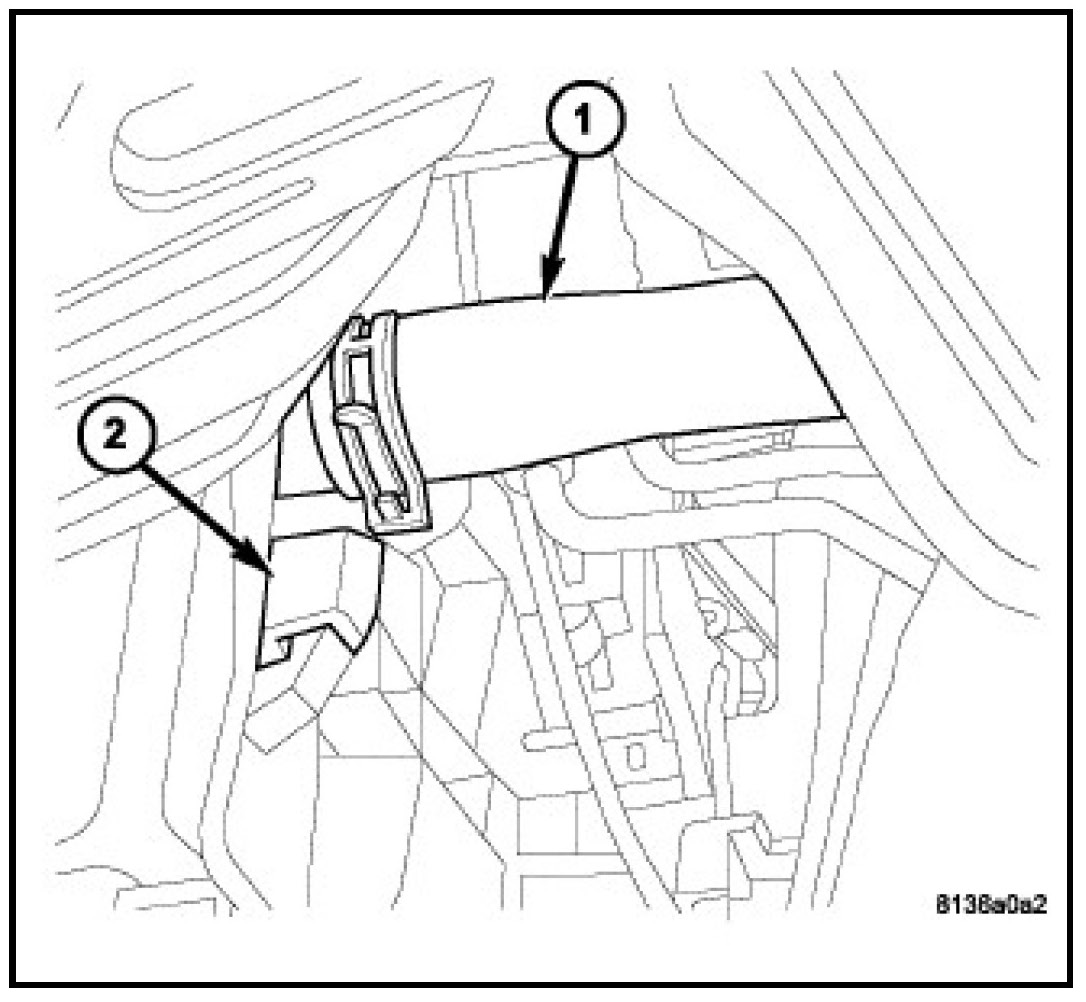

4. Remove upper radiator hose.







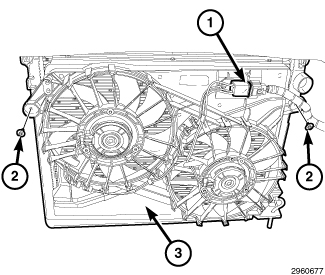

5. Remove radiator fan assembly (3).
6. Raise vehicle.







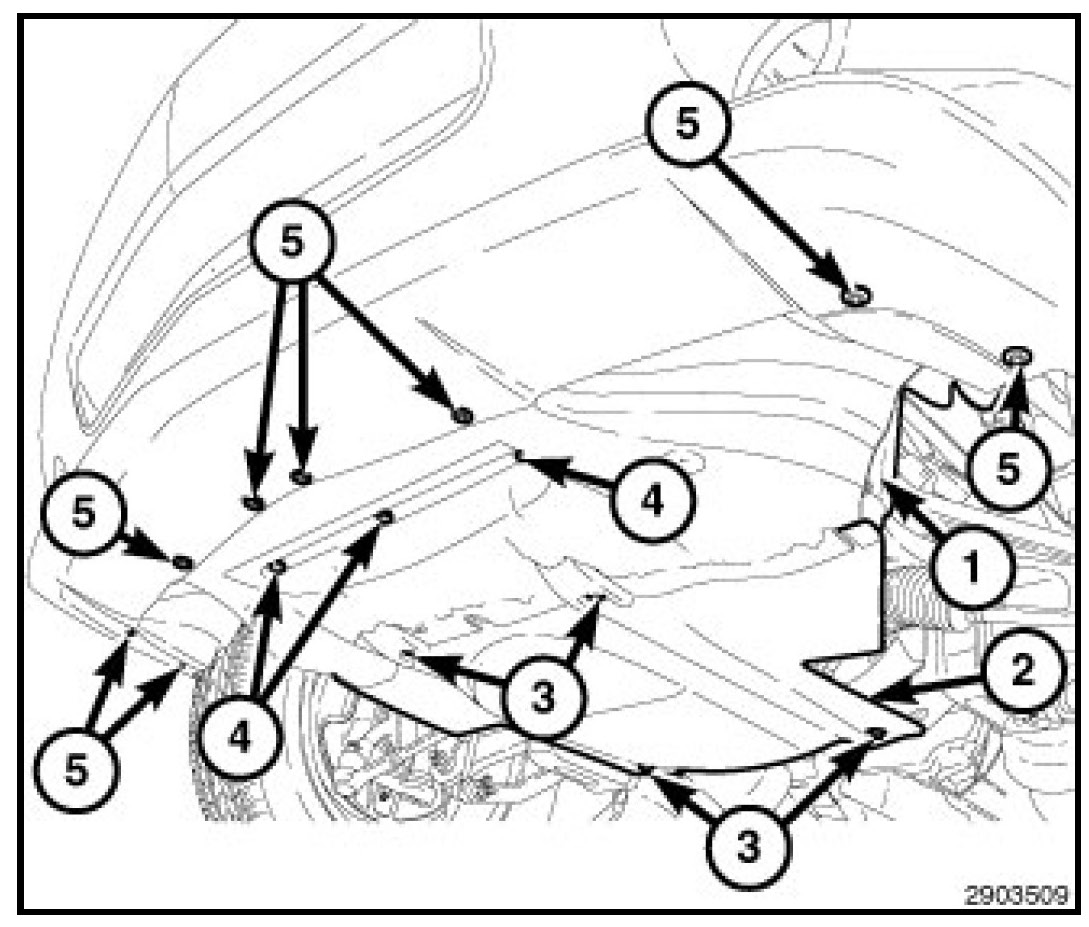

7. Remove the lower engine cover.







8. Remove lower radiator hose (1).
9. Lower vehicle.

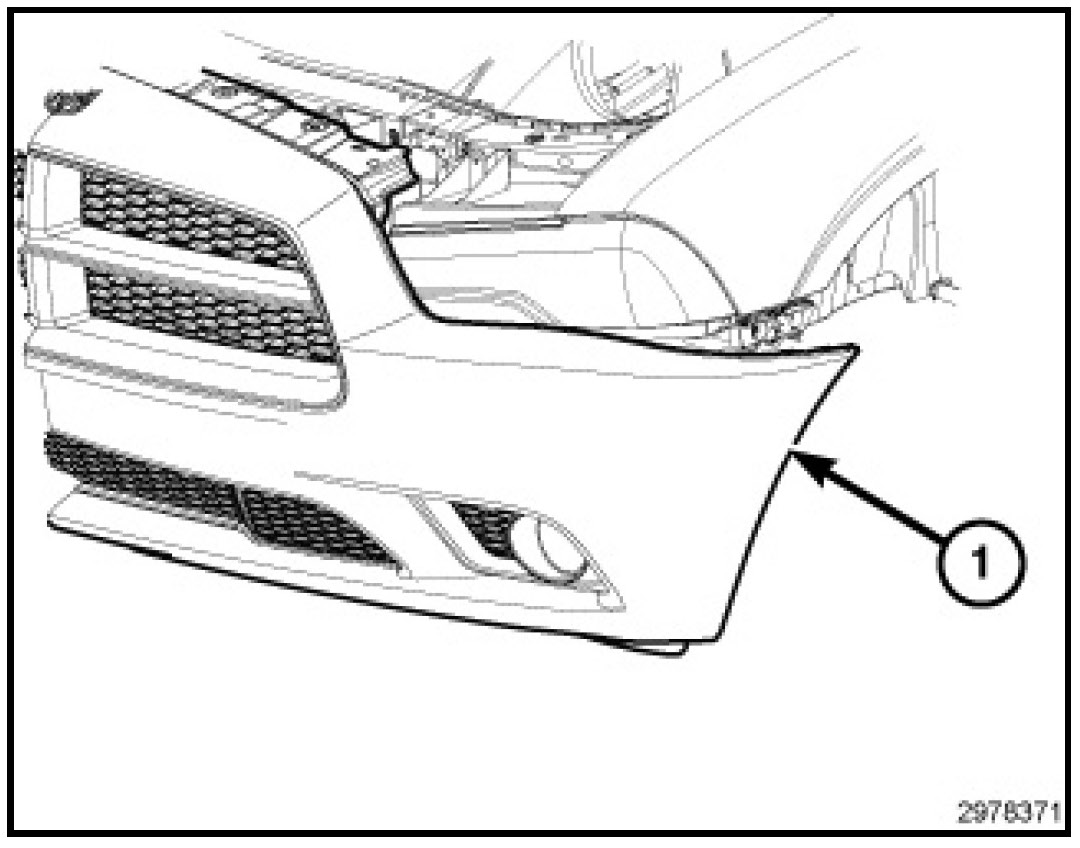

10. Remove the front bumper fascia.

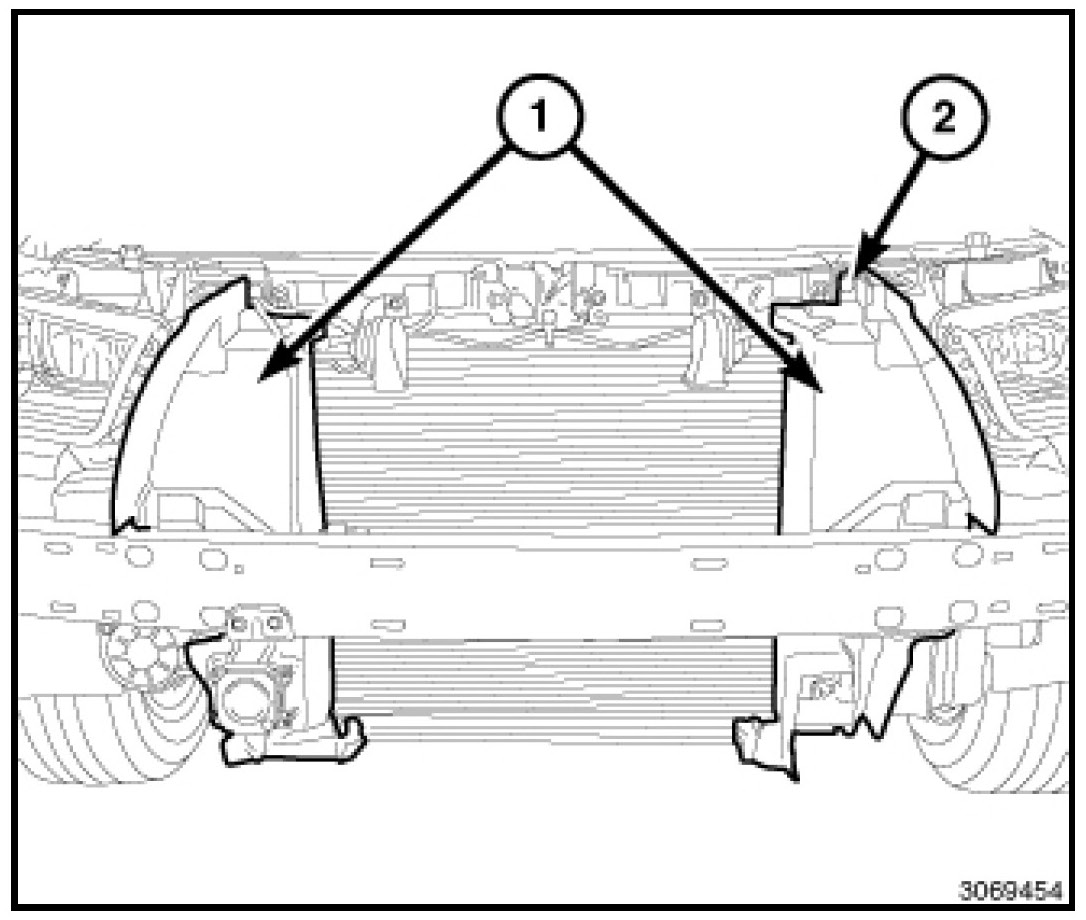

11. Remove the air deflectors (1).







CAUTION: Bolts are installed with threadlocker. Use hand tools to remove the upper radiator mounting bolts.

12. Remove upper radiator mounting brackets bolts (3).

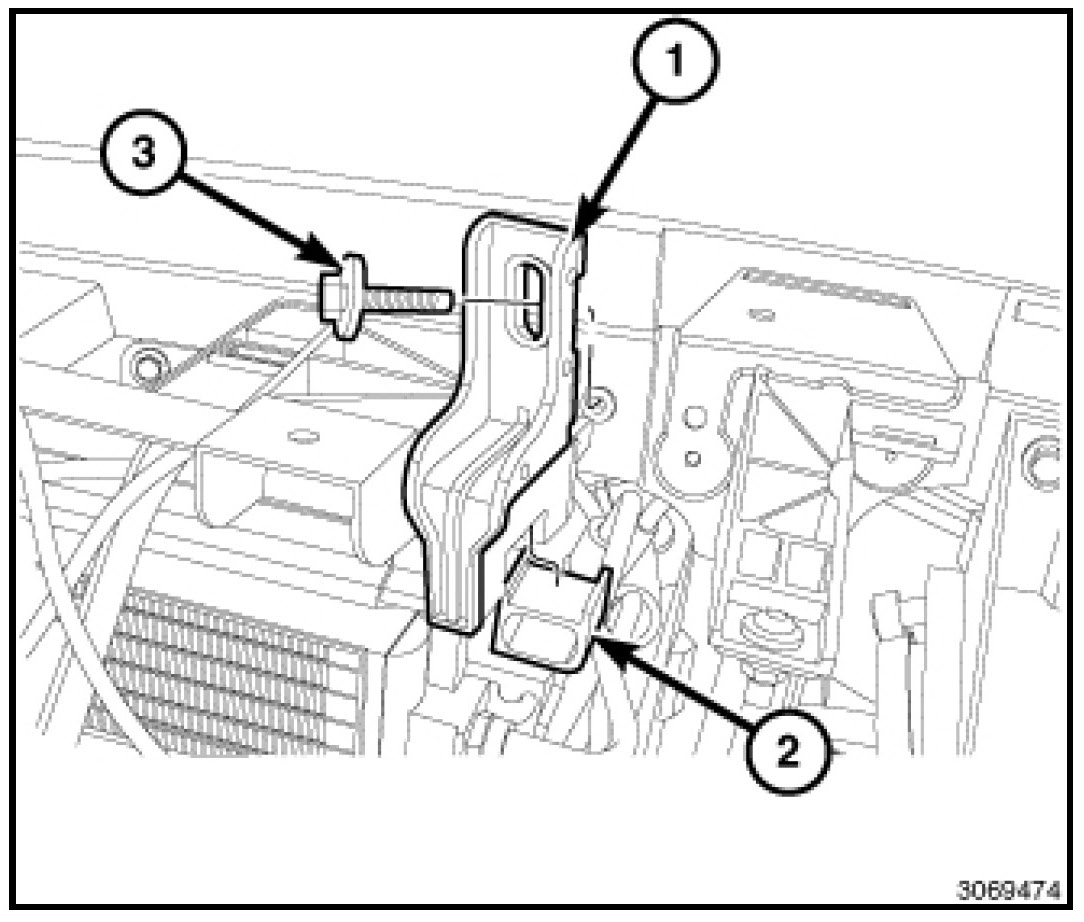

13. Remove the upper radiator brackets (1) from the radiator supports (2).







14. Remove the lower condenser mounting bolts.

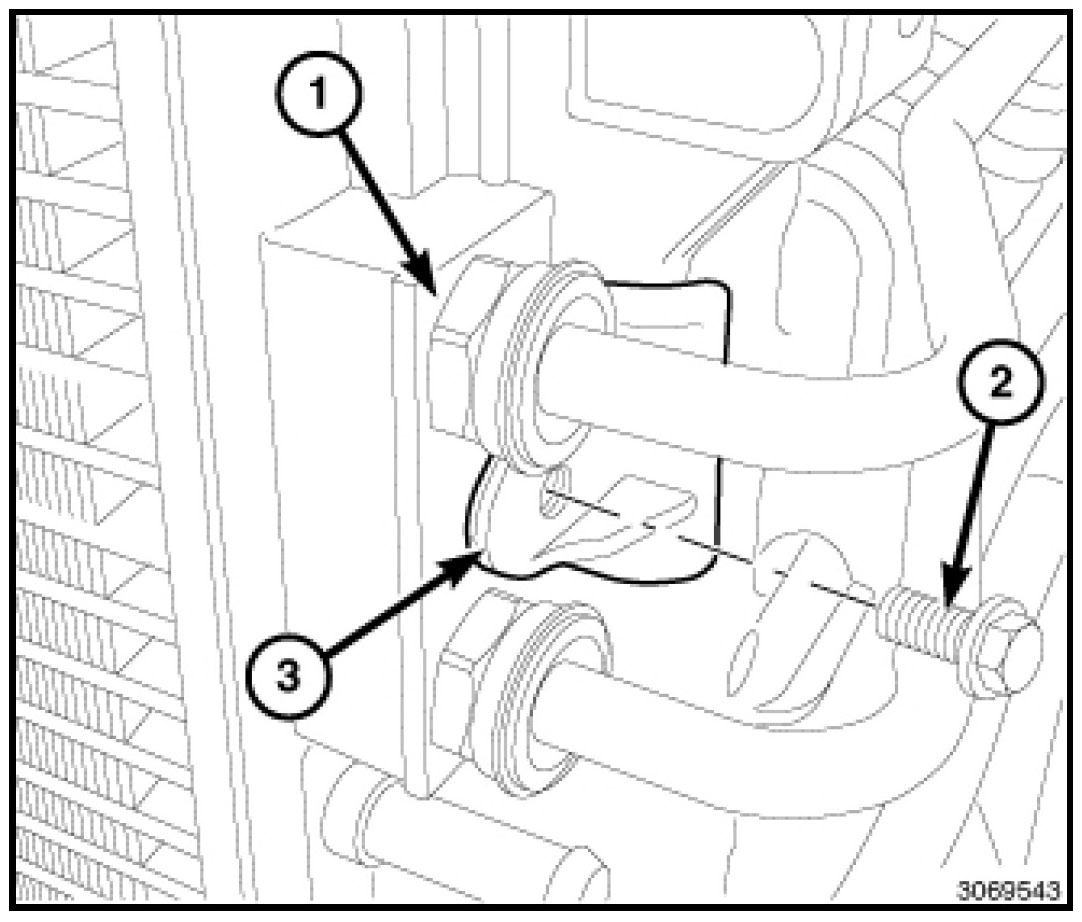

15. Remove the support bolt (2) located between the cooler lines.
16. Using a suitable hanger. Support the condenser and remove the right side upper mounting bolt.
17. Separate condenser assembly from radiator.
18. Tilt radiator toward engine and remove radiator from vehicle.
