Brakes - Front/Rear Brake Squeal (Police Vehicle Only)
NUMBER: 05-003-13GROUP: Brakes
DATE: February 28, 2013
THIS SERVICE BULLETIN IS ALSO BEING RELEASED AS RAPID RESPONSE
TRANSMITTAL (RRT) 13-015. ALL APPLICABLE SOLD AND UN-SOLD RRT VIN's
HAVE BEEN LOADED. TO VERIFY THAT THIS RRT SERVICE ACTION IS
APPLICABLE TO THE VEHICLE, USE VIP OR PERFORM A VIN SEARCH IN
TECHCONNECT. ALL REPAIRS ARE REIMBURSABLE WITHIN THE PROVISIONS OF
WARRANTY.
SUBJECT:
Front And/Or Rear Brake Noise (Squeal)
OVERVIEW
This bulletin involves changing front and rear brake pads to correct a brake squeal noise.
MODELS:
2013 (LD) Charger
NOTE:
This bulletin applies to vehicles in police fleet usage only (sales code AHB) built before November 29, 2012 (MDH 1129XX).
SYMPTOM/CONDITION:
The customer may experience a squealing noise during braking coming from the front and/or rear of the vehicle.
DIAGNOSIS:
If a customers VIN is listed in VIP or your RRT VIN list, perform the repair. For all other customers that describe the symptom/condition, perform the Repair Procedure.

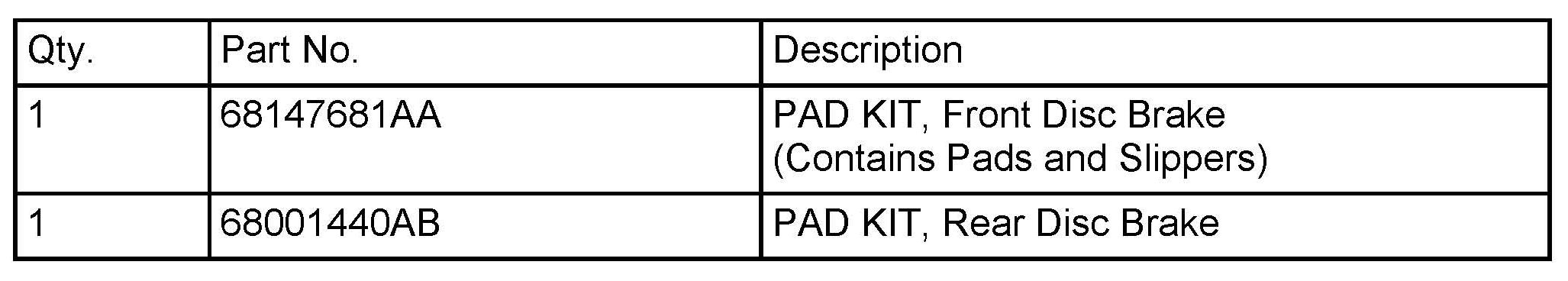

PARTS REQUIRED:
REPAIR PROCEDURE:
NOTE:
Be sure to review all warnings and cautions before proceeding, refer to the detailed information available in DealerCONNECT > TechCONNECT under: Service Info > 05- Brakes - Warning and 05- Brakes - Caution.
1. Raise the vehicle on a suitable hoist. Refer to the detailed service procedures available in DealerCONNECT > TechCONNECT under: Service Info > 04- Vehicle Quick Reference> Hoisting > Standard Procedure > Hoisting.
2. Remove and replace front brake pads (p/n 68147681AA). Refer to the detailed removal procedures available in DealerCONNECT > TechCONNECT under: Service Info > 05- Brakes > Brakes, Base > Hydraulic/Mechanical > Pads, Brake, Front > Removal/Installation.
3. Remove and replace rear brake pads (p/n 68001440AB). Refer to the detailed removal procedures available in DealerCONNECT> TechCONNECT under: Service Info > 05- Brakes > Brakes, Base > Hydraulic/Mechanical > Pads, Brake, Rear > Removal/Installation.
POLICY:
Reimbursable within the provisions of the warranty.

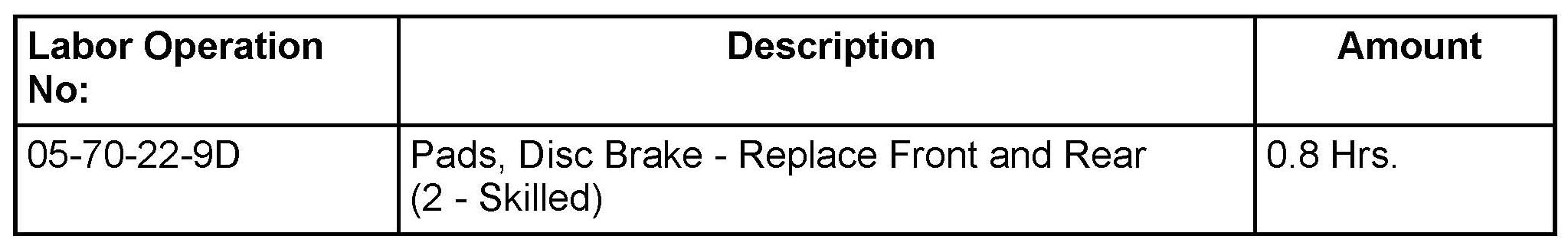

TIME ALLOWANCE:

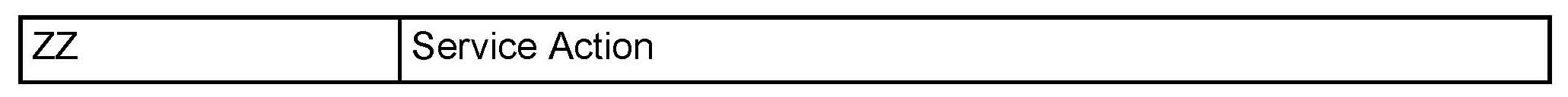

FAILURE CODE:
Disclaimer:
This bulletin is supplied as technical information only and is not an authorization for repair.
