Rear Bumper - Removal
Rear Bumper - Removal
Bumper
, Rear
REMOVAL
NOTE:

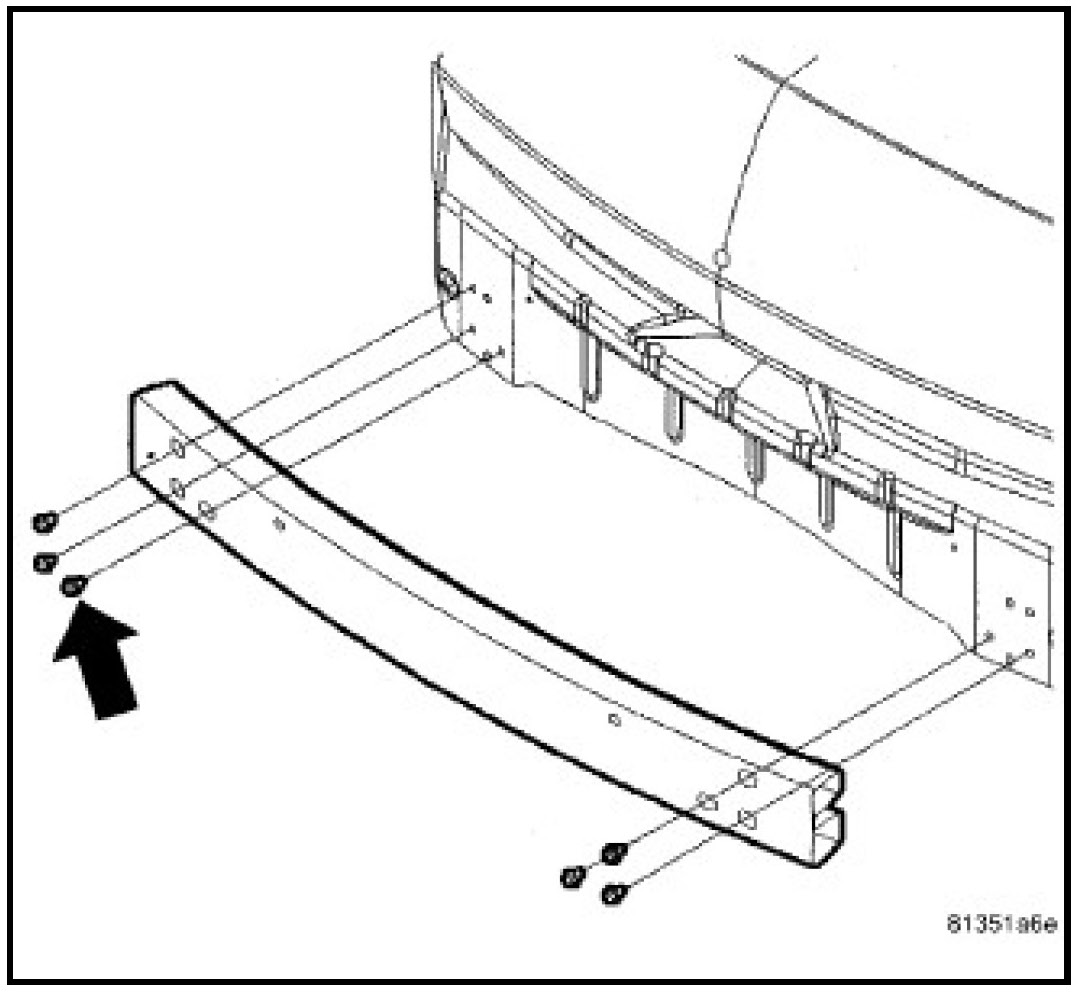

300 Shown. Magnum and Charger similar.
1.
Remove the fascia assembly.
2.
Remove the six nuts and washers and remove the
bumper
.
