Description







DESCRIPTION

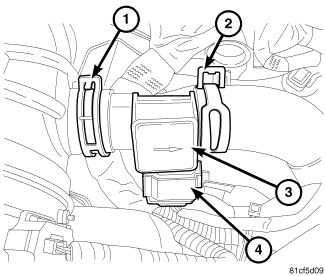

The mass air flow (MAF) sensor (3) is positioned between the air cleaner body outlet hose and the air pump supply hose on partial zero emission vehicles (PZEV).
