Accessory Drive Idler Pulley - Removal

REMOVAL










1. Raise vehicle on hoist.

2. Remove belt splash shield.

3. Remove accessory drive belt Serpentine Accessory Drive Belt - Removal.

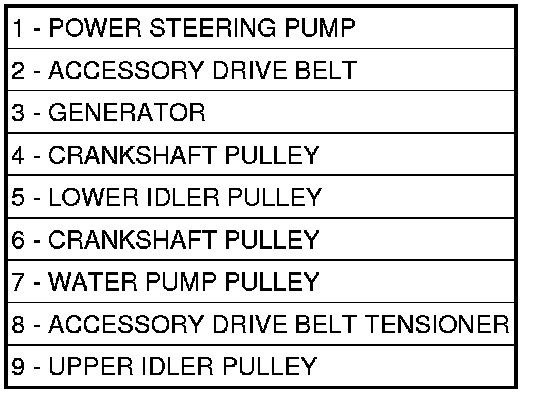

4. Remove idler pulley mounting bolt. Remove idler pulley (5 or 9).
