Lower Oil Pan

RWD LOWER






CAUTION: Engine assembly requires the use of a unique sealant that is compatible with engine oil. Using a sealant other than Mopar(R) Threebond Engine RTV Sealant may result in engine fluid leakage.

CAUTION: Following the application of Mopar(R) Threebond Engine RTV Sealant to the gasket surfaces, the components must be assembled within 20 minutes and the attaching fasteners must be tightened to specification within 45 minutes. Prolonged exposure to the air prior to assembly may result in engine fluid leakage.

1. Clean the upper and lower oil pan mating surfaces with isopropyl alcohol in preparation for sealant application.
2. Apply a 2 to 3 mm wide bead of Mopar(R) Threebond Engine RTV Sealant (1) to the lower oil pan as shown.






CAUTION: Following assembly, the Mopar(R) Threebond Engine RTV Sealant must be allowed to dry for 45 minutes prior to adding oil and engine operation. Premature exposure to oil prior to drying may result in engine fluid leakage.

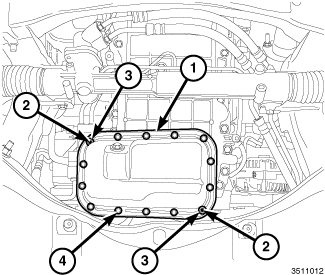

3. Install two studs (2) into the upper oil pan flange.
4. Install the lower oil pan (1) to the upper oil pan with twelve bolts (4) and two nuts (3) tightened to 11 Nm (8 ft. lbs.).





5. Position the belly pan and install the retainers (1).
6. Lower the vehicle.
7. Fill the crankcase with the specified type and amount of engine oil .
8. Start and run the engine until it reaches normal operating temperature and check for leaks.
