Engine Specifications






SPECIFICATIONS

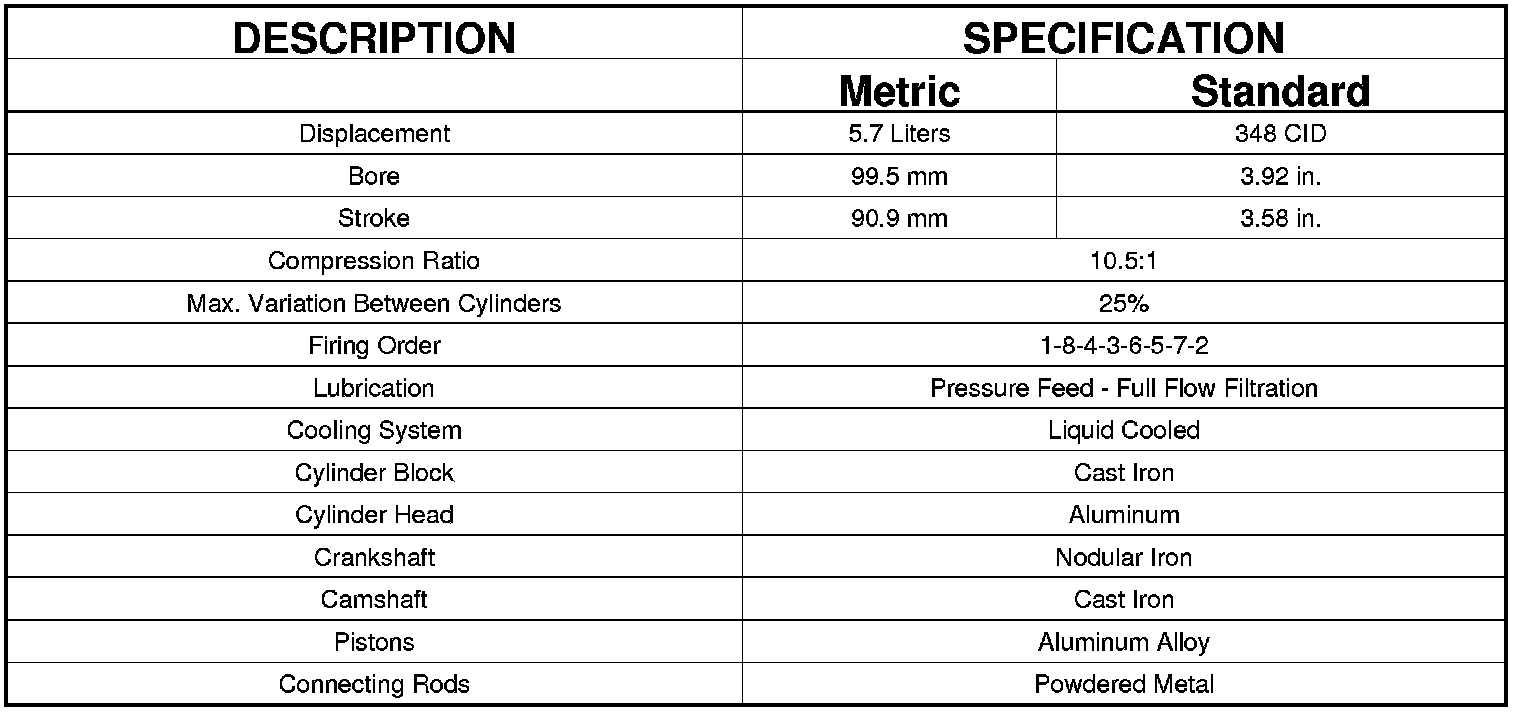

Eagle Engine - 90° V-8 OHV

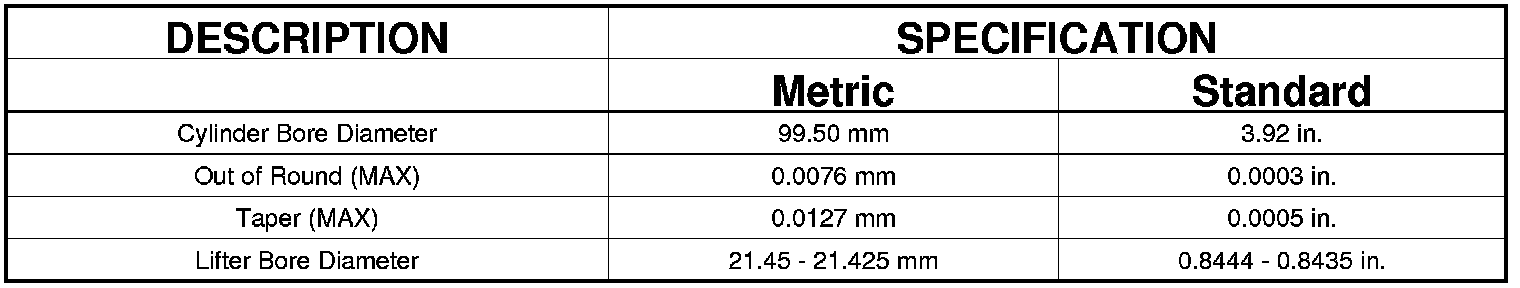

CYLINDER BLOCK

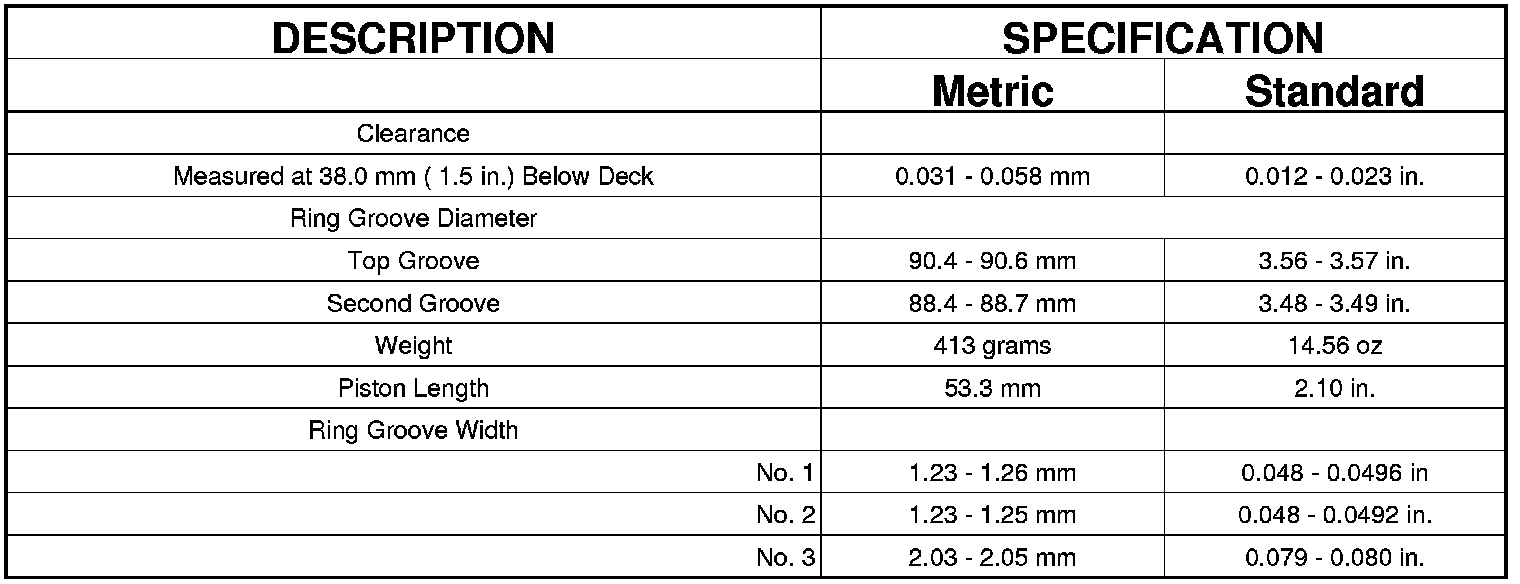

PISTONS






PISTON PINS

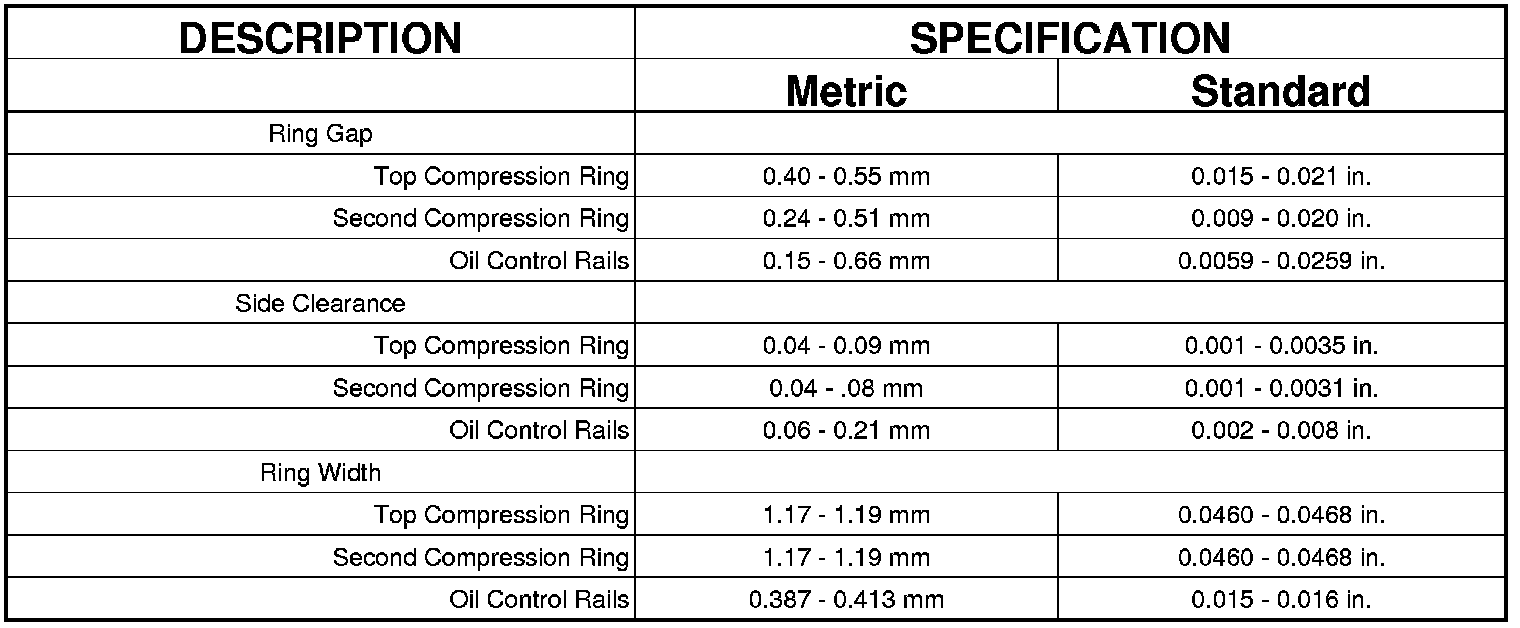

PISTON RINGS

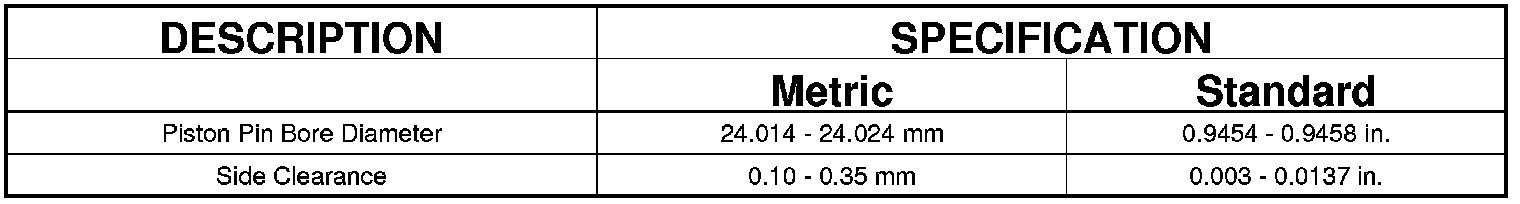

CONNECTING RODS

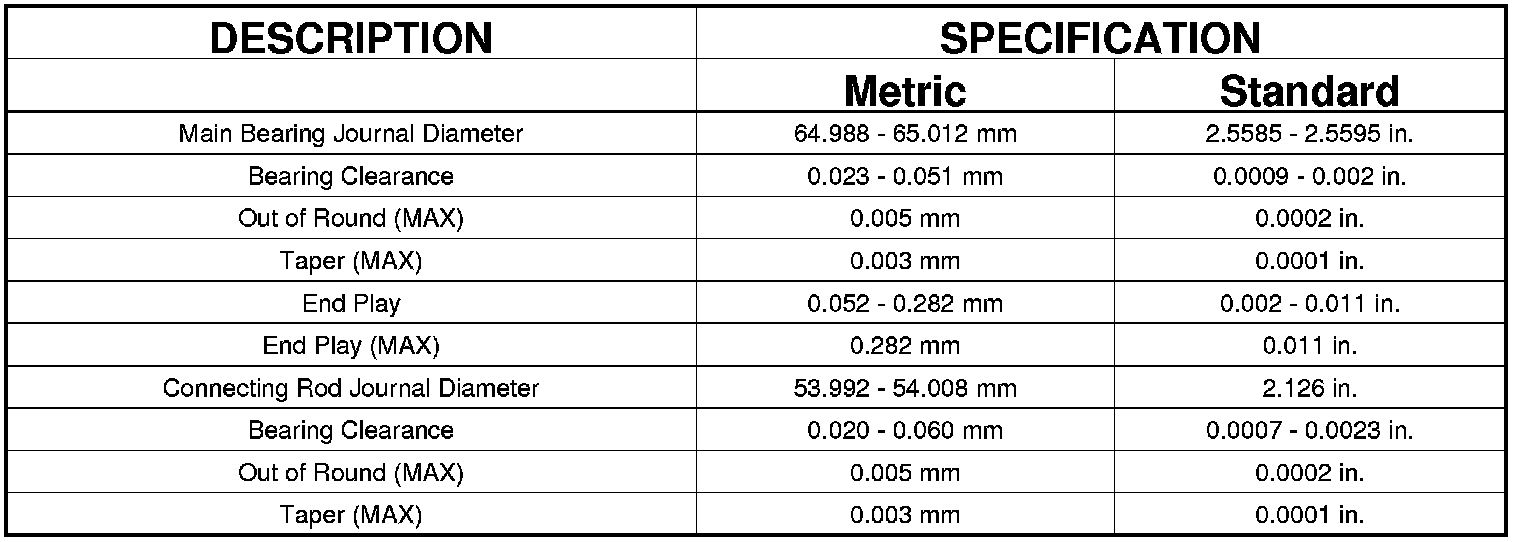

CRANKSHAFT

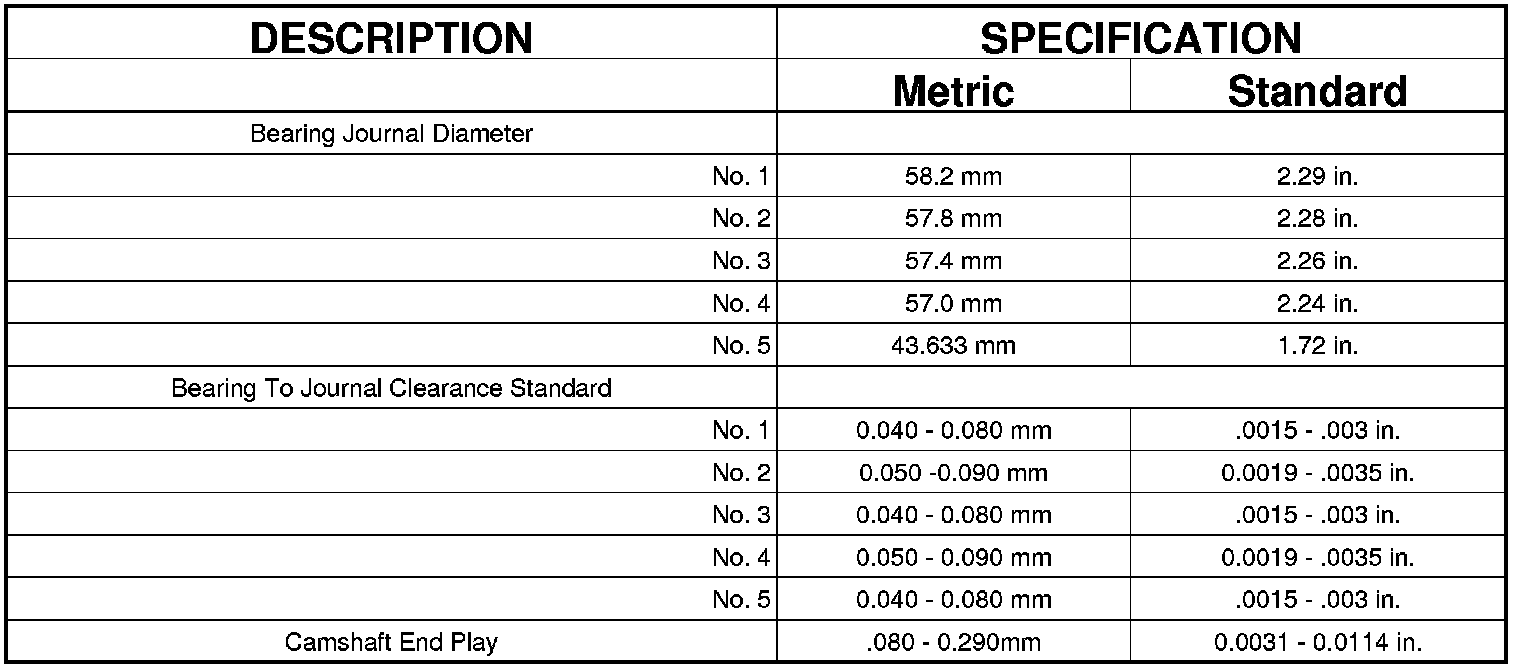

CAMSHAFT

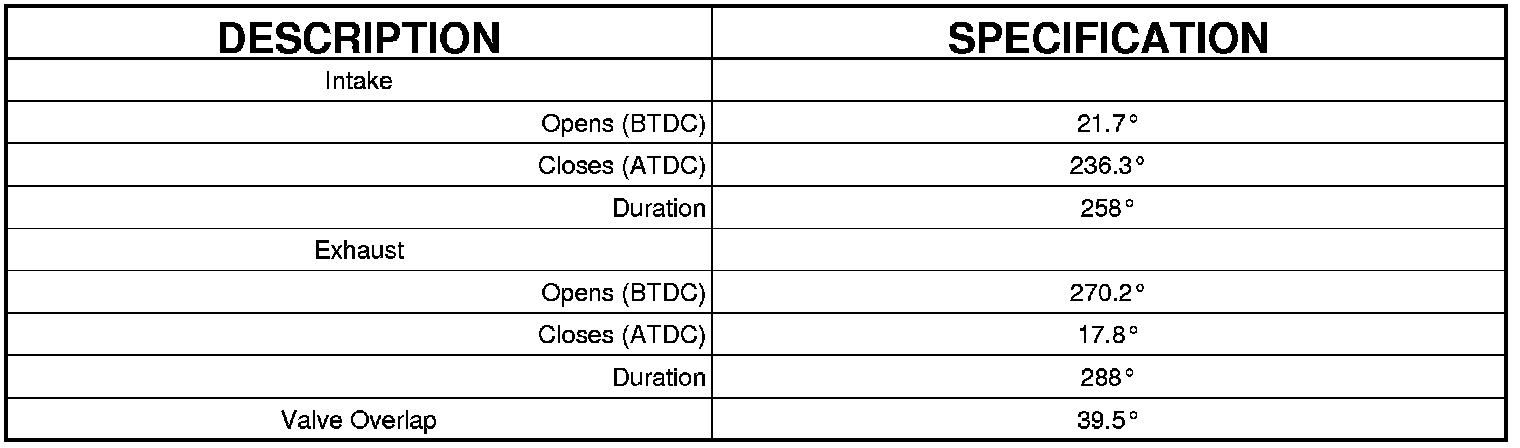

VALVE TIMING

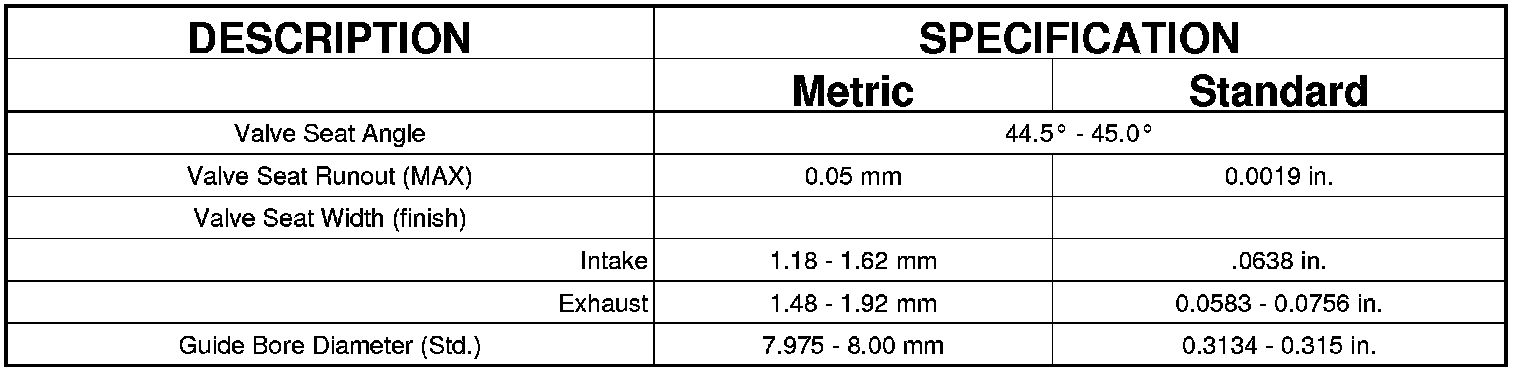

CYLINDER HEAD

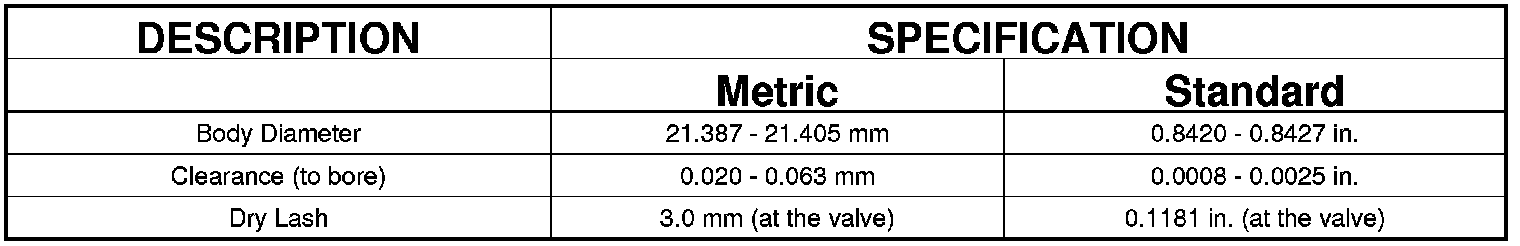

HYDRAULIC TAPPETS

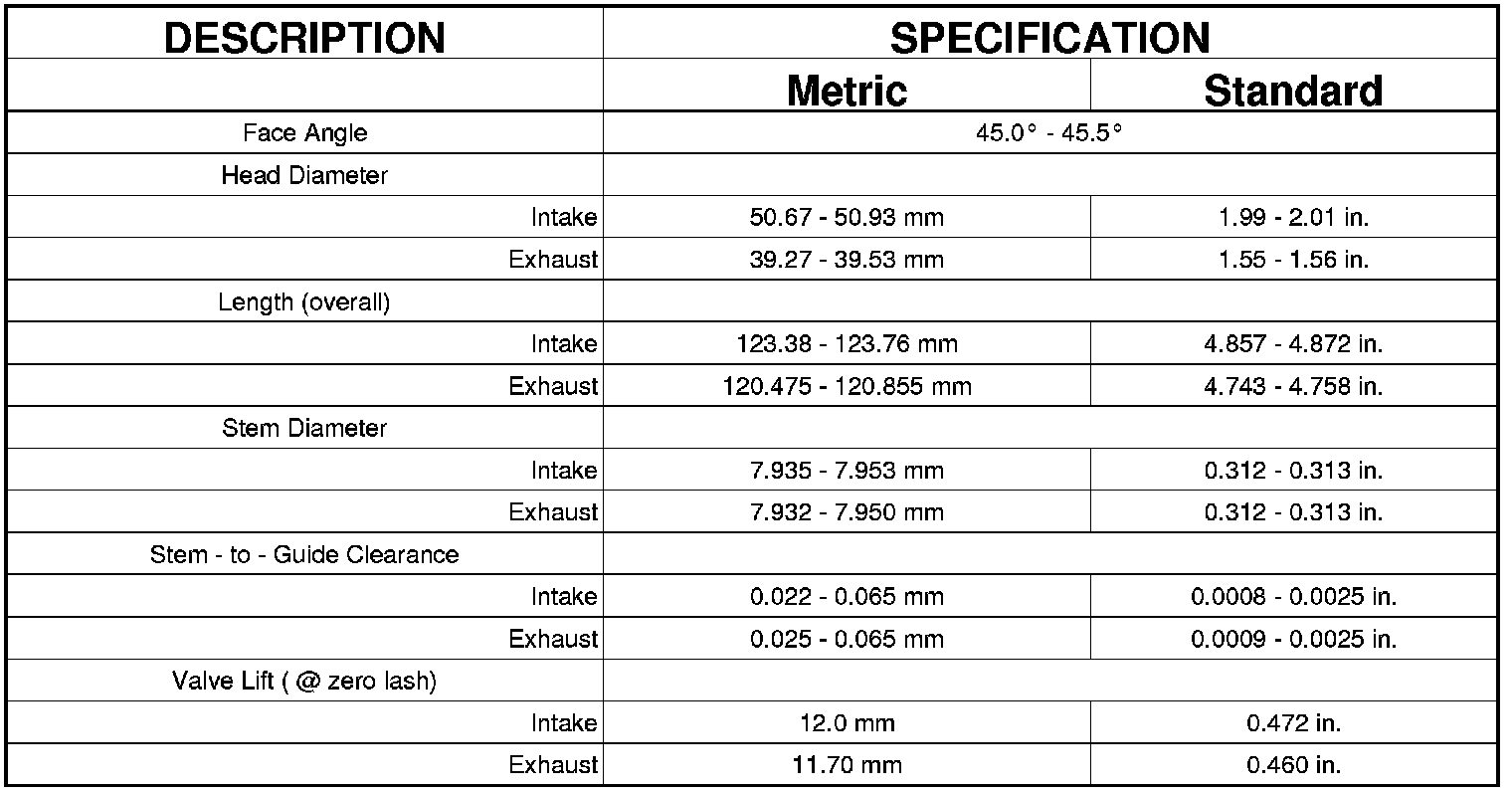

VALVES

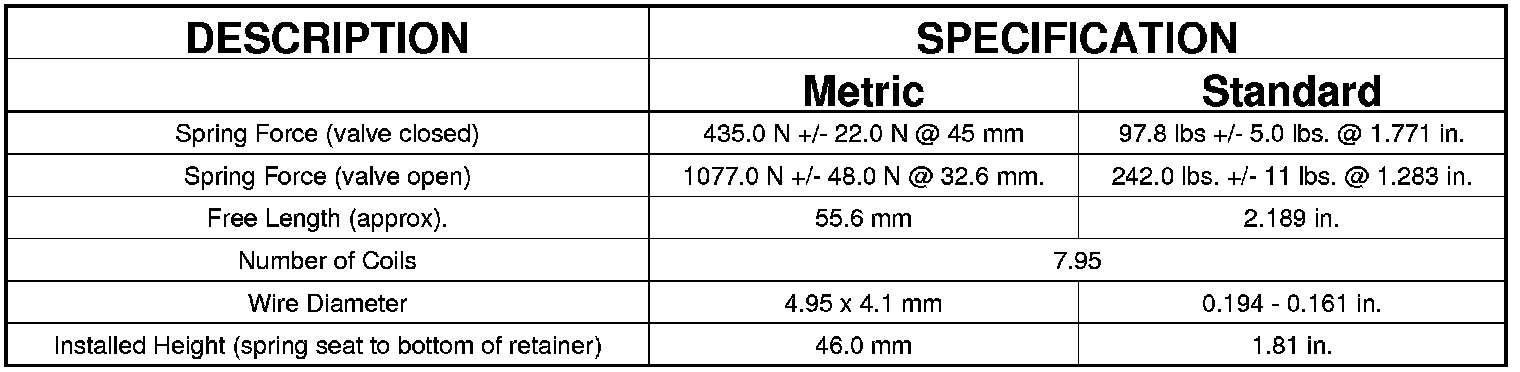

VALVE SPRING






OIL PUMP

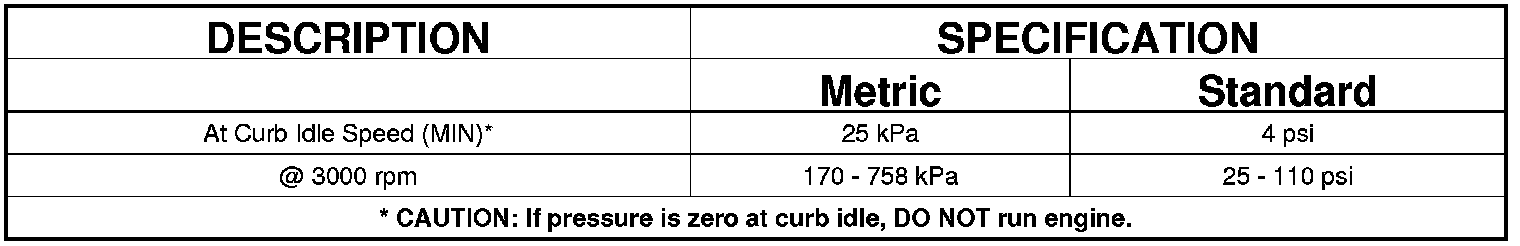

OIL PRESSURE
