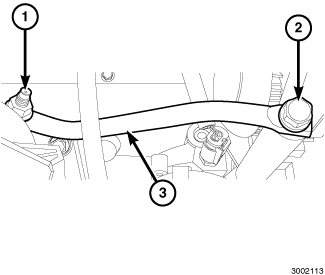

Engine - Removal






REMOVAL

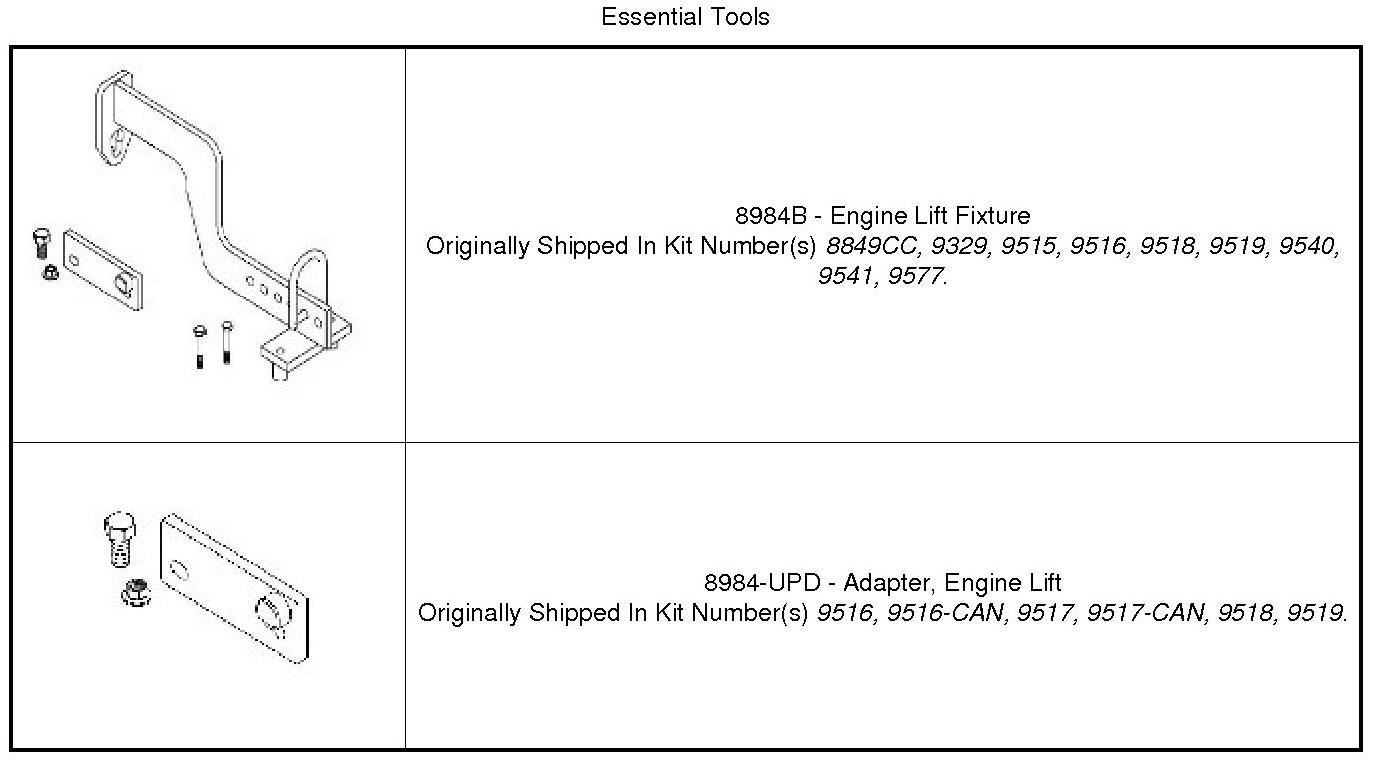

Special Tools:










1. Remove the hood Hood - Removal.
2. Remove the cowl panel cover (1) Cowl Panel Cover - Removal.
3. Remove the strut tower support (6).

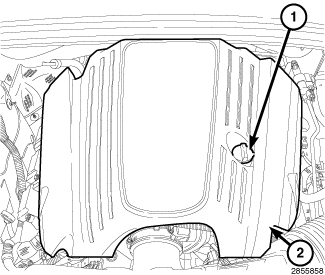

4. Lift the engine cover retaining grommets off the ball studs and remove the engine cover (2).
5. Perform the fuel system pressure release procedure Service and Repair.





6. Disconnect and isolate the negative battery cable (1).






NOTE: Remove the intake manifold and throttle body as an assembly.

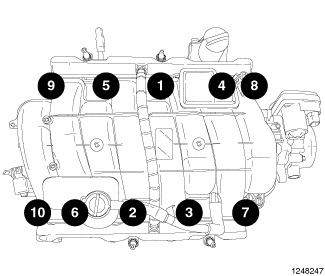

7. Remove the intake manifold Intake Manifold - Removal.






NOTE: The engine must be at room temperature before removing the oil control valve.

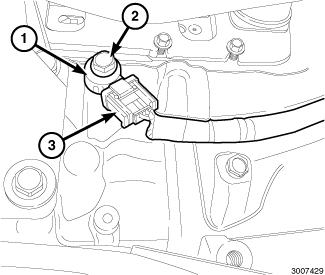

8. Disconnect the oil control valve electrical connector (1).
9. Remove the oil control valve retaining bolt (2).
10. Rotate the oil control valve (3) to break the seal then pull the oil control valve straight out.

CAUTION: Do not let the tensioner arm snap back to the freearm position, sever damage may occur to the tensioner.

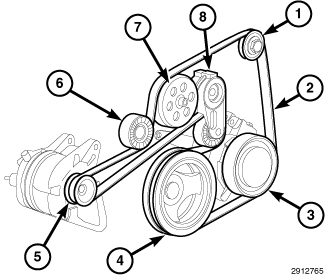

11. Rotate the accessory drive belt tensioner (8) clockwise until it contacts the stop and remove the accessory drive belt (2), then slowly rotate the tensioner into the freearm position.





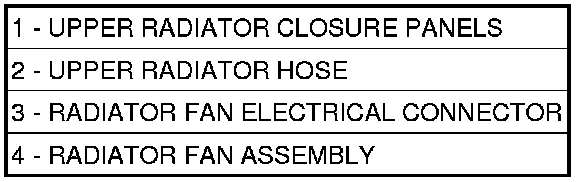

12. Remove the cooling fan (1) Cooling Fan - Removal.





13. Raise and support the vehicle Maintenance.
14. Remove the belly pan retainers (1) and remove the belly pan.
15. Drain the cooling system Service and Repair.
16. Drain the engine oil Service and Repair.





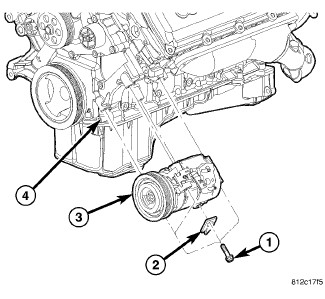

17. Remove the A/C compressor (3) A/C Compressor - Removal.






NOTE: Left side shown, right side similar.

18. Remove both left/right engine mount heat shield (4) retaining nuts (3) and remove the heat shields.
19. Remove both left/right engine mount to frame retaining bolts (2).
20. Disconnect the transmission oil cooler lines from their retainers at the oil pan.










21. Remove the lower radiator hose (1).






NOTE: Two knock sensors are used. Each sensor is bolted to the outside of the engine block below the exhaust manifold.

NOTE: Left side shown, right side similar.

22. Remove the heat shields from both knock sensors (shield snaps on/off sensor).

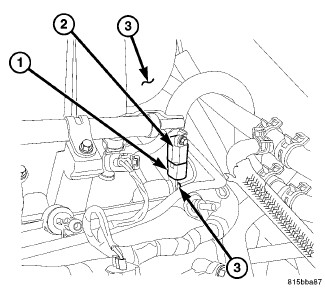

23. Disconnect the knock sensor electrical connectors (3).

CAUTION: When separating the catalytic converters from the manifolds, disconnect the oxygen sensor connectors. Allowing the catalytic converters hanging from the oxygen sensor wires damages the harness and/or sensors.






NOTE: Left side shown, right side similar.

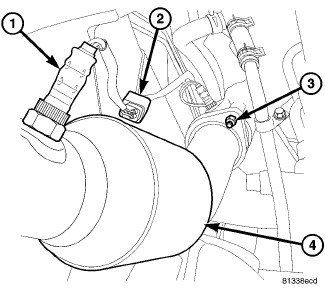

24. Disconnect all oxygen sensor electrical connectors (2).
25. Saturate all exhaust bolts and nuts (3) with Mopar(R) Rust Penetrant. Allow five minutes for penetration.
26. Remove the both catalytic converter to manifold flange nuts (3) and separate the catalytic converters (4) from the exhaust manifolds.





27. Remove the starter motor (1) heat shield (4).
28. Disconnect the starter wires, remove the starter motor retaining bolts (2) and remove the starter (1) Starter - Removal.






NOTE: The Crankshaft Position (CKP) sensor is located at the right-rear side of the engine block.

29. Remove the CKP sensor electrical connector (1).





30. Remove the generator support bracket to engine mount retaining nut (1).
31. Remove the generator support bracket retaining bolt (2) and remove the support bracket (3).
32. Lower the vehicle.





33. Unsnap the plastic insulator cap from the B+ output terminal.
34. Remove the B+ terminal mounting nut at the rear of the generator and remove the B+ terminal.
35. Depress the field wire connector tab at the rear of the generator and disconnect the field wire connector.

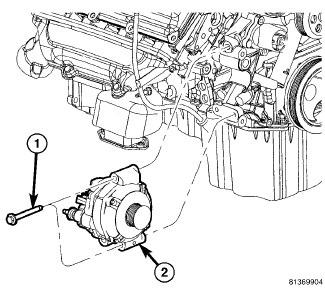

36. Remove the two generator retaining bolts (1) and remove the generator (2).





37. Remove the nut (1) from the front section of the A/C liquid line (2) to the rear section of the liquid line (3), separate the lines, remove and discard the dual plane seal.
38. Install plugs or tape over the opened liquid line fittings.
39. Remove the front section of the A/C liquid line (2) from the engine compartment.





40. Remove the nut (1) from the front section of the A/C suction line (2) to the rear section of the suction line (3), separate the lines, remove and discard the dual plane seal.
41. Install plugs or tape over the opened suction line fittings.
42. Remove the front section of the A/C suction line (2) from the engine compartment.





43. Remove the oil pressure sensor electrical connector (1).
44. Remove the oil temperature sensor electrical connector.










45. Remove upper radiator hose (2).





46. Remove the heater tube retaining bolt (1).
47. Remove the coolant temperature (ECT) sensor electrical connector (2).
48. Lift the heater tube (3) out of the water pump and remove the heater tube from the vehicle.





49. Disconnect the camshaft position (CMP) sensor electrical connector (4).

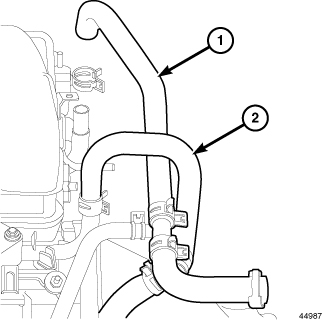

50. Remove the heater hoses (1,2).






NOTE: It is not necessary to remove the hoses from the coolant bottle for coolant bottle removal.

51. Remove the coolant bottle retaining bolts (2) and position the coolant bottle (1) aside.





52. Remove all ignition coil electrical connectors (1) and position the harness aside.

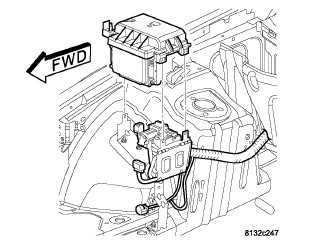

53. Remove the Power Distribution Center (PDC) and mounting bracket.
54. Unfasten the wire harness mounted on the right hand inner fender panel and position aside.






NOTE: The ignition capacitor (2) is attached to the left rear corner of the intake manifold (3).

55. Remove the ignition capacitor (2) electrical connector (1).
56. Remove the ground wires from the rear of each cylinder head.
57. Raise and support the vehicle Maintenance.

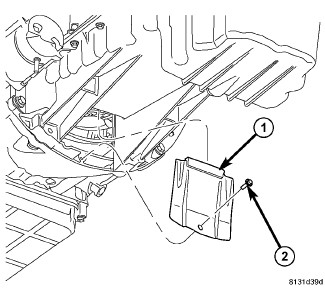

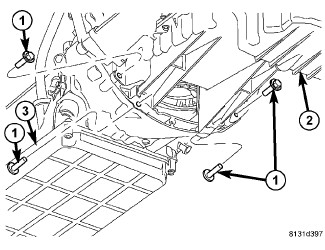

58. Remove the inspection cover (1).





59. Rotate the crankshaft in clockwise direction until converter bolts (1) are accessible and remove the flexplate to converter bolts (1).

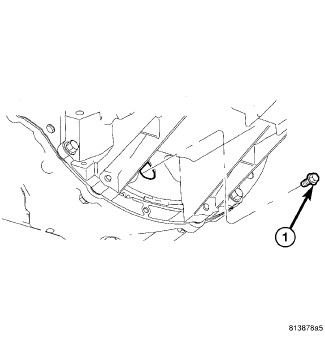

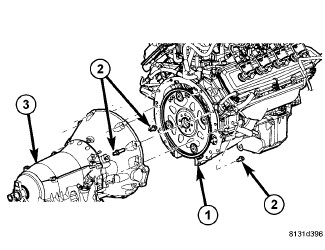

60. Remove the oil pan to transmission bolts (1).





61. Remove the transmission bell housing to engine block bolts (2).

CAUTION: While carefully separating the engine from the transmission and removing the engine from the vehicle, constant checks must be made to ensure no damage to other components or wiring harnesses occur throughout the removal procedure.





62. Lower the vehicle.
63. Using a suitable jack, support the transmission.

NOTE: Do not use air tools to install engine lift fixture.

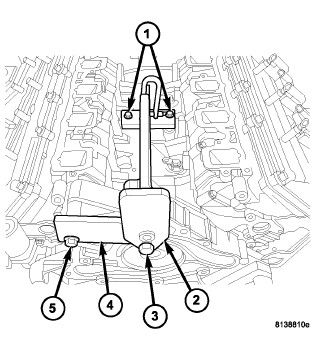

64. Install the engine lift fixture (2) and adapter (4).
65. Using a suitable engine hoist, separate the engine from the transmission and carefully remove the engine from the engine compartment.
66. Secure the engine onto a suitable engine stand.
