Windshield Washer Hose: Service and Repair

STANDARD PROCEDURE - DISCONNECTING WASHER HOSE QUICK-CONNECT FITTINGS

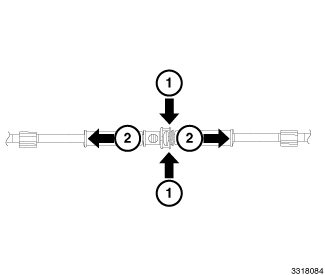

A molded plastic quick-connect fitting joins the front and rear sections of the washer hose tubes. To disconnect this fitting:

1. Squeeze the two solid sides (not the open sides) of the female half of the quick-connect fitting at the outer edge.
2. While still squeezing the female half of the fitting, pull the two washer hose tubes away from each other.
