Heated Glass - Description

DESCRIPTION

CAUTION: Grid lines can be damaged or scraped off with sharp instruments. Care should be taken in cleaning glass or removing foreign materials, decals or stickers. Normal glass cleaning solvents or hot water used with rags or toweling is recommended.

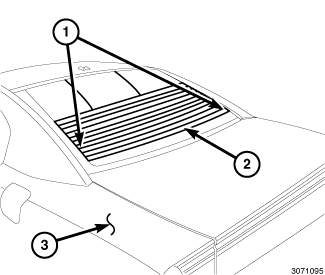

The rear window defogger system, also known as the Electric Back Light (EBL), consists of two vertical bus bars (1) linked by a series of grid lines (2) fired onto the inside surface of the rear window (3).

The EBL system is turned on or off by a momentary switch located in the switchbank, or by using the control located in the U-Connect Touch (TM) screen module Rear Defogger Switch - Description.

Circuit protection is provided by a fuse in the Power Distribution Center (PDC).
