Differential Carrier Bearing - Removal

REMOVAL

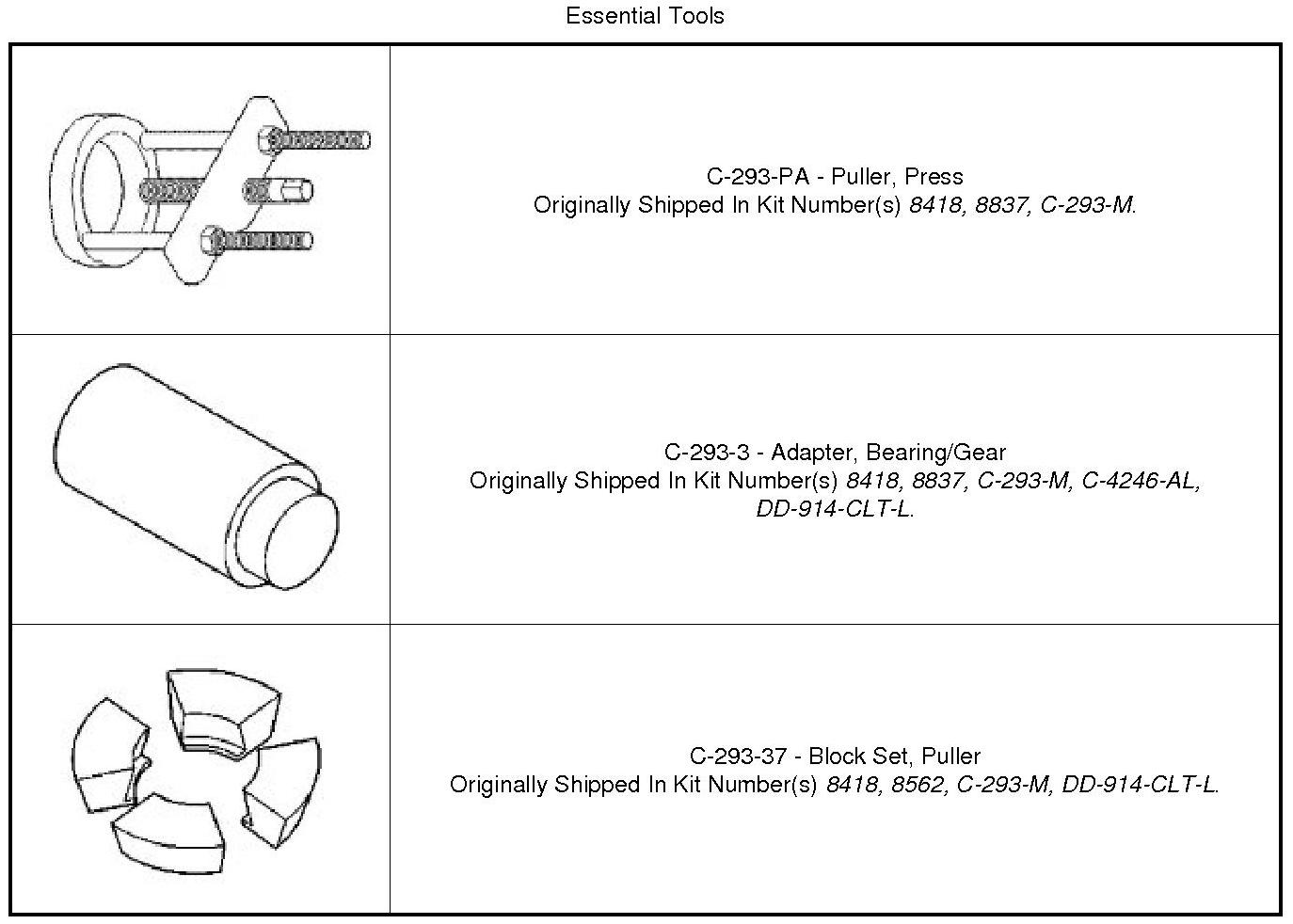

Special Tools:






1. Remove the differential case assembly Differential Carrier - Removal

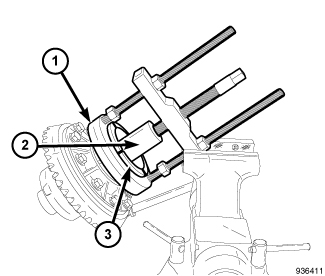

2. Remove the Differential Bearings from the case with Puller Press (1), Bearing/Gear Adapter (2) and Adapter Blocks (3).
