Differential Carrier Bearing - Installation

INSTALLATION

WARNING: Use tongs or welding gloves when handling heated components. Failure to follow these instructions will result in personal injury.

CAUTION: Use only a bearing heater/hot plate and follow manufacturer's instructions. Heat components to 100 - 177 Celsius (212° Min. - 350° Max Fahrenheit). Never use an open flame to heat components. Never leave components on heater for an extended amount of time. If component is discolored after heating, the component has been overheated and must not be used. Failure to follow these instructions will result in component damage.

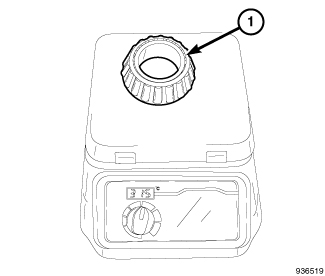

1. Heat the Differential Bearings with a bearing heater.
2. Immediately after heating, install the Differential Bearings.
