Differential Carrier - Installation

INSTALLATION





1. Apply a light coat of gear lubricant to differential bearings and bearing cups.

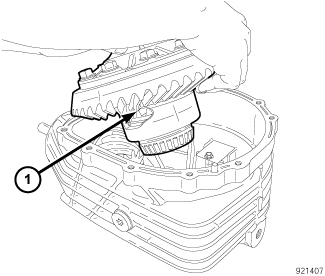

2. Install the Differential Case (1).





3. Install the Case Half (2) and the Case Half Bolts (1).

4. Verify the turning torque and differential bearing preload are within acceptable limits. If the turning torque and differential bearing preload measurements are not within specifications, or if a new ring and pinion gear have been installed, perform the pinion depth adjustment and differential side bearing preload and backlash adjustment procedures . Rear Axle - G648 Adjustments
5. Install the Rear Axle Assembly Installation
