Thermo Bypass Valve - Removal

REMOVAL










1. Raise and support vehicle.

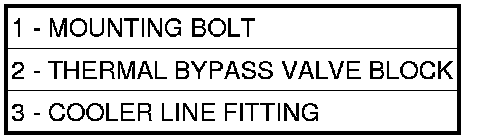

2. Remove front transmission cooler lines from the thermal bypass valve block (2).
3. Remove rear transmission cooler lines from the thermal bypass valve block (2).
4. Remove thermal bypass valve block (2).
